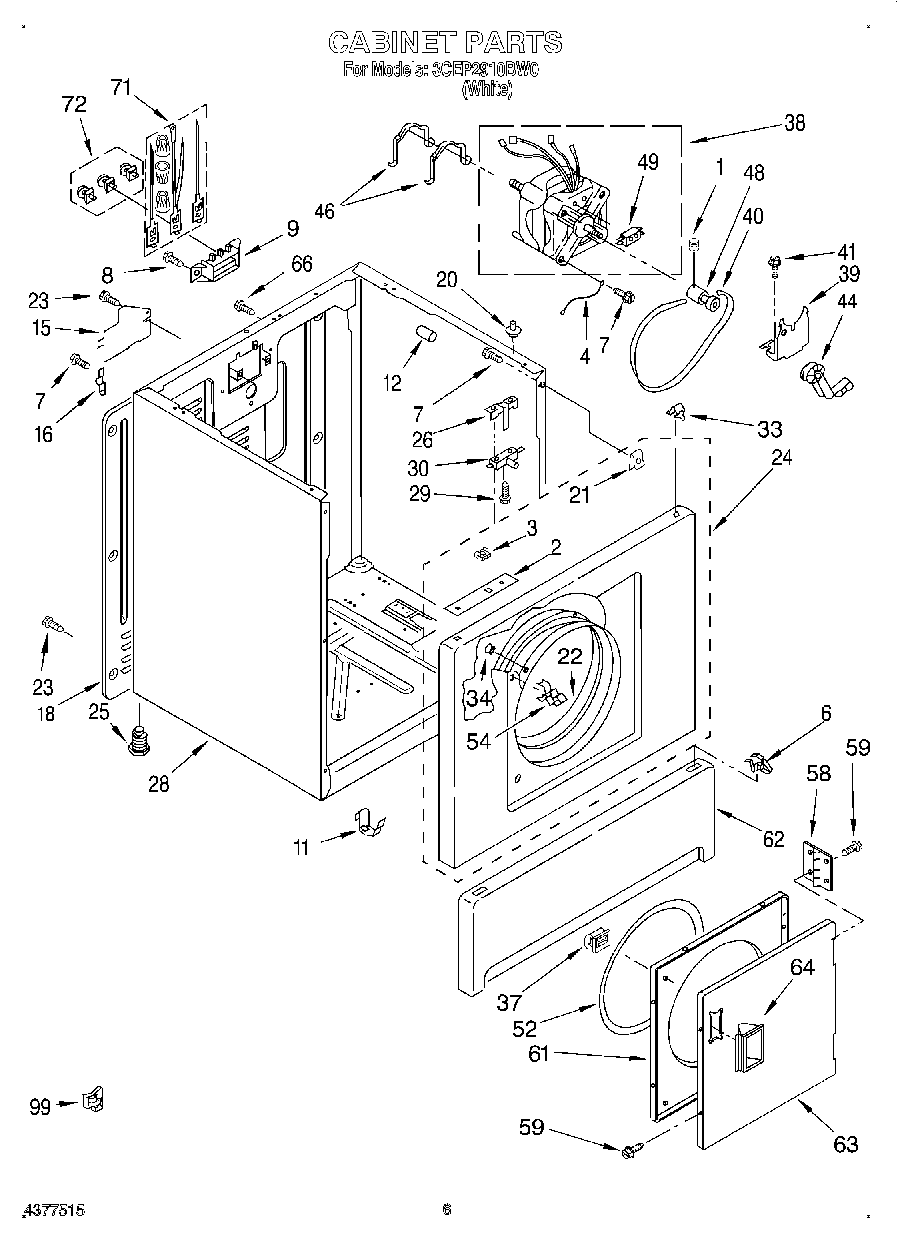

3CEP2910BW0 04 – CABINET

Products

PositionProduct
1SCREW, SET
2Bracket, Front Top Lock
3WP90406 Whirlpool Nut
4Wire, Ground (Motor)
6WP3388229 Whirlpool Dryer Spring Clip
7SCREW
8WP308685 Whirlpool Microwave Screw
9WP3397659 Whirlpool Terminal Block
11WP297092 Whirlpool Clip
12W10491983 Whirlpool Tine Tip
15W11539855 Whirlpool Refrigerator Pump
16WP8066217 Whirlpool Hinge
18280040 Whirlpool Rear Panel
20Locator, Top
21WP98234 Whirlpool Nut
22279264 Whirlpool Bearing and Seal Kit
23WP693995 Whirlpool Screw
24Front Panel Assembly (White)
2549621 Whirlpool Leveling Feet
26WP691581 Whirlpool Actuator
28Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
29WP98129 Whirlpool Screw
30W10820036 Whirlpool Door Switch Kit
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
37WP3389441 Whirlpool Door Catch
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
48W11618508 Whirlpool Drive Motor
49279827 Whirlpool Dryer Drive Motor
52W11613302 Whirlpool Door Seal
54279570 Whirlpool Dryer Door Latch Kit
58WP348023 Whirlpool Hinge
59WP694091 Whirlpool Screw
61280077 Whirlpool Door
62Panel, Toe (White)
63WP348205 Whirlpool Door
64WP686711 Whirlpool Door Handle
66W10850756 Whirlpool Screw
71279318 Whirlpool Terminal
72279393 Whirlpool Terminal Block Screw and Nut Kit
99Clip, Harness (Rear Bulkhead Area)
