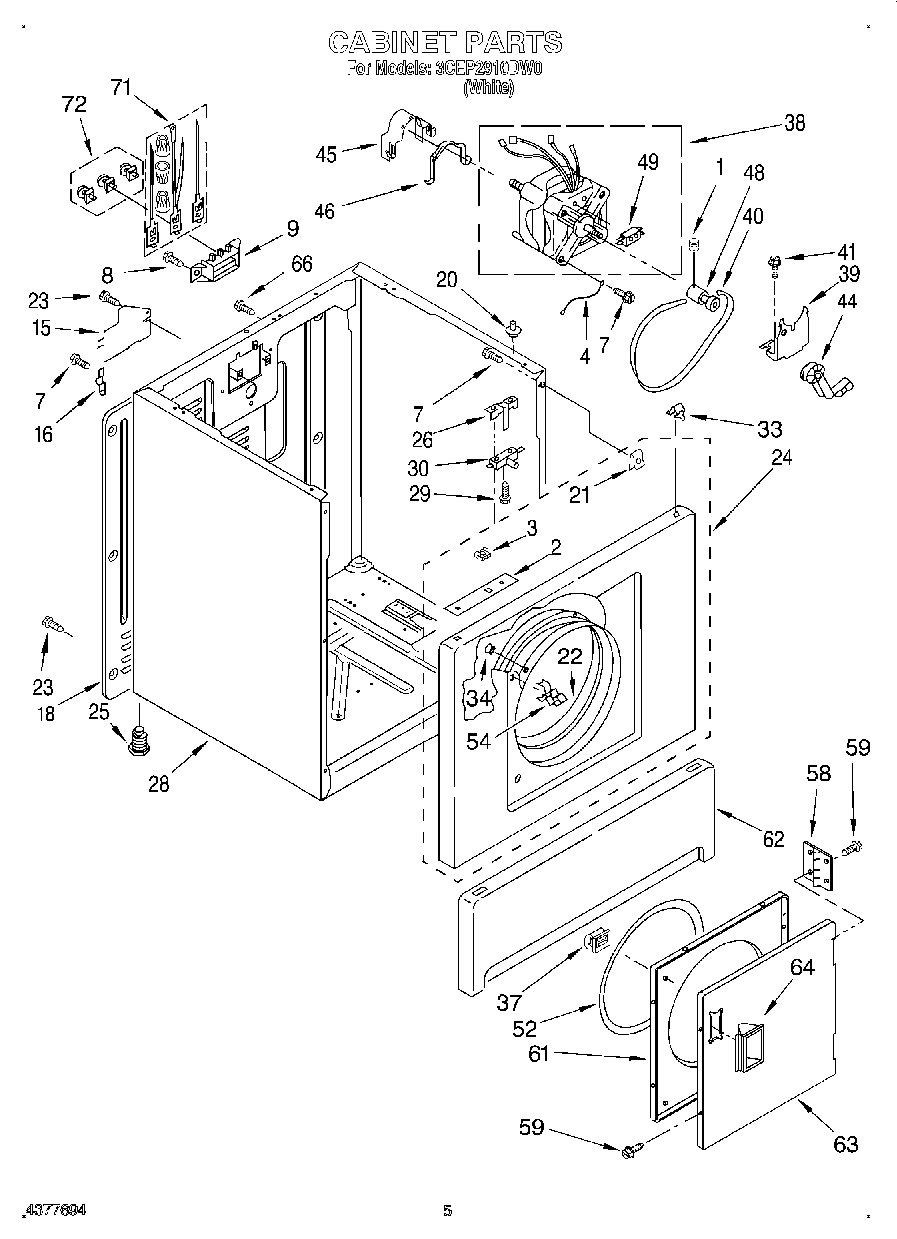

| 1 | SCREW, SET |
| 2 | Bracket, Front Top Lock |
| 3 | WP90406 Whirlpool Nut |
| 4 | Wire, Ground (Motor) |
| 7 | SCREW |
| 8 | WP308685 Whirlpool Microwave Screw |
| 9 | WP3397659 Whirlpool Terminal Block |
| 15 | W11539855 Whirlpool Refrigerator Pump |
| 16 | WP8066217 Whirlpool Hinge |
| 18 | 280040 Whirlpool Rear Panel |
| 20 | Locator, Top |
| 21 | WP98234 Whirlpool Nut |
| 22 | 279264 Whirlpool Bearing and Seal Kit |
| 23 | WP693995 Whirlpool Screw |
| 24 | Front Panel Assembly (White) |
| 25 | 49621 Whirlpool Leveling Feet |
| 26 | WP691581 Whirlpool Actuator |
| 28 | Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57)) |
| 29 | WP98129 Whirlpool Screw |
| 30 | W10820036 Whirlpool Door Switch Kit |
| 33 | WP18776 Whirlpool Lock |
| 34 | 279220 Whirlpool Clip |
| 37 | WP3389441 Whirlpool Door Catch |
| 39 | WP348780 Whirlpool Base |
| 40 | 341241 Whirlpool Dryer Drum Belt |
| 41 | 3400500 Whirlpool Screw |
| 44 | WP691366 Whirlpool Dryer Idler Pulley Assembly |
| 45 | WP3404162 Whirlpool Clamp |
| 46 | WP660658 Whirlpool Clamp |
| 48 | W11618508 Whirlpool Drive Motor |
| 49 | 279827 Whirlpool Dryer Drive Motor |
| 52 | W11613302 Whirlpool Door Seal |
| 54 | 279570 Whirlpool Dryer Door Latch Kit |
| 58 | WP348023 Whirlpool Hinge |
| 59 | WP694091 Whirlpool Screw |
| 61 | 280077 Whirlpool Door |
| 62 | Panel, Toe (White) |
| 63 | WP348205 Whirlpool Door |
| 64 | WP686711 Whirlpool Door Handle |
| 66 | W10850756 Whirlpool Screw |
| 71 | 279318 Whirlpool Terminal |
| 72 | 279393 Whirlpool Terminal Block Screw and Nut Kit |
