3CEP2920DW0 01 – SECTION

3CEP2920DW0 01 – SECTION

Written by

in

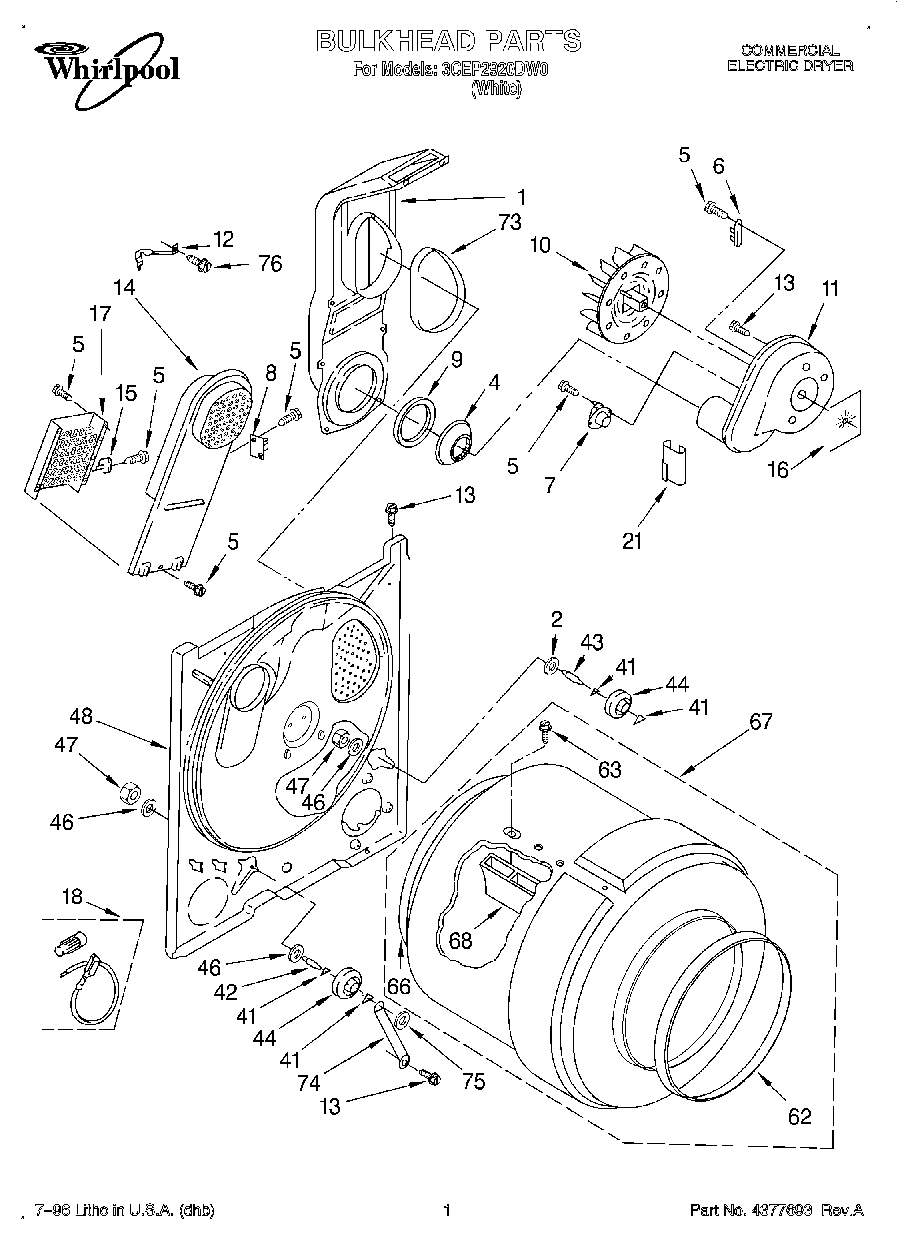

3CEP2920DW0 01 – SECTION

Products

Position	Product
	Instructions, Installation
	Golden Harvest
	Golden Harvest (Uncut)
	WPL LIT4377693
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	Paint, Spray 13 Oz. (Avocado)
	Enamel, New Avocado (1 Qt. Uncut)
	WPL LIT348772
	Label, Wiring Diagram
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	279505 Whirlpool Chute
2	WP3388703 Whirlpool Washer
4	W11233063 Whirlpool Shield Assembly
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	WP3387137 Whirlpool Thermostat
8	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
9	W11415783 Whirlpool Seal
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3390291 Whirlpool High Limit Thermostat
16	Seal, Blower
17	Heater Element
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
21	686889 Whirlpool Pad
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	Bulkhead
62	WP3394508 Whirlpool Bearing Ring
63	WPW10109200 Whirlpool Screw
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
73	SEAL
74	Bracket, Support
75	WP90296 Whirlpool Clip
76	WP489463 Whirlpool Refrigerator Screw
