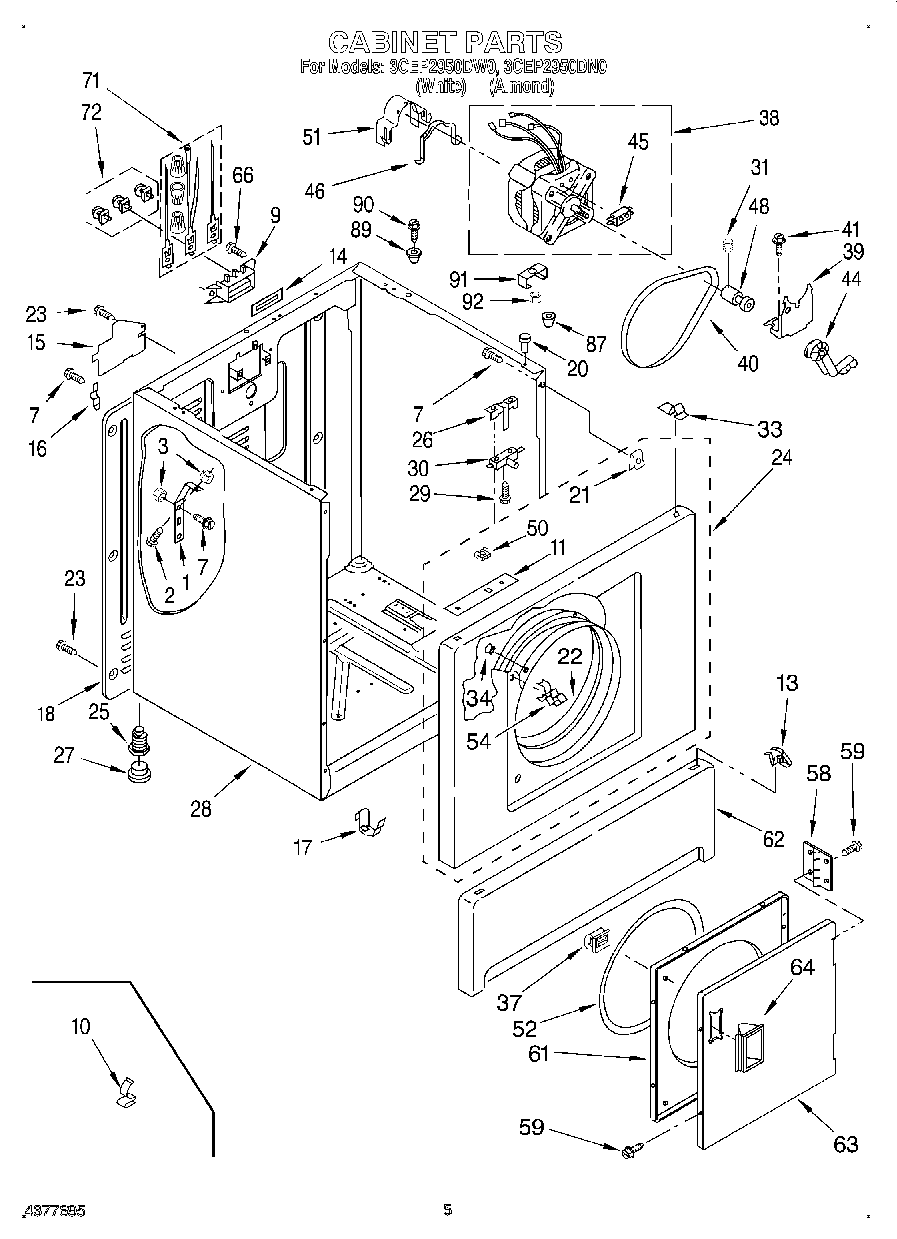

3CEP2950DW0 03 – SECTION

3CEP2950DW0 03 – SECTION

Written by

in

3CEP2950DW0 03 – SECTION

Products

PositionProduct
1Bracket, Top Lock
2BOLT, 5/16-18 X 2 3/4
7SCREW
9279320 Whirlpool Dryer Rear Terminal Block Kit
108528351 Whirlpool Clip
11Bracket, Front Top Lock
13WP3388229 Whirlpool Dryer Spring Clip
1418849 Whirlpool Pad
15W11539855 Whirlpool Refrigerator Pump
16WP8066217 Whirlpool Hinge
17WP297092 Whirlpool Clip
18280040 Whirlpool Rear Panel
20Locator, Top
21WP98234 Whirlpool Nut
22279264 Whirlpool Bearing and Seal Kit
23WP693995 Whirlpool Screw
24Front Panel Assembly (Almond)
24Front Panel Assembly (White)
26WP691581 Whirlpool Actuator
27WP3391943 Whirlpool Foot Boot
2749621 Whirlpool Leveling Feet
28Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
28Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
29WP98129 Whirlpool Screw
30W10820036 Whirlpool Door Switch Kit
31SCREW, SET
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
37WP3389441 Whirlpool Door Catch
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
44WP691366 Whirlpool Dryer Idler Pulley Assembly
45279827 Whirlpool Dryer Drive Motor
46WP660658 Whirlpool Clamp
48W11618508 Whirlpool Drive Motor
50WP90406 Whirlpool Nut
51WP3404162 Whirlpool Clamp
52W11613302 Whirlpool Door Seal
54279570 Whirlpool Dryer Door Latch Kit
58WP348023 Whirlpool Hinge
59WP694091 Whirlpool Screw
61280077 Whirlpool Door
62Panel, Toe (White)
62Panel, Toe (Almond)
63Door, Front (Almond)
63WP348205 Whirlpool Door
64WP686711 Whirlpool Door Handle
64Handle, Door (Almond)
66W10850756 Whirlpool Screw
71279318 Whirlpool Terminal
72279393 Whirlpool Terminal Block Screw and Nut Kit
87WPL 356674
89Locator, Top
90WPL 427190
91WP487939 Whirlpool Refrigerator Nut
9290984 Whirlpool Nut
