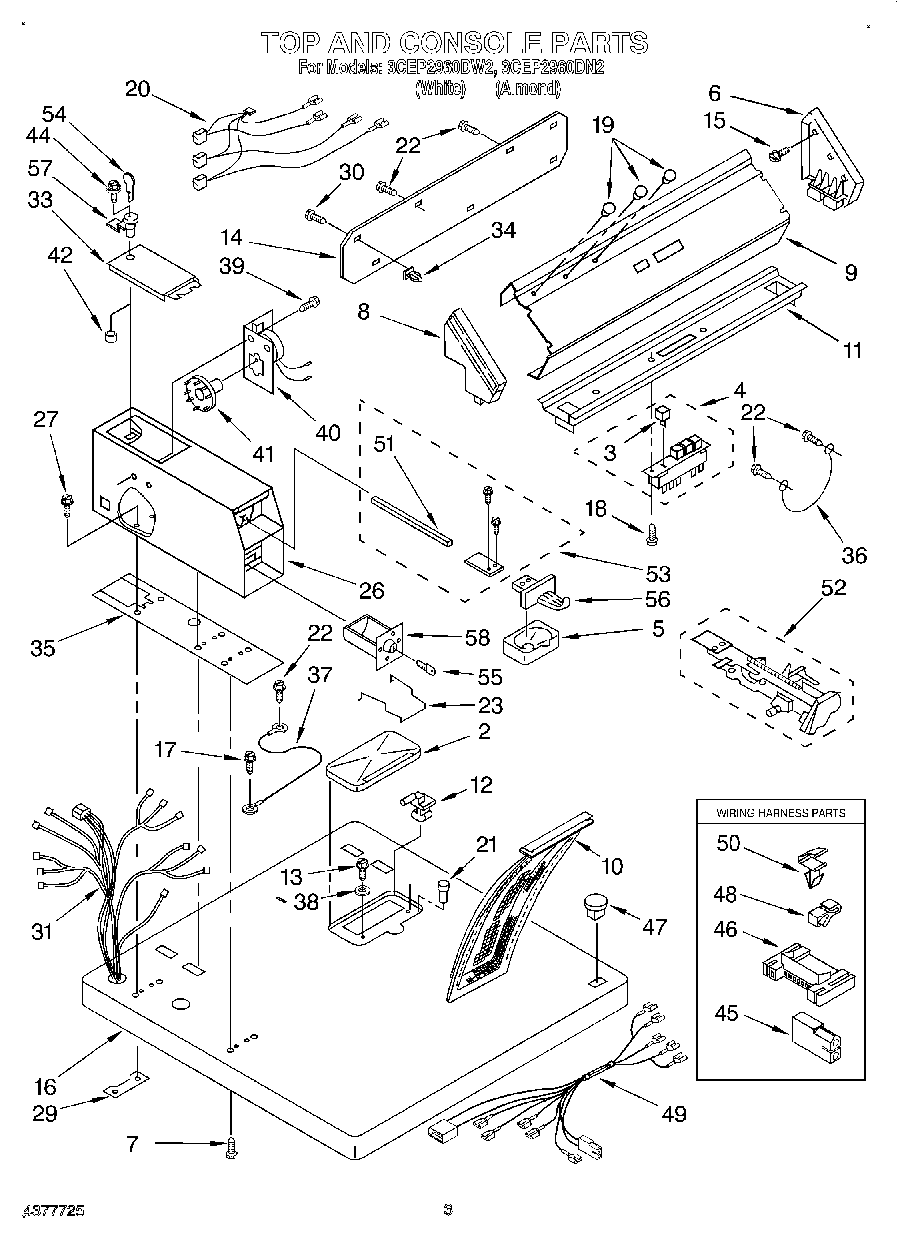

3CEP2960DN2 02 – SECTION

Products

Position	Product
2	Cover, Lint Screen
3	Button (4)
4	Switch, Pushbutton
5	WP385421 Whirlpool Coin Operated Laundry Funnel
6	WPL 63795
7	W10841059 Whirlpool Screw
8	End Cap (L.H.)
9	Panel, Control
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Panel, Rear
15	WPW10109200 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	WP90767 Whirlpool Screw
18	WP965173 Whirlpool Dishwasher Screw
19	WP3348109 Whirlpool Light Lens
20	Lights, Indicator (240 Volts)
21	Bumper, Lint Lid
22	SCREW
23	Guide, Drawer
26	Case, Meter (White)
26	Case, Meter (Almond)
27	W11715721 Whirlpool Screw Assembly
29	3347825 Whirlpool Plate
30	WP308685 Whirlpool Microwave Screw
31	Harness, Wiring
33	Door, Service (For Almond Model)
33	W11283272 Whirlpool Washer Dryer Meter Case Access Door
34	WP689559 Whirlpool Nut
35	WP3954812 Whirlpool Cushion
36	Wire, Ground
37	Wire, Ground
38	Washer
39	339805 Whirlpool Screw
40	Timer, 60 Hz. (Incl. 4 Pin Cam)
41	WP3387974 Whirlpool Cam
41	WP343777 Whirlpool Cam
42	WP90406 Whirlpool Nut
44	Screw & Washer
45	Receptacle, Latching (2-Way) (Uses Terminal 94614)
46	Connector, Receptacle
47	WP387371 Whirlpool Plug
48	Clip, Retainer
49	Harness, Console
50	WP3394427 Whirlpool Clip
