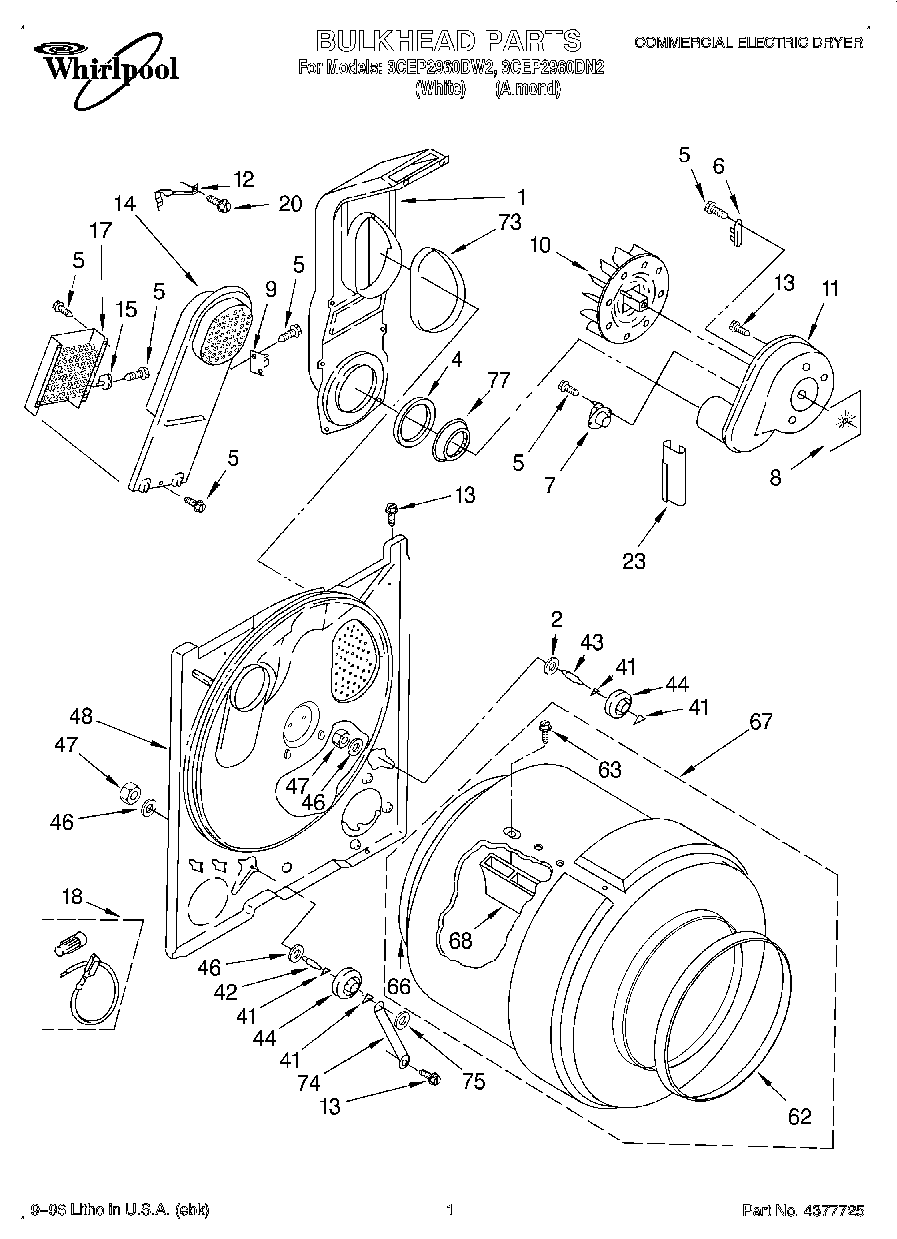

3CEP2960DW2 01 – SECTION

3CEP2960DW2 01 – SECTION

Written by

in

3CEP2960DW2 01 – SECTION

Products

PositionProduct
Label, Wiring Diagram
WPL LIT692257
Instructions, Installation
WPL LIT348772
Golden Harvest (Uncut)
Golden Harvest
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Almond (Uncut)
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
1279505 Whirlpool Chute
2WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP3387137 Whirlpool Thermostat
8Seal, Blower
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3390291 Whirlpool High Limit Thermostat
17Heater Element
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
23686889 Whirlpool Pad
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
77W11233063 Whirlpool Shield Assembly
