3CFE2510W1 02 – SECTION

Products

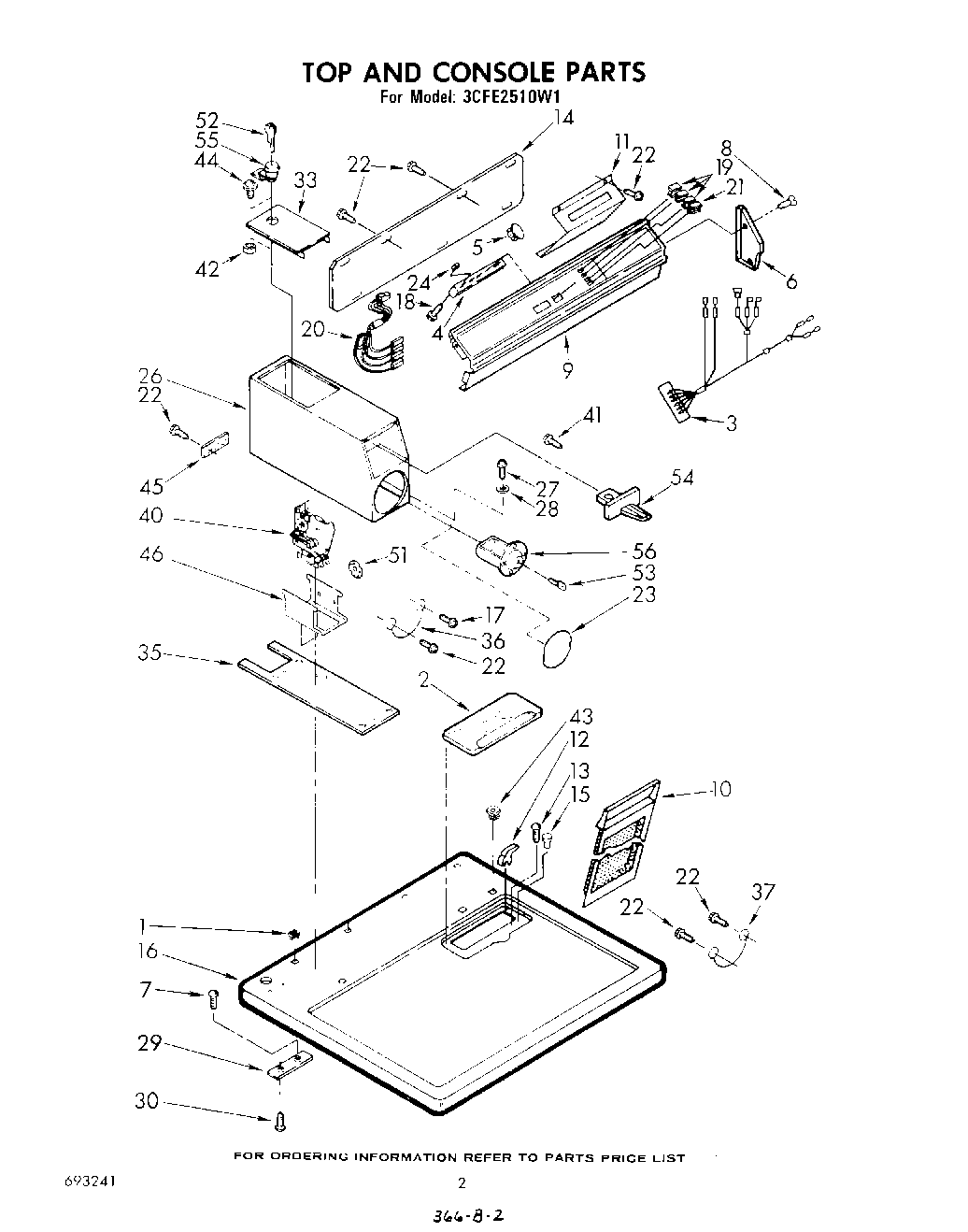

PositionProduct
Instructions, Multi-Venting
WPL 693241
WPL 347146
799344 Whirlpool Refrigerator Paint
WPL 687452
WPL 799351
1Nut, Push-In (2)
2Cover, Lint Screen (Chrome)
3Harness, Upper Wiring
3Harness, Lower
4Switch, Pushbutton
5Plug, Button
6Cap, End
7Screw
8WP488627 Whirlpool Refrigerator Screw
9Billboard, Console
10339392V Whirlpool Dryer Lint Filter Screen
11Bracket, Control
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 356441
15Bumper, Lint Lid
16Top (White)
17WP90767 Whirlpool Screw
18WP965173 Whirlpool Dishwasher Screw
19Lens, Amber (3)
20Indicator Lights Assembly (250 Volts) (Use W/3CFA2000W6)
21Lens, Yellow (1)
22SCREW
23WPL 376429
24Pushbutton (5)
26Case, Meter (White)
27Bolt, 5/16-24 x 3/4
28Lockwasher, 5/16
29Plate & Nut Assembly
30W10841059 Whirlpool Screw
33W11283272 Whirlpool Washer Dryer Meter Case Access Door
35WP3954812 Whirlpool Cushion
36Wire, Ground
37Wire, Ground
40Timer (Includes 6 Pin Timing Cam)
41WP8576635 Whirlpool Bolt
42WP90406 Whirlpool Nut
43NUT, PUSH IN
44Screw & Washer
45WPL 357856
46Bracket, Timer
51WP343777 Whirlpool Cam
51WP339855 Whirlpool Cam
51WP339854 Whirlpool Cam
52WPL 820
52Key (Service Door) (When Ordering Specify Key Use With Service Door Lock Assembly 20198)
53Key (Money Box) (When Ordering Key Specify Vendor Of Money Box Lock)
53Key (Money Box) (When Ordering Key, Specify Vendor Or Money Box Lock)
54WPL 111010
54WPL 111111
54WPL 1110101
54WPL 111115
54WPL 121010
54WPL ARI11718A5
54WPL 121212
54WPL 121030
55WPL 681124
55WPL 20198
56WPL 37557
56WPL 37559
56WPL 37560
56350938 Whirlpool Spray Gun
56WPL 37737
5672017 Whirlpool Appliance Touch-Up Paint White
56Leveler (Thinner)
56WPW10208653 Whirlpool Insulation
56350930 Whirlpool White Spray Paint
56WPL 37803
56WPL 814001
56WPL 814002
56WPL 814004
56WPL 814006
56WPL 814005
