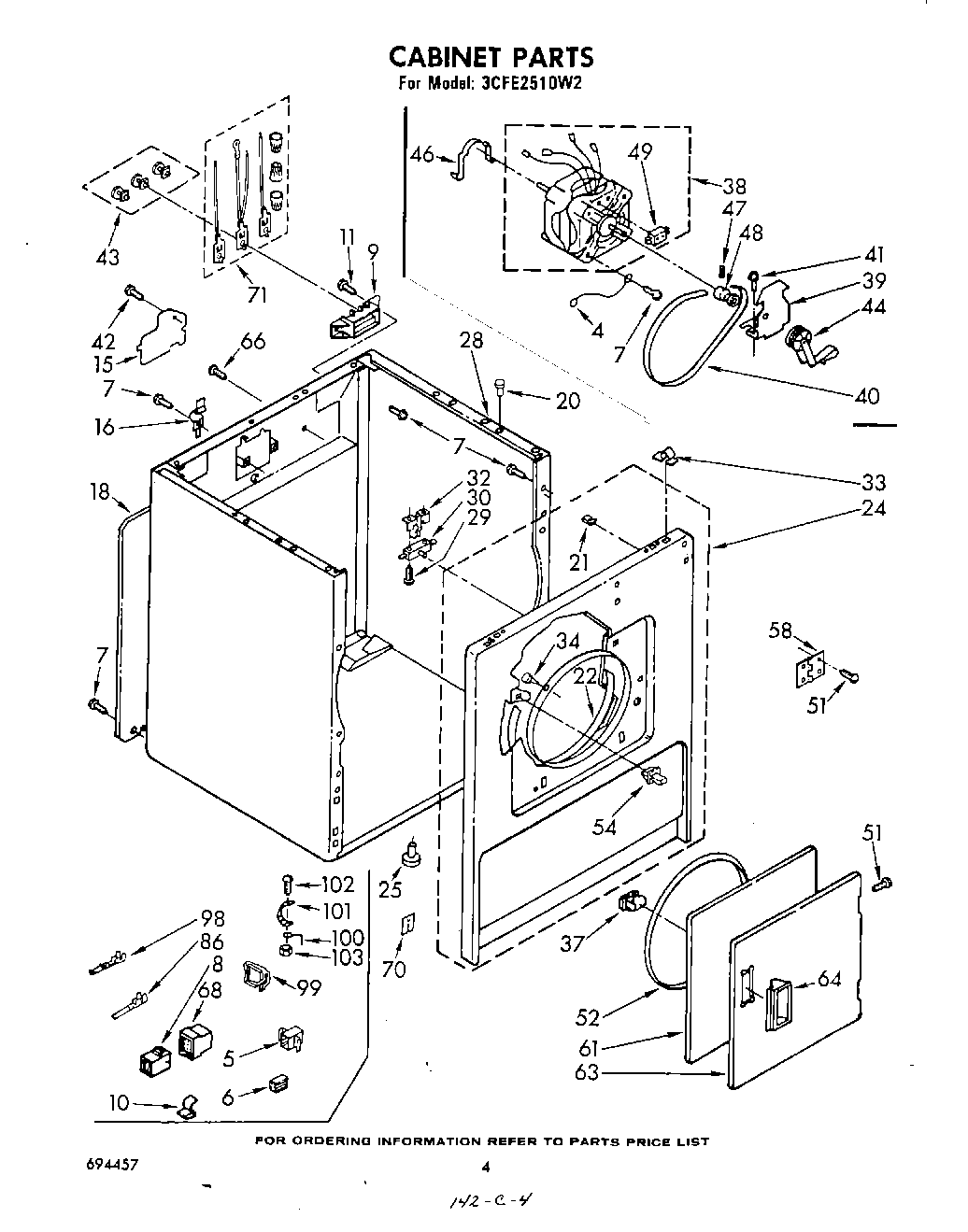

3CFE2510W2 03 – SECTION

Products

PositionProduct
4Wire, Ground (Motor)
5Cap, Terminal (6-Way) (Uses Terminal 94614)
6Plug, Terminal (6 Way)
7SCREW
8Plug, Terminal (Cabinet Harness)
9279320 Whirlpool Dryer Rear Terminal Block Kit
108528351 Whirlpool Clip
11WP308685 Whirlpool Microwave Screw
15Cover, Terminal Block
16WP8066217 Whirlpool Hinge
18Panel, Rear
20Locator, Top
21WP98234 Whirlpool Nut
22279264 Whirlpool Bearing and Seal Kit
24Front Panel (White)
2549621 Whirlpool Leveling Feet
28Cabinet (White)
29WP98129 Whirlpool Screw
30W10820036 Whirlpool Door Switch Kit
32WP691581 Whirlpool Actuator
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
43279393 Whirlpool Terminal Block Screw and Nut Kit
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
47SCREW, SET
48W11618508 Whirlpool Drive Motor
49279827 Whirlpool Dryer Drive Motor
51WP694091 Whirlpool Screw
52W11613302 Whirlpool Door Seal
54279570 Whirlpool Dryer Door Latch Kit
58WP348023 Whirlpool Hinge
61280077 Whirlpool Door
63WP348205 Whirlpool Door
64WP686711 Whirlpool Door Handle
68Cap, Terminal (Console Harness)
70W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
71279318 Whirlpool Terminal
86WP596797 Whirlpool Terminal
98WP94614 Whirlpool Terminal
99Clip, Harness (Rear Bulkhead Area)
100WPL 685449
101Strap, Ground
102Screw, Ground (10-24 x 1)
103W10080180 Whirlpool Nut
