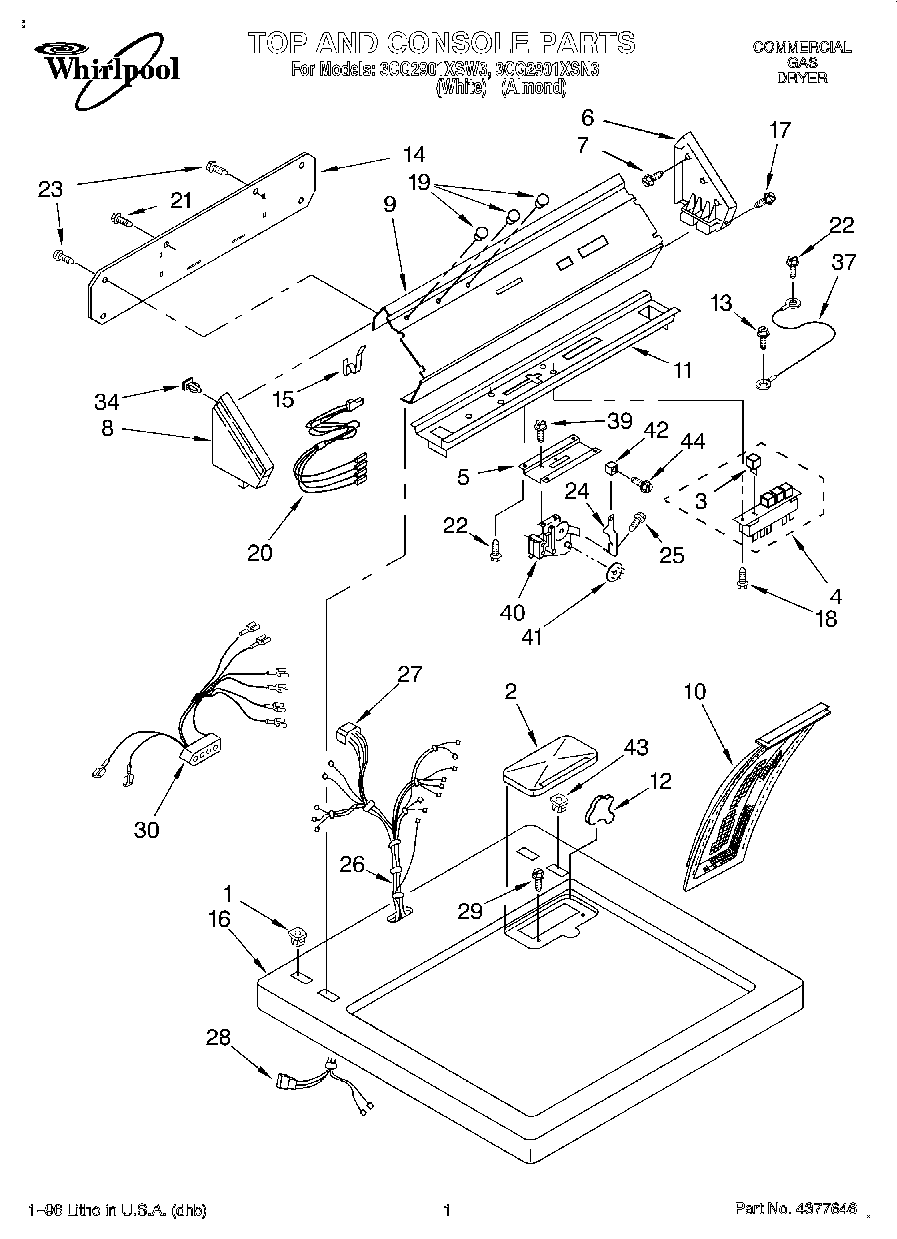

3CG2901XSN3 01 – TOP AND CONSOLE

3CG2901XSN3 01 – TOP AND CONSOLE

Written by

in

3CG2901XSN3 01 – TOP AND CONSOLE

Products

PositionProduct
1Stop, Push-In Top
2Cover, Lint Screen (Almond)
2Cover, Lint Screen (White)
3Button (4)
4SWITCH-PB
5Control, Bracket
6WPL 63795
7WPW10109200 Whirlpool Screw
8Cap, End (L.H.)
9Panel, Control
10339392V Whirlpool Dryer Lint Filter Screen
11Bracket, Control
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13SCREW
14Panel, Rear
15CLIP
16Top (Almond)
16Top (White)
17WPL 64211
18WP965173 Whirlpool Dishwasher Screw
19WP3348109 Whirlpool Light Lens
20Lights, Indicator
21WP693995 Whirlpool Screw
22WP90767 Whirlpool Screw
23W10850756 Whirlpool Screw
24Lever, Timer
25WP3388228 Whirlpool Screw
26Harness, Wiring
27Plug, Terminal (6 Way)
28Receptacle, 3-Way Terminal (Use W/94614)
29W11693756 Whirlpool Screw Assembly
30Harness, Console
34WP689559 Whirlpool Nut
37Wire, Ground
39303776 Whirlpool Dishwasher Screw
40Timer, 50 Hz. (Incl. 4 Pin Cam)
41WP343777 Whirlpool Cam
41WP339855 Whirlpool Cam
41WP3387974 Whirlpool Cam
42Pushbutton (5)
43Nut, Push-In (2)
44Harness Connect
44WP308685 Whirlpool Microwave Screw
44W10851673 Whirlpool Transformer
44Screw, No. 10
44Wire, 25` Roll (Blue 16 Ga.)
44Screw
44279320 Whirlpool Dryer Rear Terminal Block Kit
44Wire, Splicing (240 Volt)
