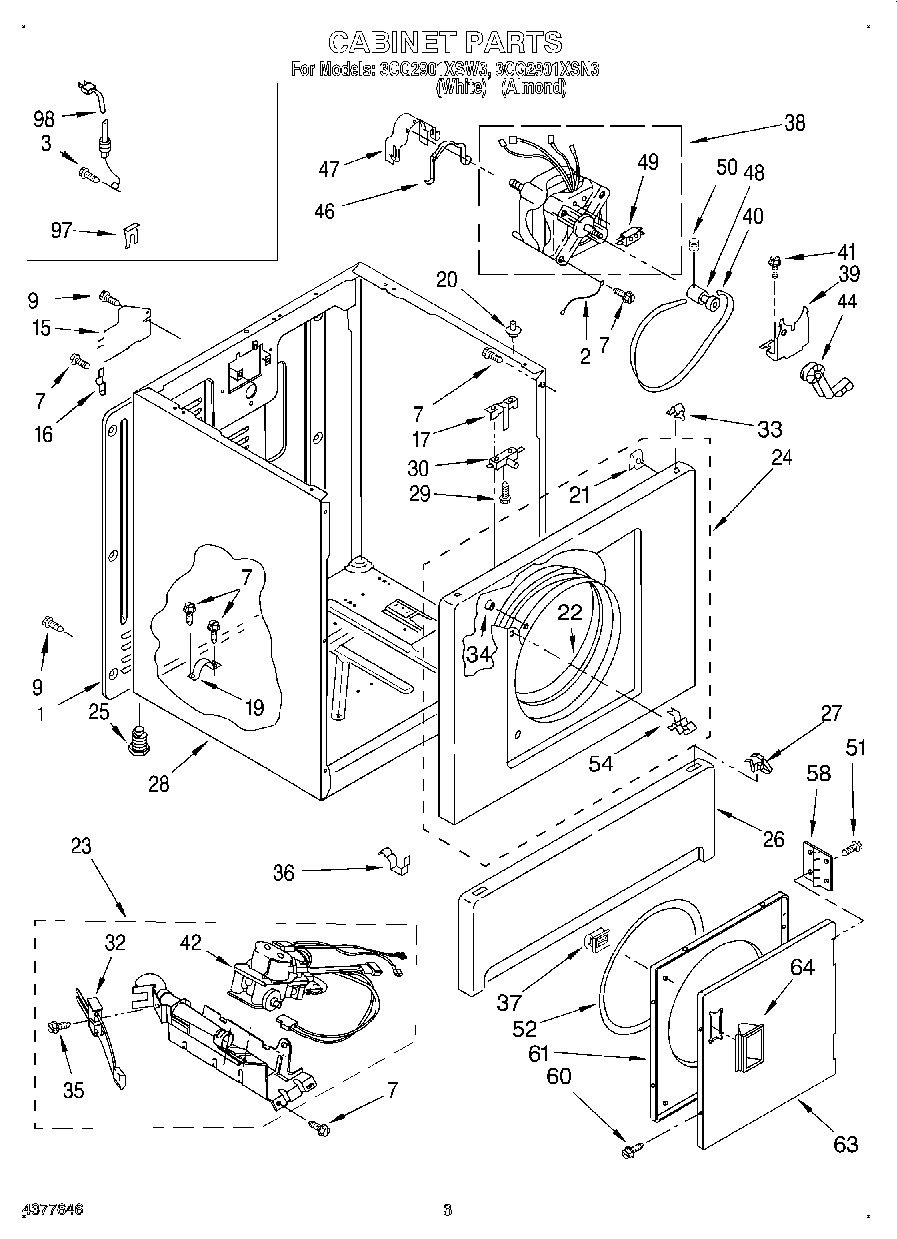

3CG2901XSN3 02 – CABINET

Products

Position	Product
1	280040 Whirlpool Rear Panel
2	Wire, Ground (Motor)
3	W10850756 Whirlpool Screw
7	SCREW
9	WP693995 Whirlpool Screw
15	W11539855 Whirlpool Refrigerator Pump
16	WP8066217 Whirlpool Hinge
17	WP691581 Whirlpool Actuator
19	341029 Whirlpool Clamp
20	Locator, Top
21	WP98234 Whirlpool Nut
22	279264 Whirlpool Bearing and Seal Kit
23	WPL 3401772
24	Upper Front Panel Assembly (Almond)
24	Front Panel Assembly (White)
25	49621 Whirlpool Leveling Feet
26	Panel, Toe (White)
26	Panel, Toe (Almond)
27	WP3388229 Whirlpool Dryer Spring Clip
28	Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
28	Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
29	WP98129 Whirlpool Screw
30	W10820036 Whirlpool Door Switch Kit
32	279311 Whirlpool Dryer Flat Igniter with Bracket
33	WP18776 Whirlpool Lock
34	279220 Whirlpool Clip
35	WPW10366705 Whirlpool Screw
36	WP297092 Whirlpool Clip
37	WP3389441 Whirlpool Door Catch
39	WP348780 Whirlpool Base
40	341241 Whirlpool Dryer Drum Belt
41	3400500 Whirlpool Screw
42	WP8281918 Whirlpool Gas Valve
44	WP691366 Whirlpool Dryer Idler Pulley Assembly
46	WP660658 Whirlpool Clamp
47	WP3404162 Whirlpool Clamp
48	W11618508 Whirlpool Drive Motor
49	279827 Whirlpool Dryer Drive Motor
50	SCREW, SET
52	W11613302 Whirlpool Door Seal
54	279570 Whirlpool Dryer Door Latch Kit
58	WP348023 Whirlpool Hinge
60	WP694091 Whirlpool Screw
61	280077 Whirlpool Door
63	Door, Front (Almond)
63	WP348205 Whirlpool Door
64	WP686711 Whirlpool Door Handle
64	Handle, Door (Almond)
97	W11712577 Whirlpool Clip
98	Cord, Power
