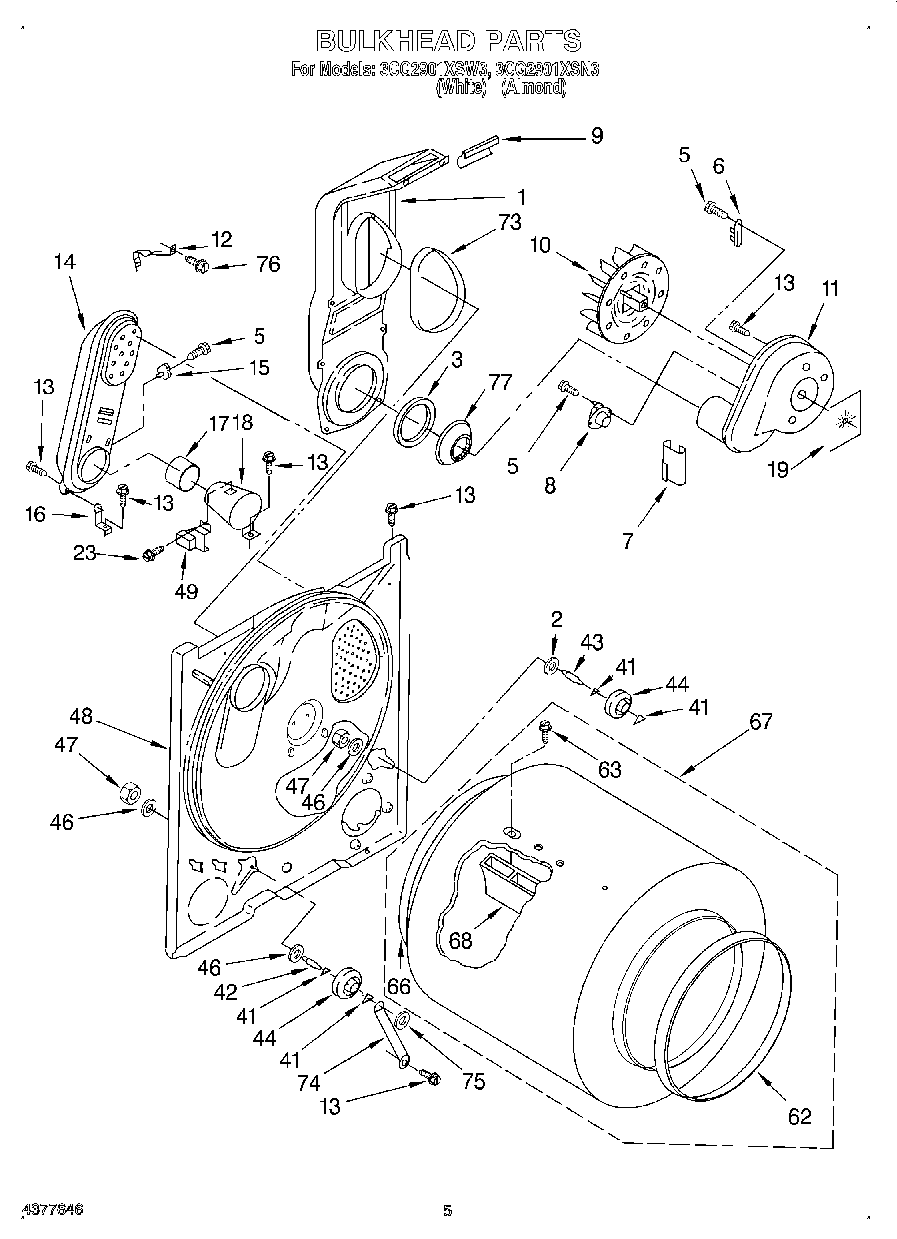

3CG2901XSN3 03 – BULKHEAD, LIT/OPTIONAL

3CG2901XSN3 03 – BULKHEAD, LIT/OPTIONAL

Written by

in

3CG2901XSN3 03 – BULKHEAD, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL LIT348772
	Enamel, New Avocado (1 Qt. Uncut)
	Golden Harvest
	Golden Harvest (Uncut)
	Paint, Spray 13 Oz. (Avocado)
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	Wire, 25` Roll (Blue 16 Ga.)
	WPL LIT4377646
	Label, Wiring Diagram
	WP72107 Whirlpool Touchup
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	Almond (Uncut)
	Instructions, Installation
1	279505 Whirlpool Chute
2	WP3388703 Whirlpool Washer
3	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	686889 Whirlpool Pad
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	686770 Whirlpool Support Bracket
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
15	W11050897 Whirlpool Dryer High Limit Thermostat
16	Support, Heater Box (2)
17	279900 Whirlpool Box O/S1
19	Seal, Blower
23	WP3390631 Whirlpool Screw
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	Bulkhead
49	WP338906 Whirlpool Dryer Gas Sensor
62	WP3394508 Whirlpool Bearing Ring
63	WPW10109200 Whirlpool Screw
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
73	SEAL
74	Bracket, Support
75	WP90296 Whirlpool Clip
76	WP489463 Whirlpool Refrigerator Screw
77	W11233063 Whirlpool Shield Assembly
