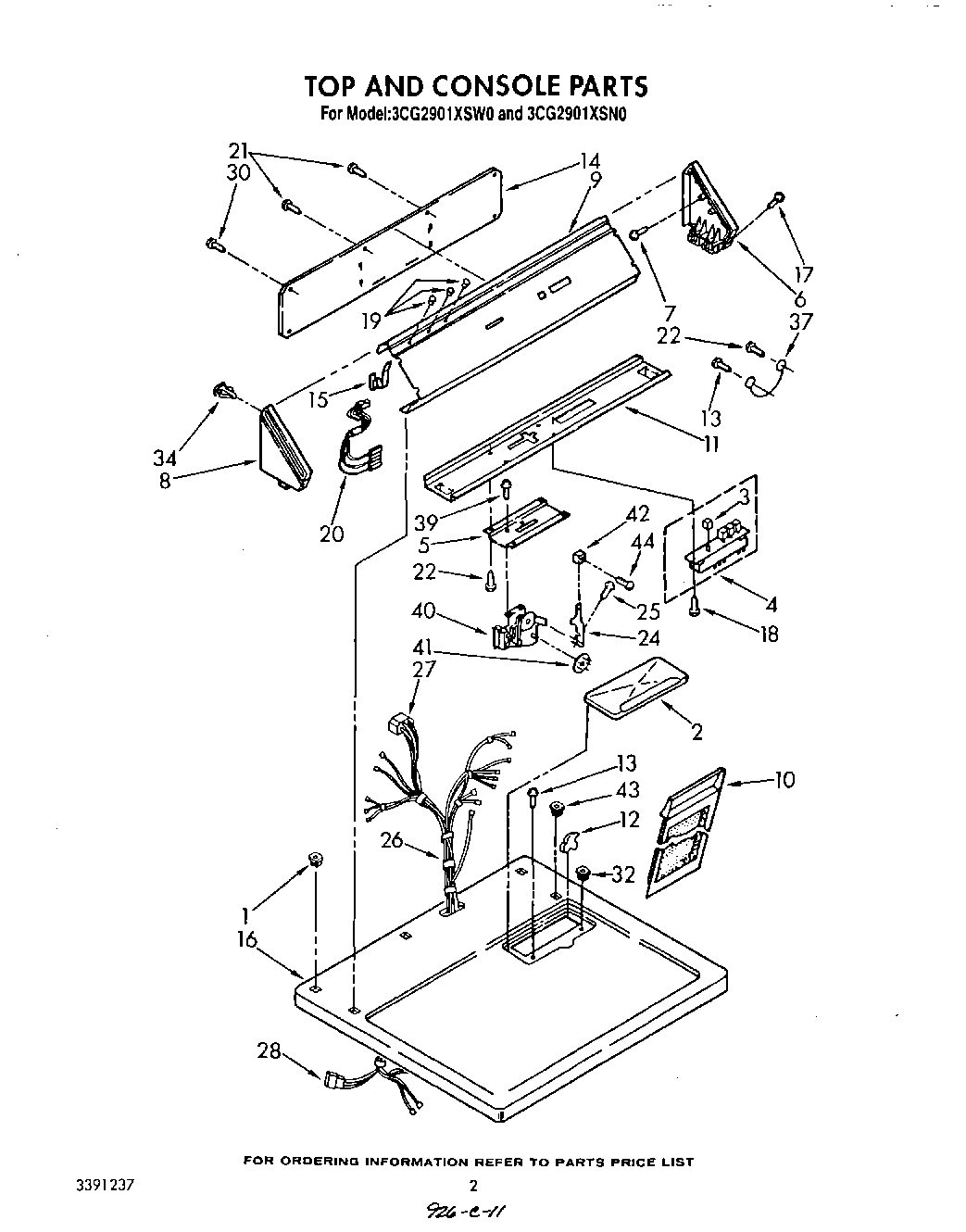

3CG2901XSW0 02 – TOP AND CONSOLE

Products

Position	Product
1	Stop, Push-In Top
2	Cover, Lint Screen (Almond)
2	Cover, Lint Screen (White)
3	Button (4)
4	SWITCH-PB
5	Control, Bracket
6	WPL 63795
7	WPL 355326
8	Cap, End (L.H.)
9	Panel, Control
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	SCREW
14	Panel, Rear
15	CLIP
16	Top (White)
16	Top (Almond)
17	WPL 64211
18	WP965173 Whirlpool Dishwasher Screw
19	WP3348109 Whirlpool Light Lens
20	Lights, Indicator
21	WP693995 Whirlpool Screw
22	WP90767 Whirlpool Screw
24	Lever, Timer
25	Screw Mou
26	Harness, Wiring (Complete)
27	Plug, Terminal (6 Way)
28	Receptacle, 3-Way Terminal (Use W/94614)
30	WP489069 Whirlpool Compactor Screw
32	98460 Whirlpool Nut
34	WP689559 Whirlpool Nut
37	Wire, Ground
39	303776 Whirlpool Dishwasher Screw
40	Timer, 50 Hz. (Incl. 4 Pin Cam)
41	WP3387974 Whirlpool Cam
41	WP339855 Whirlpool Cam
41	WP343777 Whirlpool Cam
42	Pushbutton (5)
43	Nut, Push-In (2)
44	WP308685 Whirlpool Microwave Screw
44	WPL 90723
44	Screw
44	W10851673 Whirlpool Transformer
44	279320 Whirlpool Dryer Rear Terminal Block Kit
44	Harness Connect
