3CG2901XSW0 04 – BULKHEAD , LITERATURE AND OPTIONAL

3CG2901XSW0 04 – BULKHEAD , LITERATURE AND OPTIONAL

Written by

in

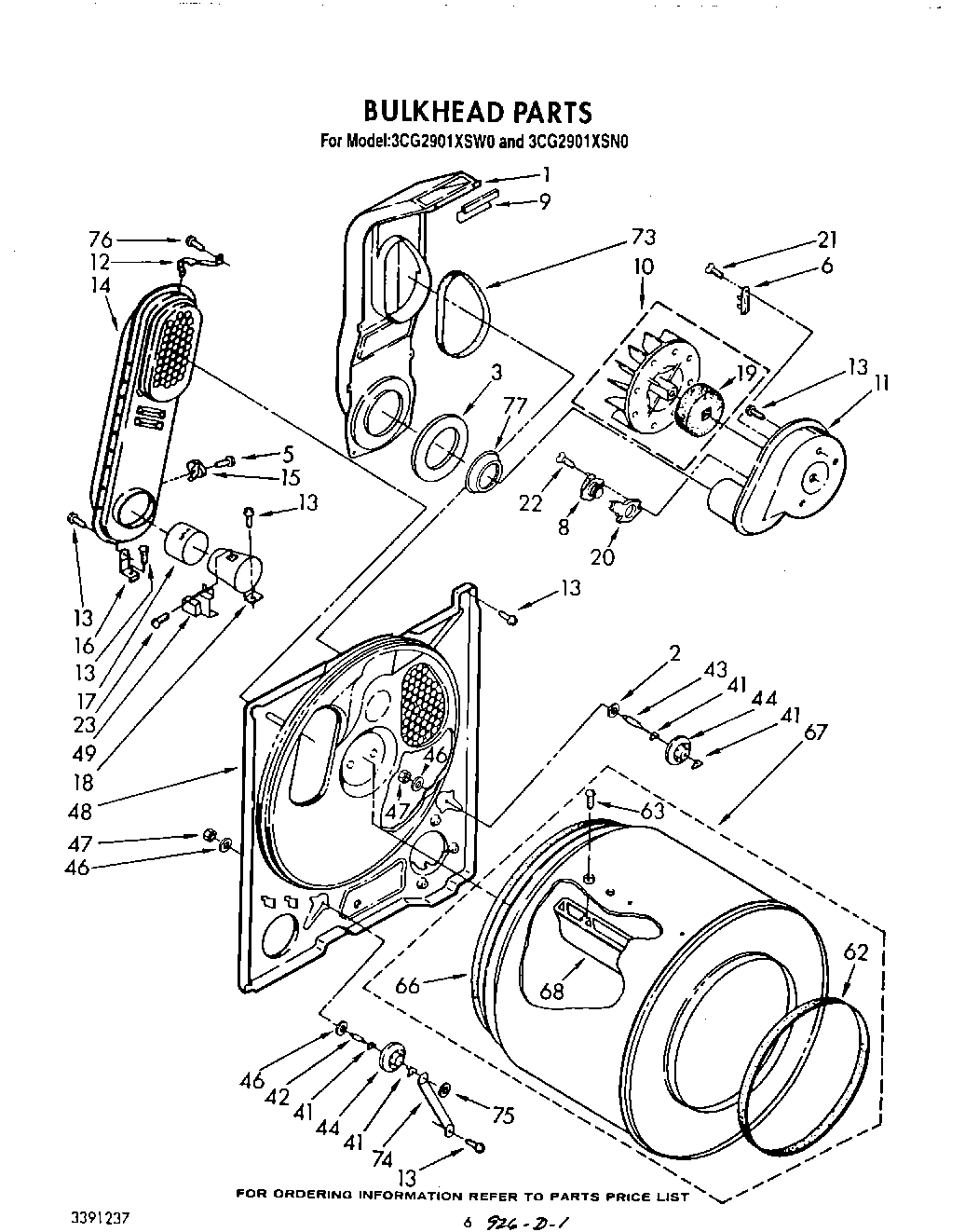

3CG2901XSW0 04 – BULKHEAD , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3391237
Golden Harvest
Golden Harvest (Uncut)
WPL LIT687460
Wire, 25` Roll (Blue 16 Ga.)
72109 Whirlpool Dacor Avocado Touch-Up Paint
Paint, Spray 13 Oz. (Avocado)
Enamel, New Avocado (1 Qt. Uncut)
WPL LIT348772
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350938 Whirlpool Spray Gun
Almond (Uncut)
350930 Whirlpool White Spray Paint
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
1279505 Whirlpool Chute
2WP3388703 Whirlpool Washer
3W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
8WP694674 Whirlpool Cycling Thermostat
9686770 Whirlpool Support Bracket
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15Thermostat, 205 F (96 C)
15Thermostat SPST (205)
16Support, Heater Box (2)
17279900 Whirlpool Box O/S1
19Seal, Blower
20Heater, Thermostat
21WP965173 Whirlpool Dishwasher Screw
22WP488729 Whirlpool Refrigerator Door Screw
23WP3390631 Whirlpool Screw
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
77W11233063 Whirlpool Shield Assembly
