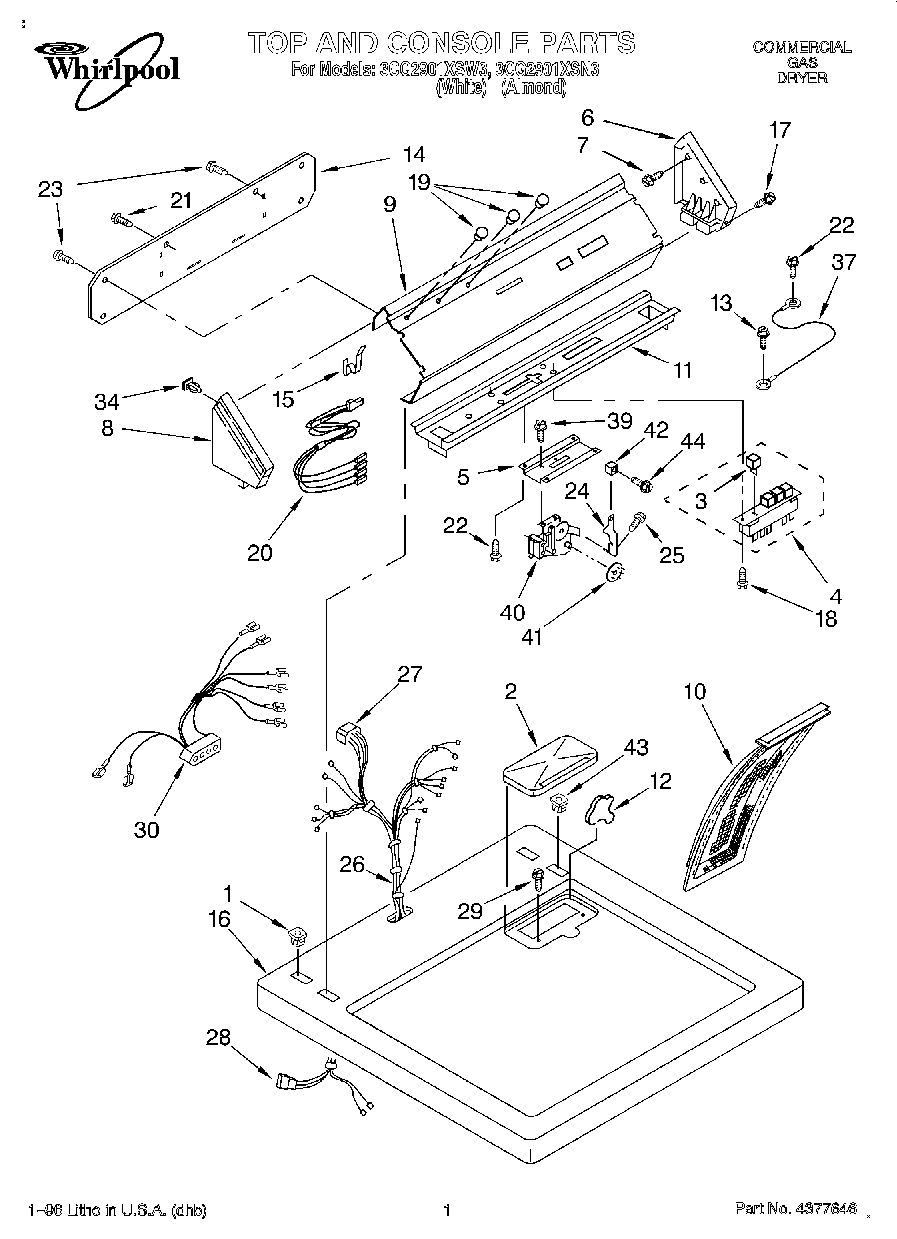

3CG2901XSW3 01 – TOP AND CONSOLE

Products

Position	Product
1	Stop, Push-In Top
2	Cover, Lint Screen (Almond)
2	Cover, Lint Screen (White)
3	Button (4)
4	SWITCH-PB
5	Control, Bracket
6	WPL 63795
7	WPW10109200 Whirlpool Screw
8	Cap, End (L.H.)
9	Panel, Control
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	SCREW
14	Panel, Rear
15	CLIP
16	Top (Almond)
16	Top (White)
17	WPL 64211
18	WP965173 Whirlpool Dishwasher Screw
19	WP3348109 Whirlpool Light Lens
20	Lights, Indicator
21	WP693995 Whirlpool Screw
22	WP90767 Whirlpool Screw
23	W10850756 Whirlpool Screw
24	Lever, Timer
25	WP3388228 Whirlpool Screw
26	Harness, Wiring
27	Plug, Terminal (6 Way)
28	Receptacle, 3-Way Terminal (Use W/94614)
29	W11693756 Whirlpool Screw Assembly
30	Harness, Console
34	WP689559 Whirlpool Nut
37	Wire, Ground
39	303776 Whirlpool Dishwasher Screw
40	Timer, 50 Hz. (Incl. 4 Pin Cam)
41	WP343777 Whirlpool Cam
41	WP339855 Whirlpool Cam
41	WP3387974 Whirlpool Cam
42	Pushbutton (5)
43	Nut, Push-In (2)
44	Harness Connect
44	WP308685 Whirlpool Microwave Screw
44	W10851673 Whirlpool Transformer
44	Screw, No. 10
44	Wire, 25` Roll (Blue 16 Ga.)
44	Screw
44	279320 Whirlpool Dryer Rear Terminal Block Kit
44	Wire, Splicing (240 Volt)
