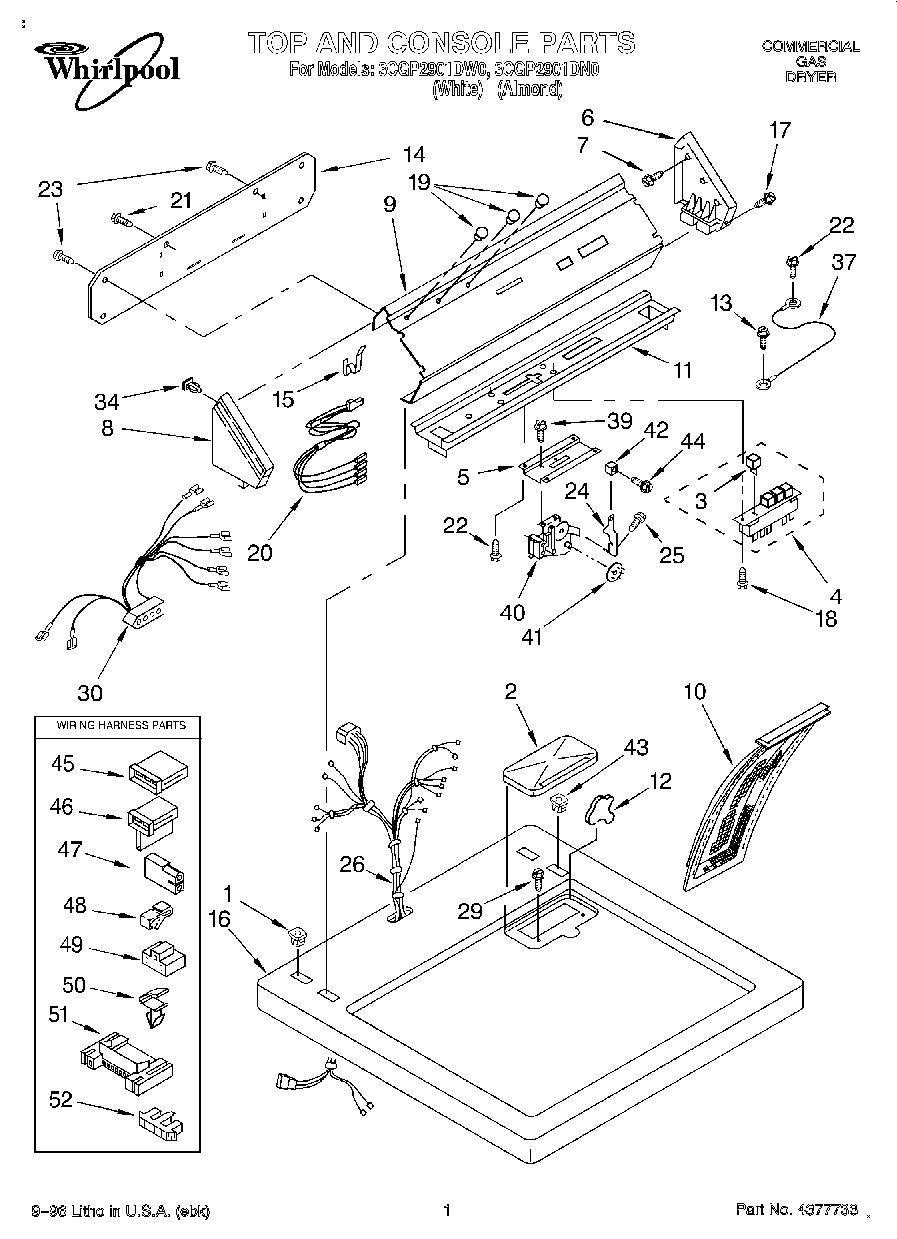

3CGP2901DN0 01 – TOP AND CONSOLE

3CGP2901DN0 01 – TOP AND CONSOLE

Written by

in

3CGP2901DN0 01 – TOP AND CONSOLE

Products

PositionProduct
1Stop, Push-In Top
2Cover, Lint Screen (Almond)
2Cover, Lint Screen (White)
3Button (4)
4Switch, Pushbutton
5Control, Bracket
6WPL 63795
7WPW10109200 Whirlpool Screw
8Cap, End (L.H.)
9Panel, Control
10339392V Whirlpool Dryer Lint Filter Screen
11Bracket, Control
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13SCREW
14Panel, Rear
15CLIP
16Top (Almond)
16Top (White)
17WP388326 Whirlpool Screw
18WP965173 Whirlpool Dishwasher Screw
19WP3348109 Whirlpool Light Lens
20Lights, Indicator (240 Volts)
21WP693995 Whirlpool Screw
22WP90767 Whirlpool Screw
23W10850756 Whirlpool Screw
24Lever, Timer
25WP3388228 Whirlpool Screw
26Harness, Wiring
29W11693756 Whirlpool Screw Assembly
30Harness, Console
34WP689559 Whirlpool Nut
37Wire, Ground
39303776 Whirlpool Dishwasher Screw
40Timer, 50 Hz. (Incl. 4 Pin Cam)
41WP3387974 Whirlpool Cam
41WP339855 Whirlpool Cam
41WP343777 Whirlpool Cam
42Pushbutton (5)
43Nut, Push-In (2)
44Screw
45WP3403498 Whirlpool Connector
46WP3403499 Whirlpool Connector
47Receptacle, Latching (2-Way) (Uses Terminal 94614)
48Clip, Retainer
493401144 Whirlpool Connector
50WP3394427 Whirlpool Clip
513395683 Whirlpool Connector
52W10851673 Whirlpool Transformer
52Screw, No. 10
52Connector, Timer
52WP3397659 Whirlpool Terminal Block
52Wire, 25` Roll (Red 12 Ga.)
52Harness Connect
52WP308685 Whirlpool Microwave Screw
