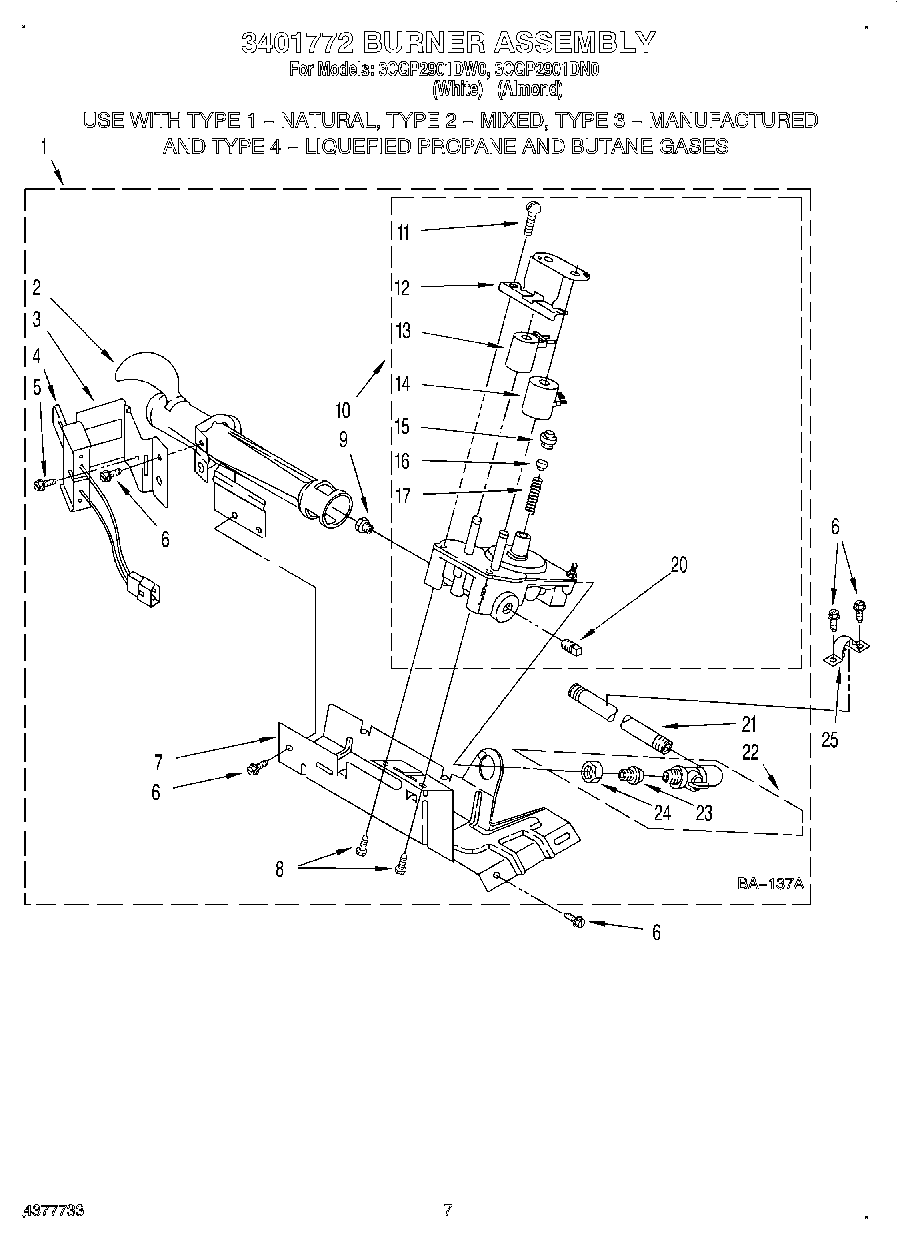

3CGP2901DW0 04 – 3401772 BURNER ASSEMBLY

3CGP2901DW0 04 – 3401772 BURNER ASSEMBLY

Written by

in

3CGP2901DW0 04 – 3401772 BURNER ASSEMBLY

Products

PositionProduct
1WPL 3401772
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9Orifice, Burner (Type 2)
9Orifice, Burner (Type 3)
9WP234868 Whirlpool Gas Orifice
9WP229742 Whirlpool Gas Orifice
9ORIFICE, BURNER TYPE 1
10WP8281918 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
13WP307930 Whirlpool Coil Valve
14WPY307931 Whirlpool Valve Coil
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
21Pipe, Gas Supply
22Valve & Union, Shut-Off
233393767 Whirlpool Pipe
24Nut, Compression
25695237 Whirlpool Gas LP Conversion
25341029 Whirlpool Clamp
