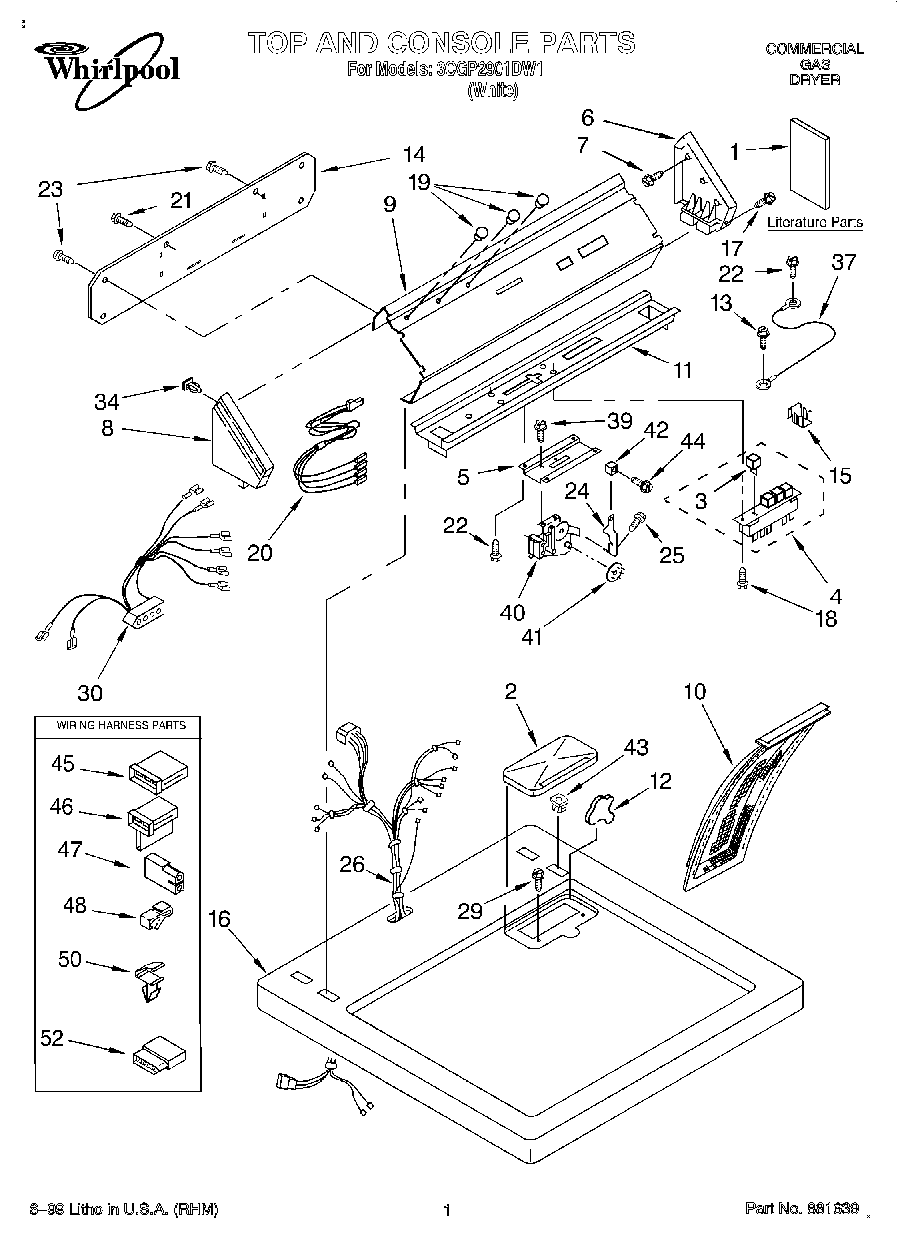

3CGP2901DW1 01 – TOP AND CONSOLE, LITERATURE

Products

Position	Product
1	Instructions, Installation
1	Label, Wiring Diagram
1	WPL LIT348772
2	Cover, Lint Screen (White)
3	Button (4)
4	Switch, Pushbutton
5	Control, Bracket
6	WPL 63795
7	WPW10109200 Whirlpool Screw
8	Cap, End (L.H.)
9	Panel, Control
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	SCREW
14	Panel, Rear
15	W10113937 Whirlpool Clamp
16	Top (White)
17	WP388326 Whirlpool Screw
18	WP355214 Whirlpool Screw
19	WP3348109 Whirlpool Light Lens
20	Lights, Indicator (240 Volts)
21	WP693995 Whirlpool Screw
22	WP3390631 Whirlpool Screw
23	W10850756 Whirlpool Screw
24	Lever, Timer
25	WP3388228 Whirlpool Screw
26	Harness, Wiring
29	W11693756 Whirlpool Screw Assembly
30	Harness, Console
34	WP689559 Whirlpool Nut
37	Wire, Ground
39	303776 Whirlpool Dishwasher Screw
40	Timer, 50 Hz. (Incl. 4 Pin Cam)
41	WP339855 Whirlpool Cam
41	WP343777 Whirlpool Cam
41	WP3387974 Whirlpool Cam
42	Pushbutton (5)
43	Nut, Push-In (2)
44	Screw
45	WP3403498 Whirlpool Connector
46	WP3403499 Whirlpool Connector
47	Receptacle, Latching (2-Way) (Uses Terminal 94614)
48	Clip, Retainer
50	WP3394427 Whirlpool Clip
52	Wire, 25` Roll (Red 12 Ga.)
52	W10851673 Whirlpool Transformer
52	WPL 717315
52	Screw, No. 10
52	WP308685 Whirlpool Microwave Screw
52	WP3397659 Whirlpool Terminal Block
52	Harness Connect
