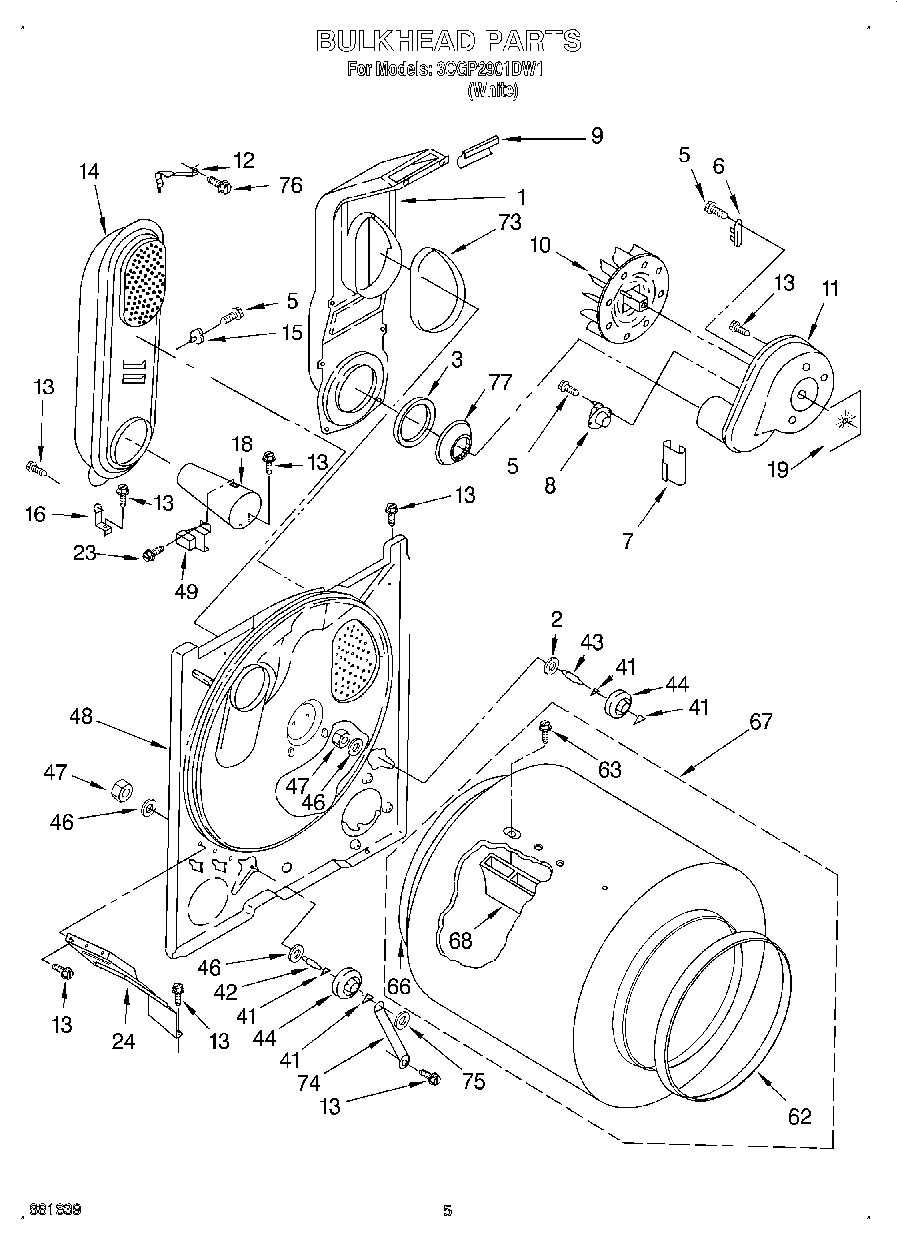

3CGP2901DW1 03 – BULKHEAD

3CGP2901DW1 03 – BULKHEAD

3CGP2901DW1 03 – BULKHEAD

Products

PositionProduct
1279505 Whirlpool Chute
2WP3388703 Whirlpool Washer
3W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7686889 Whirlpool Pad
8WP3387137 Whirlpool Thermostat
9686770 Whirlpool Support Bracket
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14279980 Whirlpool Box
15W11050897 Whirlpool Dryer High Limit Thermostat
16Support, Heater Box (2)
18WP8066048 Whirlpool Funnel
19Seal, Blower
23WP3390631 Whirlpool Screw
24W11398682 Whirlpool Bracket
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394508 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
76WP489463 Whirlpool Refrigerator Screw
77Almond (Uncut)
77799344 Whirlpool Refrigerator Paint
7772017 Whirlpool Appliance Touch-Up Paint White
77350956 Whirlpool Spray Assembly
77350938 Whirlpool Spray Gun
77WP72107 Whirlpool Touchup
77350930 Whirlpool White Spray Paint
7772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
77Paint, Spray 13 Oz. (Avocado)
7772109 Whirlpool Dacor Avocado Touch-Up Paint
77Golden Harvest
77Golden Harvest (Uncut)
77W11233063 Whirlpool Shield Assembly
77Wire, 25` Roll (Blue 16 Ga.)
