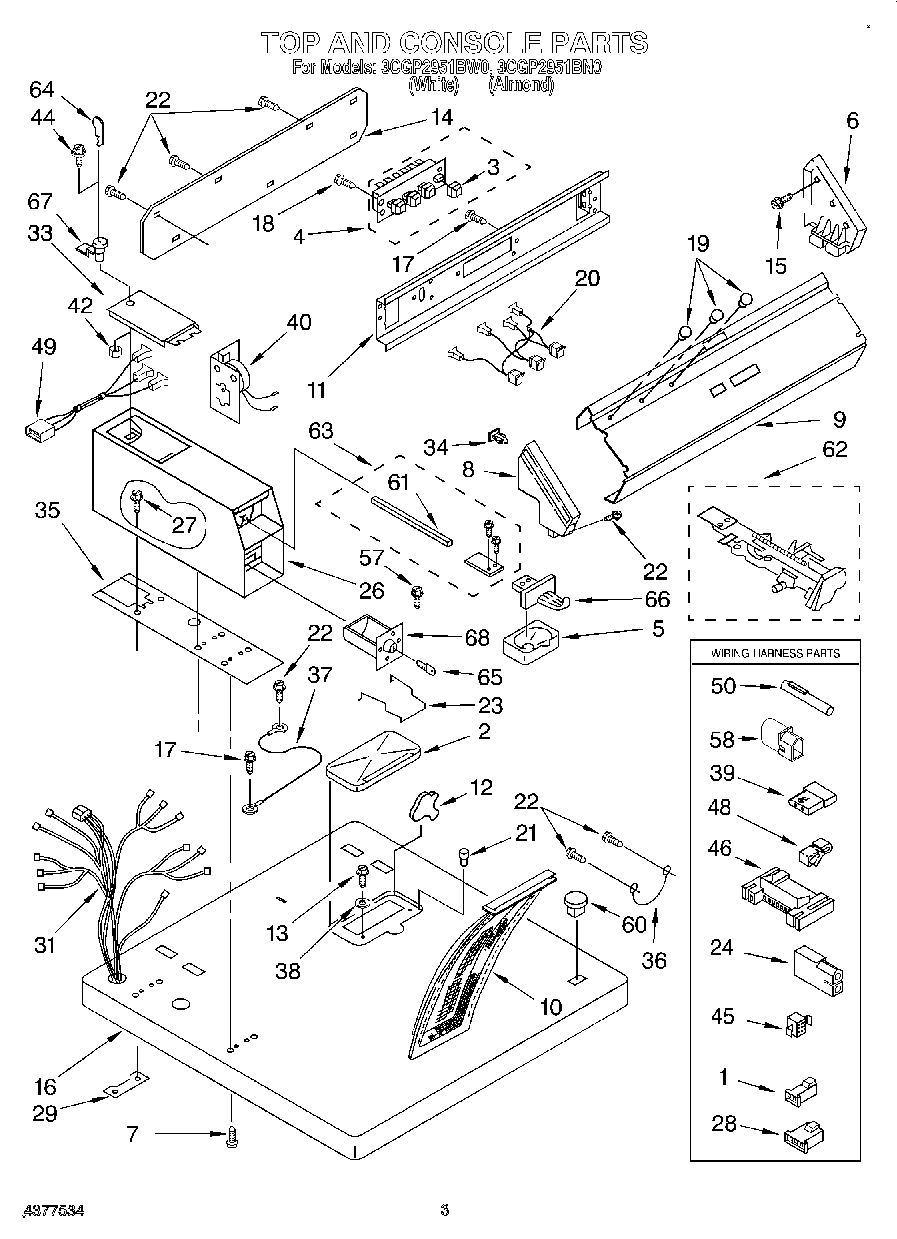

3CGP2951BN0 02 – TOP AND CONSOLE

Products

Position	Product
1	Connector, 2-Position (Gas Valve)
2	Cover, Lint Screen
3	Button (4)
4	Switch, Pushbutton
5	WP385421 Whirlpool Coin Operated Laundry Funnel
6	WPL 63795
7	W10841059 Whirlpool Screw
8	End Cap (L.H.)
9	Panel, Control
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Panel, Rear
15	WPW10109200 Whirlpool Screw
16	Top (White)
16	Top (Almond)
17	WP90767 Whirlpool Screw
18	WP965173 Whirlpool Dishwasher Screw
19	WP3348109 Whirlpool Light Lens
20	Lights, Indicator (240 Volts)
21	Bumper, Lint Lid
22	SCREW
23	Guide, Drawer
24	Receptacle, Latching (2-Way) (Uses Terminal 94614)
26	Case, Meter (Almond)
26	Case, Meter (White)
27	W11715721 Whirlpool Screw Assembly
28	Connector, 3-Position (Gas Valve)
29	3347825 Whirlpool Plate
31	Harness, Wiring
33	Door, Service (For Almond Model)
33	W11283272 Whirlpool Washer Dryer Meter Case Access Door
34	WP689559 Whirlpool Nut
35	WP3954812 Whirlpool Cushion
36	Wire, Ground
37	Wire, Ground
38	Washer
39	WP717253 Whirlpool Dishwasher Connector
40	Timer, 60 Hz. (Incl. 4 Pin Cam)
41	WPW10366705 Whirlpool Screw
42	WP90406 Whirlpool Nut
44	Screw & Washer
45	Plug
46	3395683 Whirlpool Connector
48	Clip, Retainer
49	Harness, Console
50	Receptacle
52	W10491983 Whirlpool Tine Tip
57	339805 Whirlpool Screw
58	WPL 717315
60	WP387371 Whirlpool Plug
