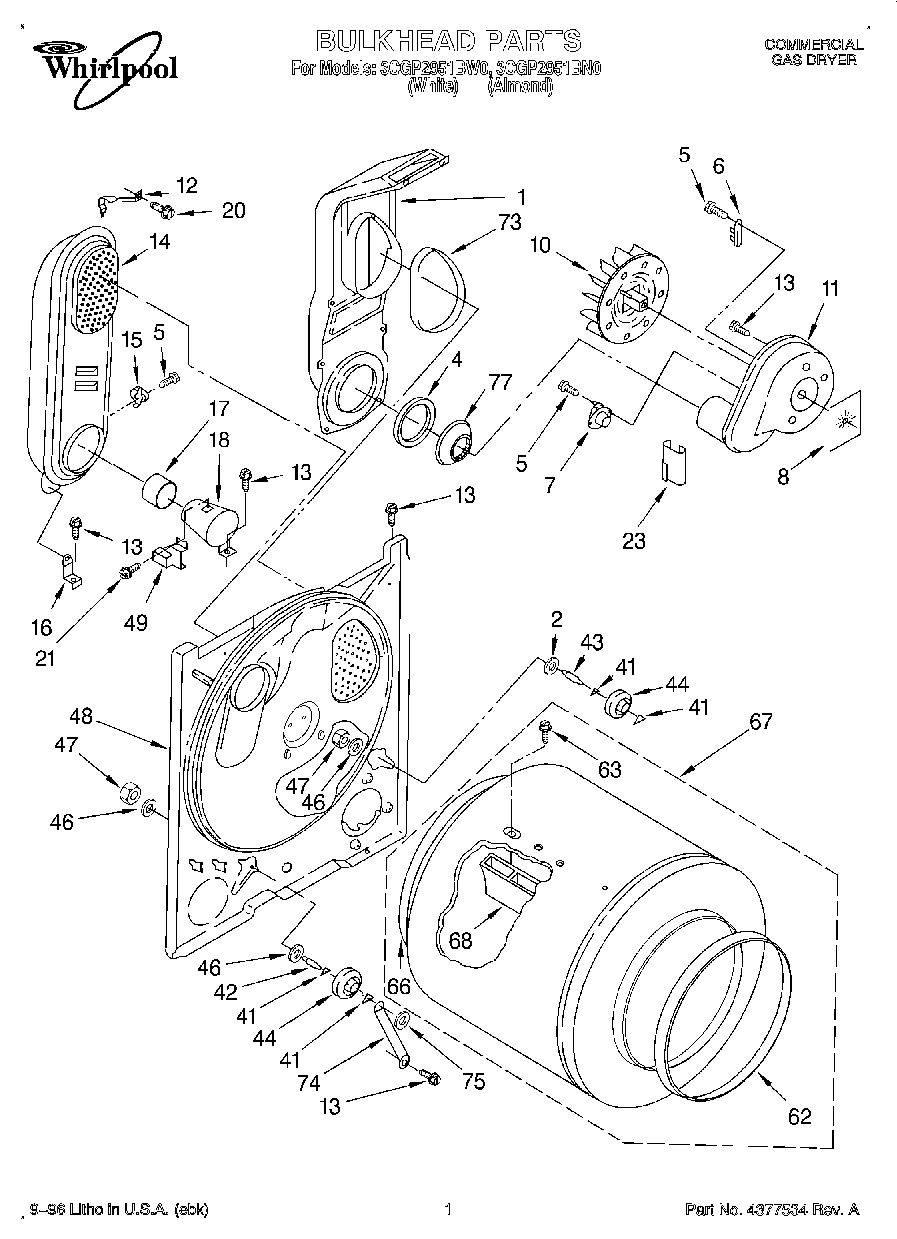

3CGP2951BW0 01 – BULKHEAD, LIT/OPTIONALadmin2025-04-26T10:56:19+00:003CGP2951BW0 01 – BULKHEAD, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Label, Wiring Diagram |
| WPL LIT692257 |
| Label, Operating Instructions |
| Instructions, Installation |
| WPL LIT348772 |
| Golden Harvest (Uncut) |
| Golden Harvest |
| 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| Almond (Uncut) |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 350938 Whirlpool Spray Gun |
| 350956 Whirlpool Spray Assembly |
| 350930 Whirlpool White Spray Paint |
| 799344 Whirlpool Refrigerator Paint |
| WP72107 Whirlpool Touchup |
| 1 | 279505 Whirlpool Chute |
| 2 | WP3388703 Whirlpool Washer |
| 4 | W11415783 Whirlpool Seal |
| 5 | WP90767 Whirlpool Screw |
| 6 | WP3392519 Whirlpool Dryer Thermal Fuse |
| 7 | WP3387134 Whirlpool Dryer Cycling Thermostat |
| 8 | Seal, Blower |
| 10 | WP694089 Whirlpool Dryer Blower Wheel |
| 11 | Housing, Blower |
| 12 | 279771 Whirlpool Clip |
| 13 | SCREW |
| 15 | W11050897 Whirlpool Dryer High Limit Thermostat |
| 16 | Support, Heater Box (2) |
| 17 | 279900 Whirlpool Box O/S1 |
| 20 | WP489463 Whirlpool Refrigerator Screw |
| 21 | WP3390631 Whirlpool Screw |
| 23 | 686889 Whirlpool Pad |
| 41 | WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller |
| 42 | SHAFT SUPPORT ROLLER DRYER |
| 43 | SHAFT SUPPORT ROLLER DRYER |
| 44 | 349241T Whirlpool Dryer Drum Support Roller Kit |
| 46 | WP348197 Whirlpool Washer Assembly |
| 47 | WP3359452 Whirlpool Nut |
| 48 | Bulkhead |
| 49 | WP338906 Whirlpool Dryer Gas Sensor |
| 62 | WP3394508 Whirlpool Bearing Ring |
| 63 | WPW10109200 Whirlpool Screw |
| 66 | 239087 Whirlpool Dryer Rear Drum Seal Green Stitches |
| 67 | 3396775 Whirlpool Drum Assembly |
| 68 | WP342847 Whirlpool Drum Baffle |
| 73 | SEAL |
| 74 | Bracket, Support |
| 75 | WP90296 Whirlpool Clip |
| 77 | W10851673 Whirlpool Transformer |
| 77 | Screw, No. 10 |
| 77 | 279320 Whirlpool Dryer Rear Terminal Block Kit |
| 77 | W11233063 Whirlpool Shield Assembly |
| 77 | WP308685 Whirlpool Microwave Screw |
| 77 | Wire, 25` Roll (Blue 16 Ga.) |
| 77 | Wire, 25` Roll (Red 12 Ga.) |
