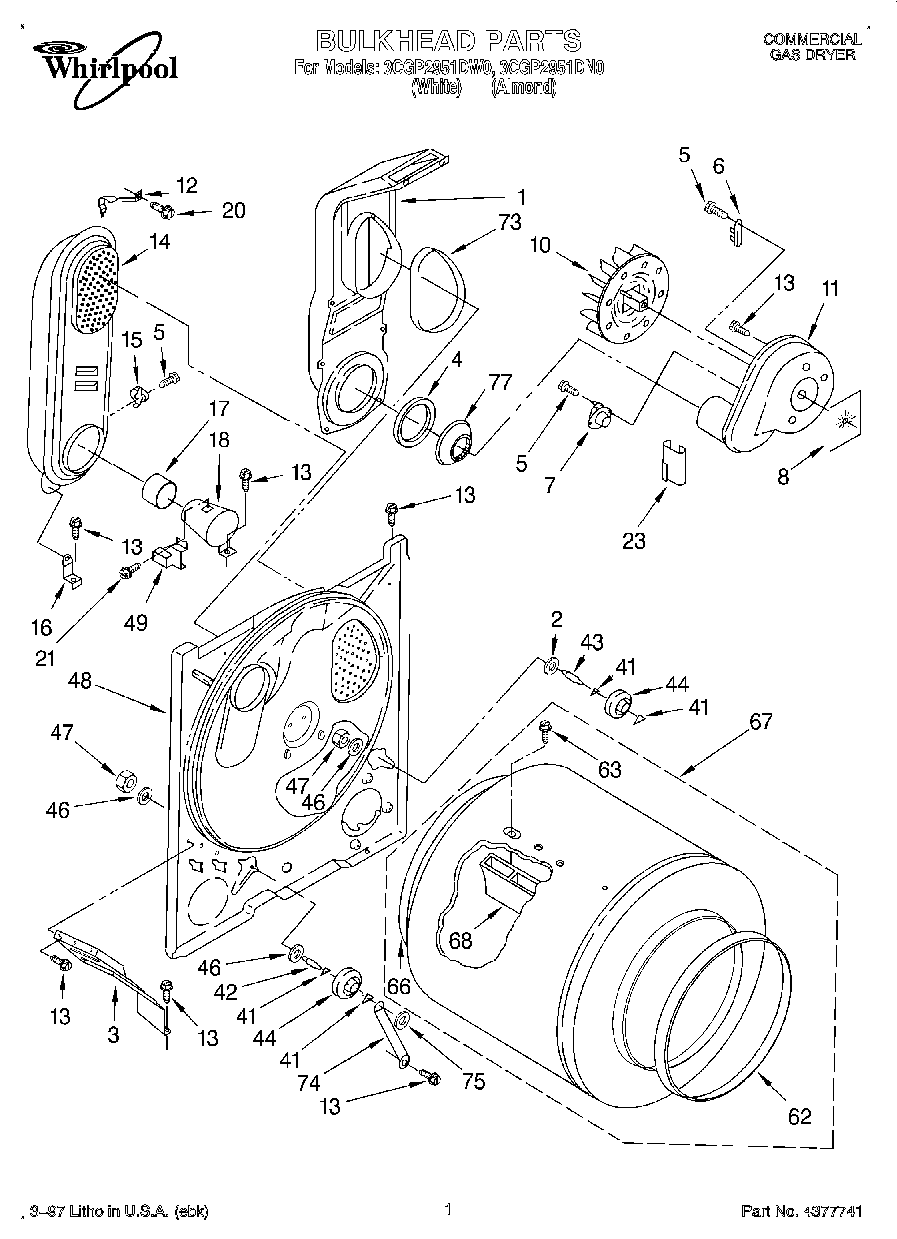

3CGP2951DN0 01 – BULKHEAD, LIT/OPTIONAL

Products

Position	Product
	Label, Wiring Diagram
	Instructions, Installation
	WPL LIT348772
	Golden Harvest (Uncut)
	Golden Harvest
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
1	279505 Whirlpool Chute
2	WP3388703 Whirlpool Washer
3	W11398682 Whirlpool Bracket
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	WP3387137 Whirlpool Thermostat
8	Seal, Blower
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
15	W11050897 Whirlpool Dryer High Limit Thermostat
16	Support, Heater Box (2)
17	279900 Whirlpool Box O/S1
20	WP489463 Whirlpool Refrigerator Screw
21	WP3390631 Whirlpool Screw
23	686889 Whirlpool Pad
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	Bulkhead
49	WP338906 Whirlpool Dryer Gas Sensor
62	WP3394508 Whirlpool Bearing Ring
63	WPW10109200 Whirlpool Screw
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
73	SEAL
74	Bracket, Support
75	WP90296 Whirlpool Clip
77	Screw, No. 10
77	W10851673 Whirlpool Transformer
77	W11233063 Whirlpool Shield Assembly
