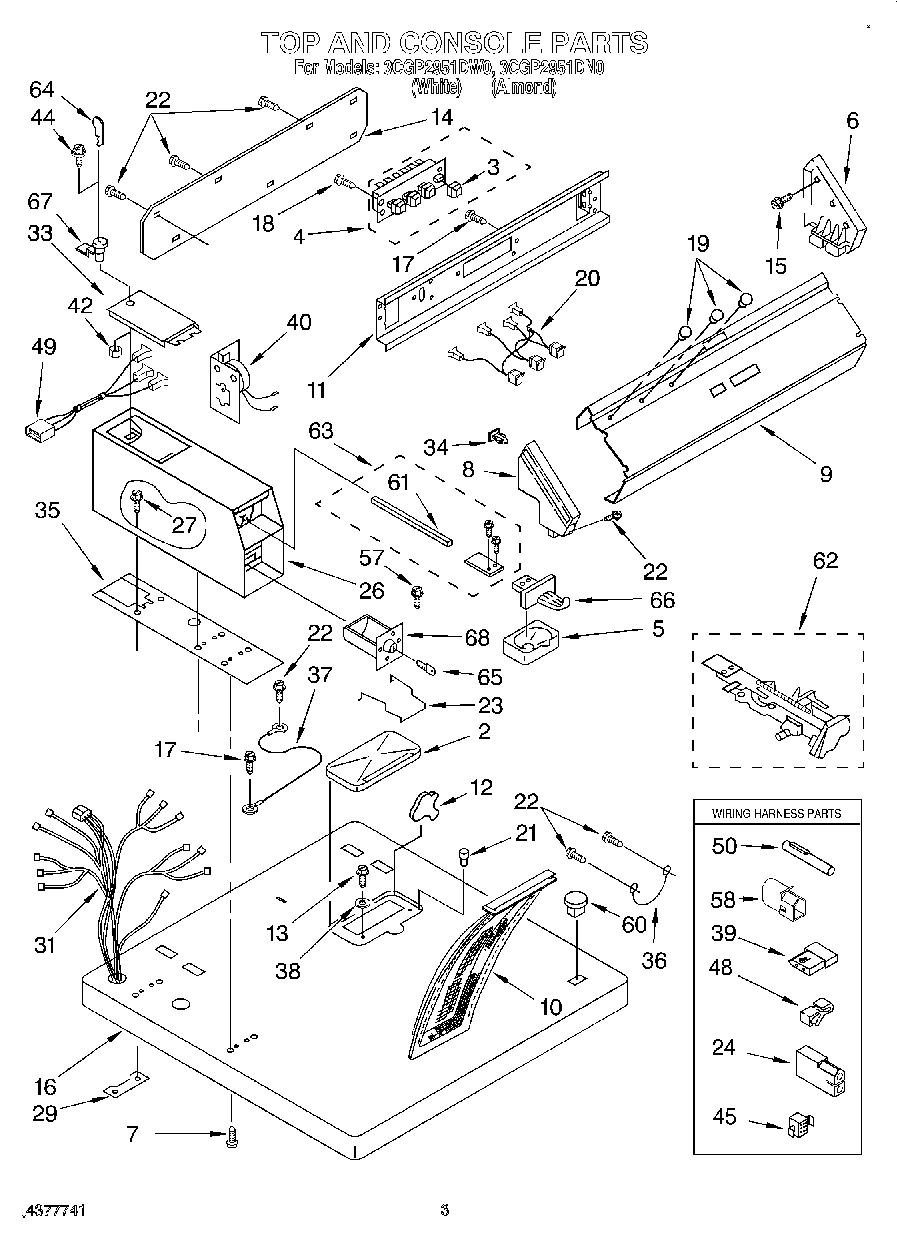

3CGP2951DN0 02 – TOP AND CONSOLE

Products

Position	Product
2	Cover, Lint Screen
3	Button (4)
4	Switch, Pushbutton
5	WP385421 Whirlpool Coin Operated Laundry Funnel
6	WPL 63795
7	W10841059 Whirlpool Screw
8	End Cap (L.H.)
9	Panel, Control
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Panel, Rear
15	WPW10109200 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	WP90767 Whirlpool Screw
18	WP489128 Whirlpool Refrigerator Screw
19	WP3348109 Whirlpool Light Lens
20	Lights, Indicator (240 Volts)
21	Bumper, Lint Lid
22	SCREW
23	Guide, Drawer
24	Receptacle, Latching (2-Way) (Uses Terminal 94614)
26	Case, Meter (Almond)
26	Case, Meter (White)
27	W11715721 Whirlpool Screw Assembly
29	3347825 Whirlpool Plate
31	Harness, Wiring
33	Door, Service (For Almond Model)
33	W11283272 Whirlpool Washer Dryer Meter Case Access Door
34	WP689559 Whirlpool Nut
35	WP3954812 Whirlpool Cushion
36	Wire, Ground
37	Wire, Ground
38	Washer
39	WP717253 Whirlpool Dishwasher Connector
40	Timer, 60 Hz. (Incl. 4 Pin Cam)
42	WP90406 Whirlpool Nut
44	Screw & Washer
45	Plug
48	WP3394427 Whirlpool Clip
49	Harness, Console
50	Receptacle
57	339805 Whirlpool Screw
58	WPL 717315
60	WP387371 Whirlpool Plug
