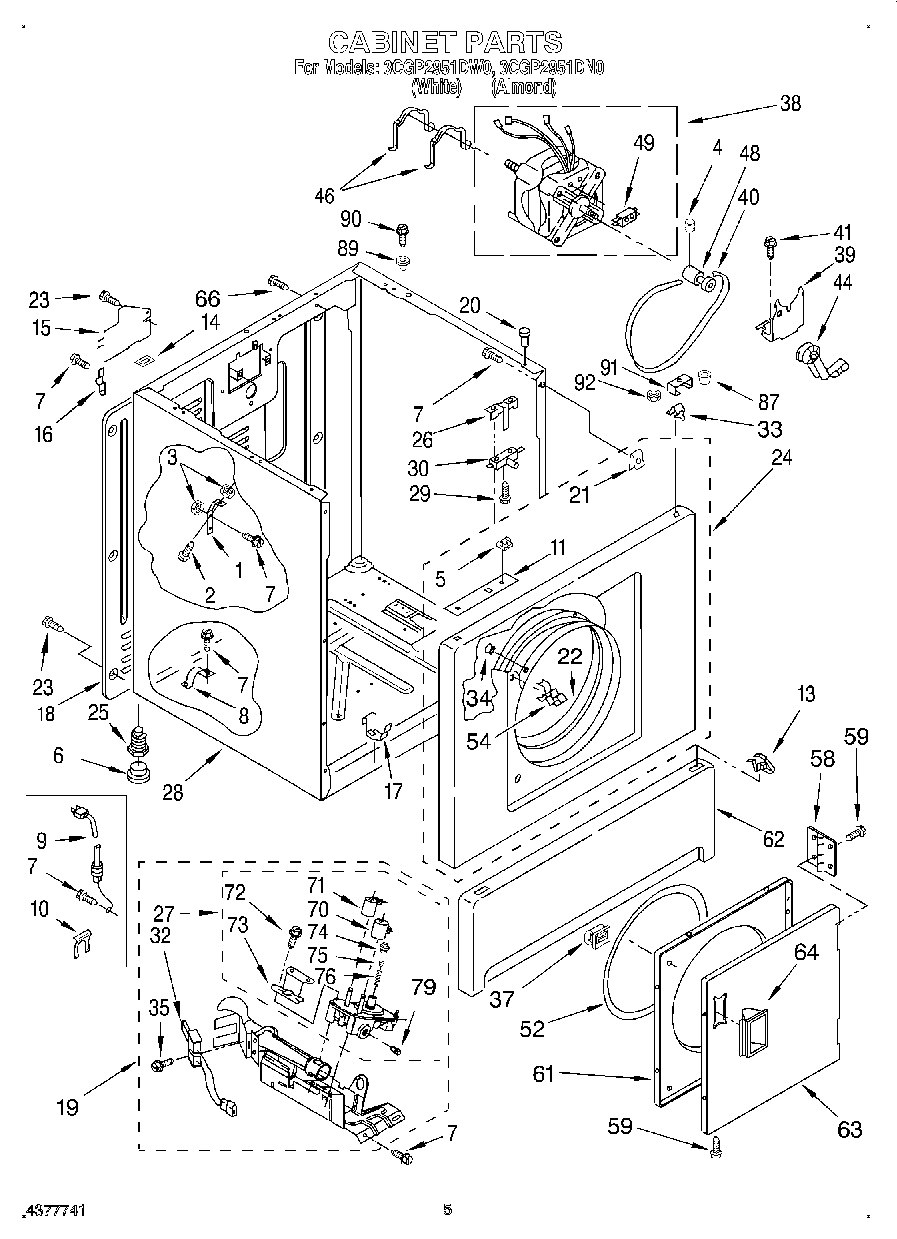

3CGP2951DN0 03 – CABINET

Products

PositionProduct
1Bracket, Top Lock
2BOLT, 5/16-18 X 2 3/4
4SCREW, SET
5WP90406 Whirlpool Nut
6WP3391943 Whirlpool Foot Boot
7SCREW
8341029 Whirlpool Clamp
9Cord, Power
10W11712577 Whirlpool Clip
11Bracket, Front Top Lock
13WP3388229 Whirlpool Dryer Spring Clip
1418849 Whirlpool Pad
15W11539855 Whirlpool Refrigerator Pump
16WP8066217 Whirlpool Hinge
17WP297092 Whirlpool Clip
18280040 Whirlpool Rear Panel
19Burner Assembly, 50 Hz. (See Parts Page For Further Burner Breakdown)
20Locator, Top
21WP98234 Whirlpool Nut
22279264 Whirlpool Bearing and Seal Kit
23WP693995 Whirlpool Screw
24Front Panel Assembly (Almond)
24Front Panel Assembly (White)
2549621 Whirlpool Leveling Feet
26WP691581 Whirlpool Actuator
27WP8281918 Whirlpool Gas Valve
28Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
28Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
29WP98129 Whirlpool Screw
30W10820036 Whirlpool Door Switch Kit
32279311 Whirlpool Dryer Flat Igniter with Bracket
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
35WPW10366705 Whirlpool Screw
37WP3389441 Whirlpool Door Catch
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
48W11618508 Whirlpool Drive Motor
49279827 Whirlpool Dryer Drive Motor
52W11613302 Whirlpool Door Seal
54279570 Whirlpool Dryer Door Latch Kit
58WP348023 Whirlpool Hinge
59WP694091 Whirlpool Screw
61280077 Whirlpool Door
62Panel, Toe (White)
62Panel, Toe (Almond)
63Door, Front (Almond)
63WP348205 Whirlpool Door
64Handle, Door (Almond)
64WP686711 Whirlpool Door Handle
66W10850756 Whirlpool Screw
70WPY307931 Whirlpool Valve Coil
71WP307930 Whirlpool Coil Valve
72694421 Whirlpool Screw Assembly
73694538 Whirlpool Bracket
74WP694424 Whirlpool Limiter
75WP694423 Whirlpool Regulator
76WP694422 Whirlpool Spring
79W10295523 Whirlpool Plug
87WPL 356674
89Locator, Top
90WPL 427190
91WP487939 Whirlpool Refrigerator Nut
9290984 Whirlpool Nut
