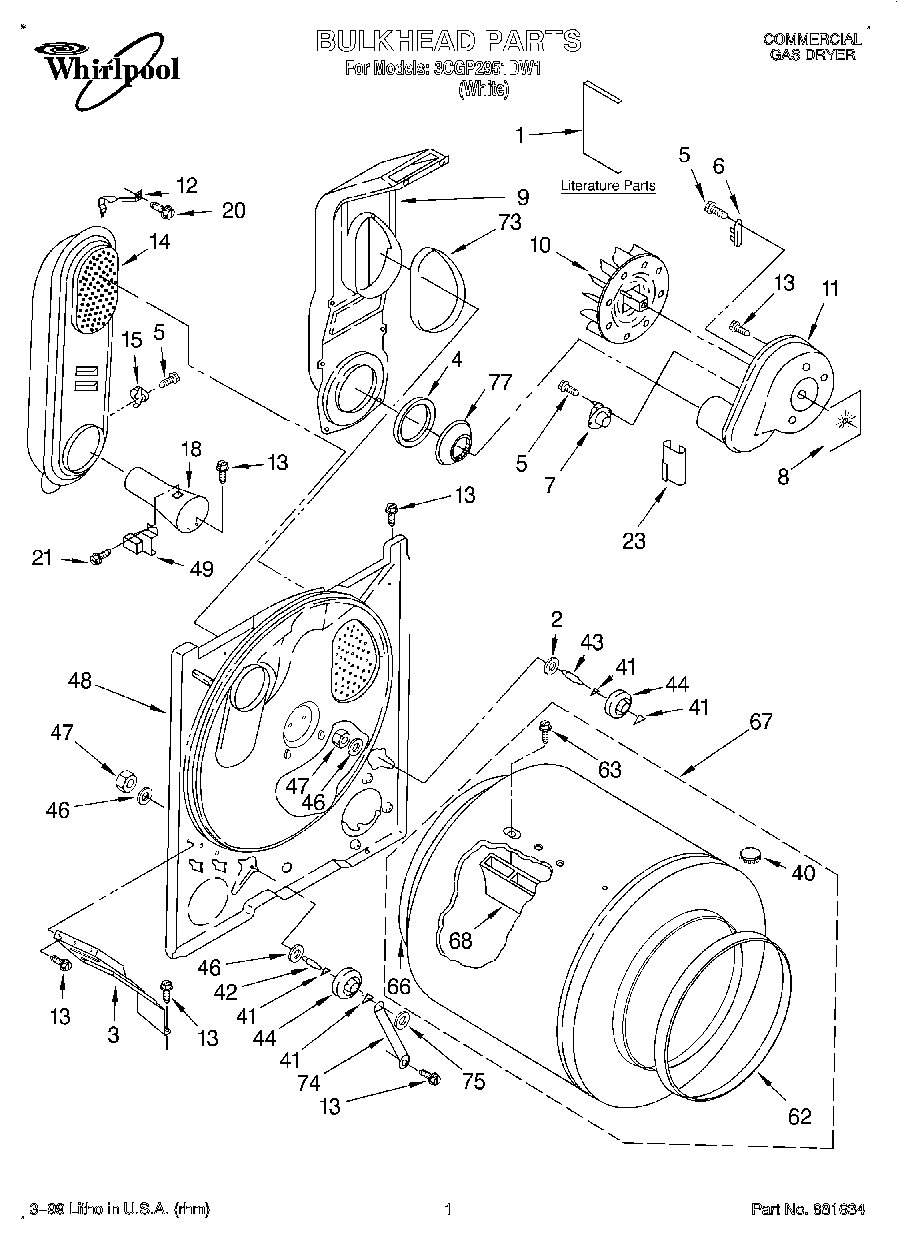

3CGP2951DW1 01 – BULKHEAD, LIT/OPTIONAL

3CGP2951DW1 01 – BULKHEAD, LIT/OPTIONAL

Written by

in

3CGP2951DW1 01 – BULKHEAD, LIT/OPTIONAL

Products

PositionProduct
1Instructions, Installation
1Label, Wiring Diagram
2WP3388703 Whirlpool Washer
3W11398682 Whirlpool Bracket
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP3387137 Whirlpool Thermostat
8Seal, Blower
9279505 Whirlpool Chute
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14279980 Whirlpool Box
15W11050897 Whirlpool Dryer High Limit Thermostat
18WP8066048 Whirlpool Funnel
20WP489463 Whirlpool Refrigerator Screw
21WP3390631 Whirlpool Screw
23686889 Whirlpool Pad
408066086 Whirlpool Plug
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394508 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
77W11233063 Whirlpool Shield Assembly
77350938 Whirlpool Spray Gun
77W10851673 Whirlpool Transformer
77350956 Whirlpool Spray Assembly
77Screw, No. 10
77Golden Harvest
77Almond (Uncut)
7772017 Whirlpool Appliance Touch-Up Paint White
77799344 Whirlpool Refrigerator Paint
77Golden Harvest (Uncut)
77350930 Whirlpool White Spray Paint
77WP72107 Whirlpool Touchup
7772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
