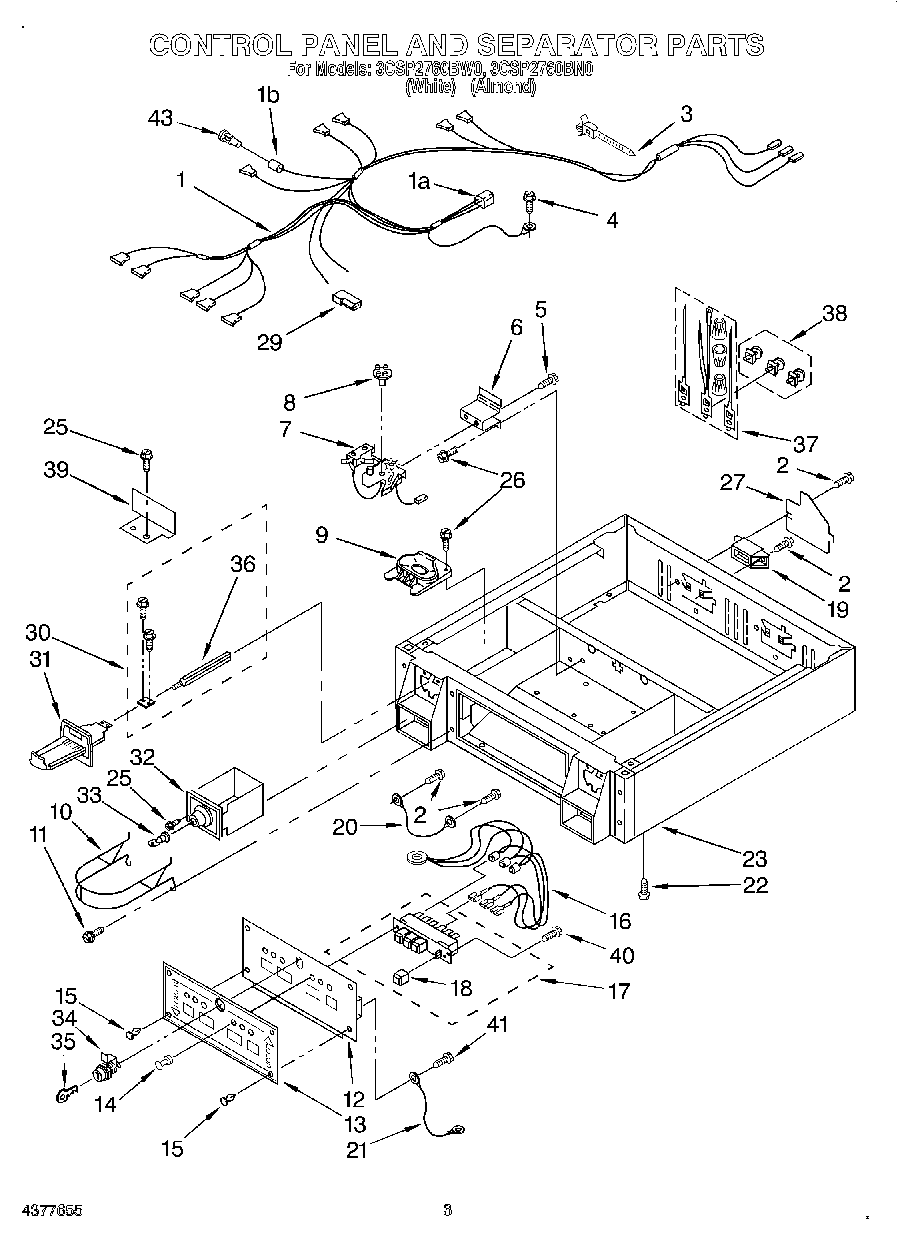

3CSP2760BW0 02 – CONTROL PANEL AND SEPARATOR

Products

Position	Product
1	WP94614 Whirlpool Terminal
1	Receptacle (2)
1	Terminal (2)
1	Terminal (3)
1	Terminal (2)
1	Receptacle
1	Harness, Wire (2) 1A
2	W11676450 Whirlpool Screw
3	WP3391018 Whirlpool Wire Tie
4	W10850756 Whirlpool Screw
6	3390115 Whirlpool Bracket Assembly
7	Timer, 50 Hz. (Incl. 4 Pin Cam)
8	WP343777 Whirlpool Cam
8	WP339855 Whirlpool Cam
8	WP3387974 Whirlpool Cam
9	Funnel, Coin (2)
10	Protector, Slide (2)
11	Screw, 10-32 x 1/2
12	Panel, Control
13	Insert, Decorative
14	Lens, Light (6)
15	Rivet
16	Lights, Indicator (240 Volts)
17	Switch, Pushbutton
18	Button (4)
19	279320 Whirlpool Dryer Rear Terminal Block Kit
20	Strut
21	Wire, Ground
22	3400500 Whirlpool Screw
23	Collar (Almond)
23	Collar
25	WP356418 Whirlpool Screw
26	Screw (8)
27	W11539855 Whirlpool Refrigerator Pump
29	WP596797 Whirlpool Terminal
29	Receptacle, Latching (2-Way) (Uses Terminal 94614)
30	Slide Extension Bag Assembly
31	Slide Mechanism (When Ordering, Specify Number Of Coins And Denomination)
32	Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
33	Key, Money Box (When Ordering, Specify Vender of Money Box Lock)
34	Security Lock & Cam Assembly
35	Key
36	WPL ARI11741A3
37	279318 Whirlpool Terminal
38	279393 Whirlpool Terminal Block Screw and Nut Kit
39	3390424 Whirlpool Extension
40	WP489128 Whirlpool Refrigerator Screw
41	303776 Whirlpool Dishwasher Screw
43	Plug
