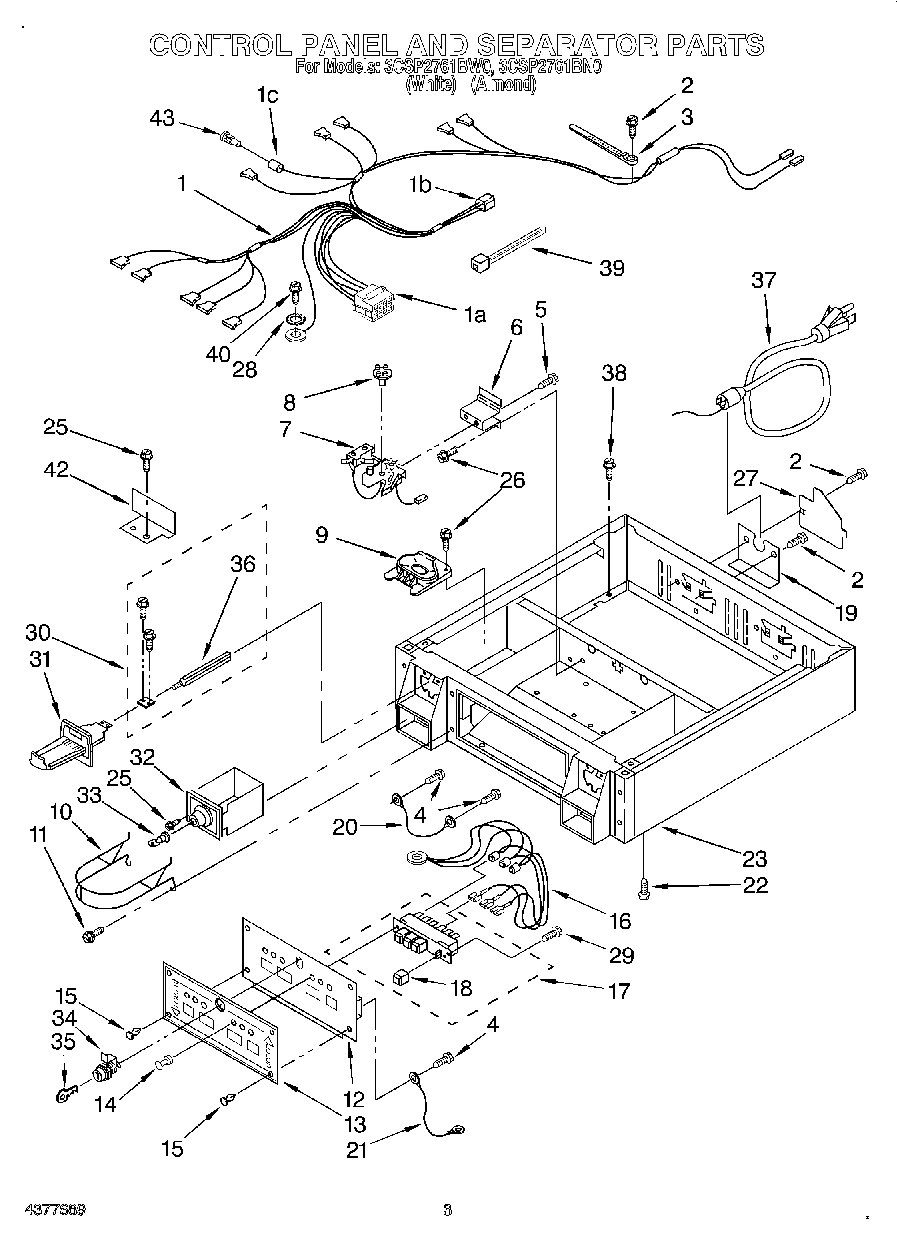

3CSP2761BN0 03 – CONTROL PANEL AND SEPARATOR

Products

Position	Product
1	Receptacle (2) (Uses Terminals 94614)
1	Harness, Wire (2)
1	Receptacle, Latching (2-Way) (Uses Terminal 94614)
1	Receptacle
2	W11676450 Whirlpool Screw
3	WPL 3389969
5	303776 Whirlpool Dishwasher Screw
6	3390115 Whirlpool Bracket Assembly
7	Timer, 50 Hz. (Incl. 4 Pin Cam)
8	WP339855 Whirlpool Cam
8	WP3387974 Whirlpool Cam
8	WP343777 Whirlpool Cam
9	Funnel, Coin (2)
10	Protector, Slide (2)
11	Screw, 10-32 x 1/2
12	Panel, Control
13	Insert, Decorative
14	Lens, Light (6)
15	Rivet
16	Lights, Indicator (240 Volts)
17	Switch, Pushbutton
18	Button (4)
19	3390189 Whirlpool Relief Valve
20	Strut
21	Wire, Ground
22	3400500 Whirlpool Screw
23	Collar
23	Collar (Almond)
25	WP356418 Whirlpool Screw
26	Screw (8)
27	W11539855 Whirlpool Refrigerator Pump
28	Retainer, Terminal (2)
29	WP489128 Whirlpool Refrigerator Screw
30	Slide Extension Bag Assembly
31	Slide Mechanism (When Ordering, Specify Number Of Coins And Denomination)
32	Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
33	Key, Money Box (When Ordering, Specify Vender of Money Box Lock)
34	Security Lock & Cam Assembly
35	Key, Service Door
36	Bolt, Slide Mechanism
37	Cord, Power
38	WP489069 Whirlpool Compactor Screw
39	WP3391018 Whirlpool Wire Tie
40	W10850756 Whirlpool Screw
42	3390424 Whirlpool Extension
43	Plug
