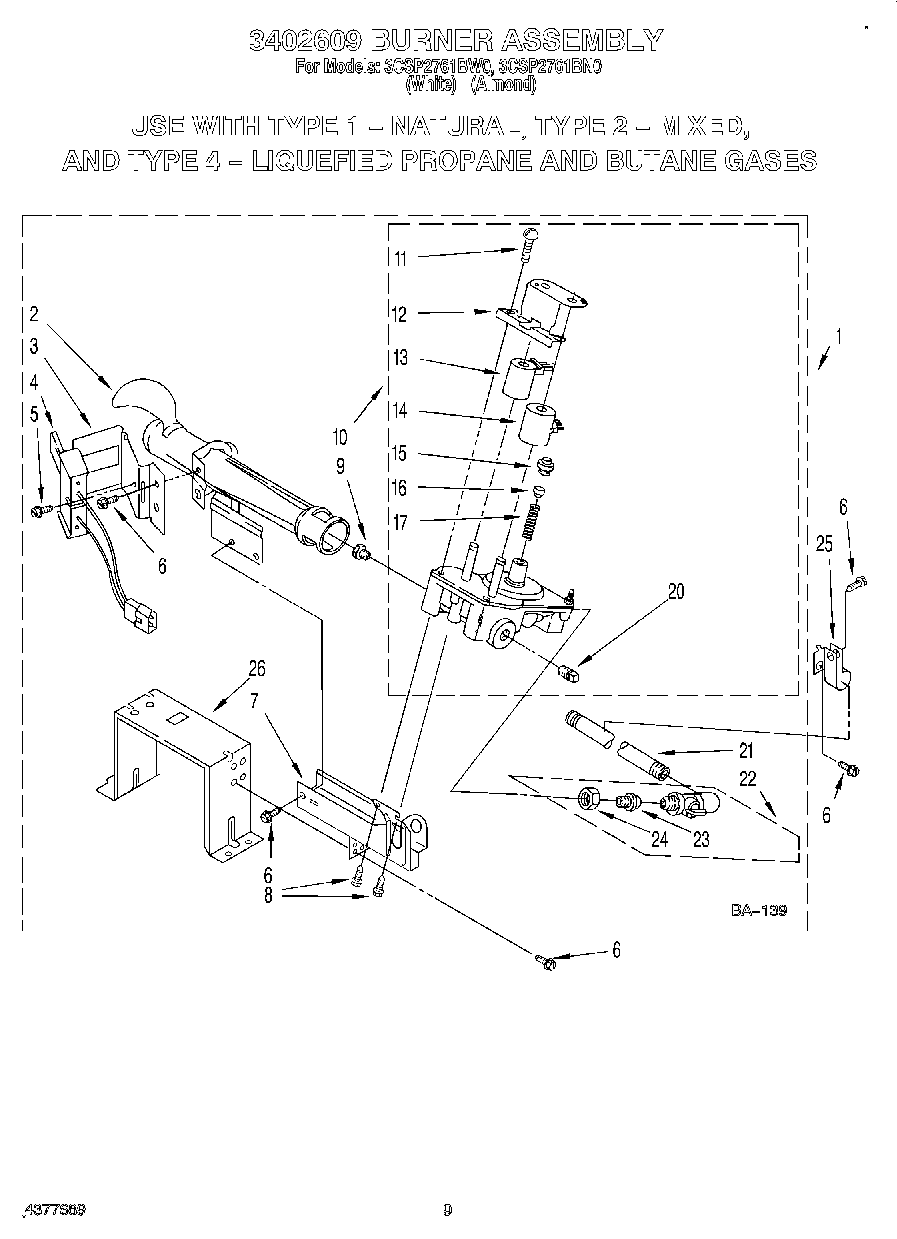

3CSP2761BN0 07 – 3402609 BURNER ASSEMBLY

3CSP2761BN0 07 – 3402609 BURNER ASSEMBLY

Written by

in

3CSP2761BN0 07 – 3402609 BURNER ASSEMBLY

Products

PositionProduct
1Burner Assembly 50 Hz. (Type 1, 2 & 3) (White Rodgers)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9Orifice, Burner (Type 2)
9Orifice, Burner (Type 1)
10WP8281918 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
13WP307930 Whirlpool Coil Valve
14WPY307931 Whirlpool Valve Coil
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
21Pipe, Gas Supply
22697441 Whirlpool Valve
233393767 Whirlpool Pipe
24Nut, Compression
253387561 Whirlpool Clamp
26Bracket, Support
2649572A Whirlpool Dryer Propane Gas Conversion Kit
