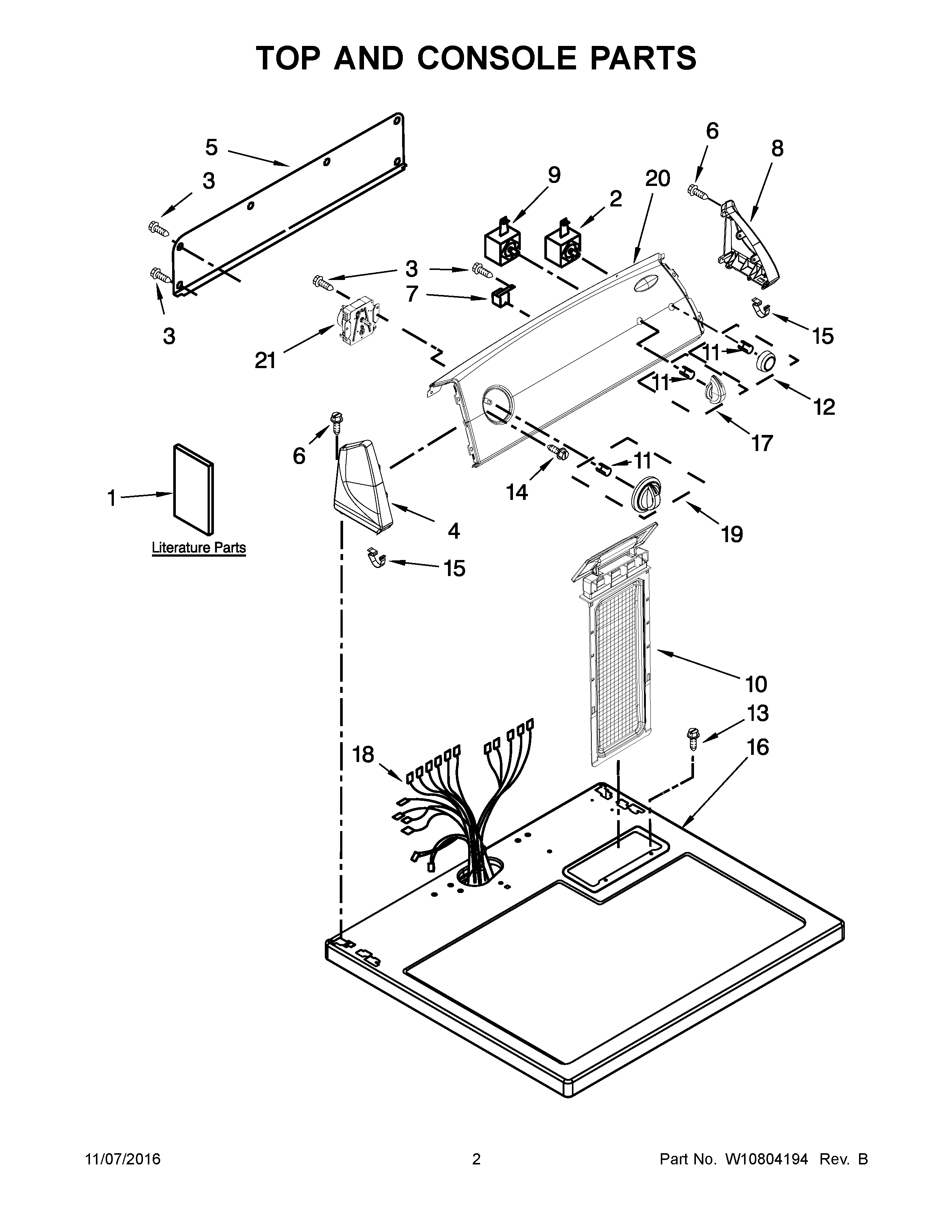

3DWED4800YQ2 02 – TOP AND CONSOLE PARTS

3DWED4800YQ2 02 – TOP AND CONSOLE PARTS

Written by

in

3DWED4800YQ2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1INSTRUCTIONS, INSTALLATION
1AUSE & CARE GUIDE
2WPW10112668 Whirlpool Relay Push to Start
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5W10103406 Whirlpool Rear Panel
6WP90767 Whirlpool Screw
73952439 Whirlpool Buzzer
8WP8565954 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WPW10034790 Whirlpool Knob
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP8312709 Whirlpool Endcap Clip
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18HARNESS, MAIN
19TIMER KNOB ASSEMBLY
20WPW10464658 Whirlpool Control Panel
21W10642931 Whirlpool Timer Assembly
