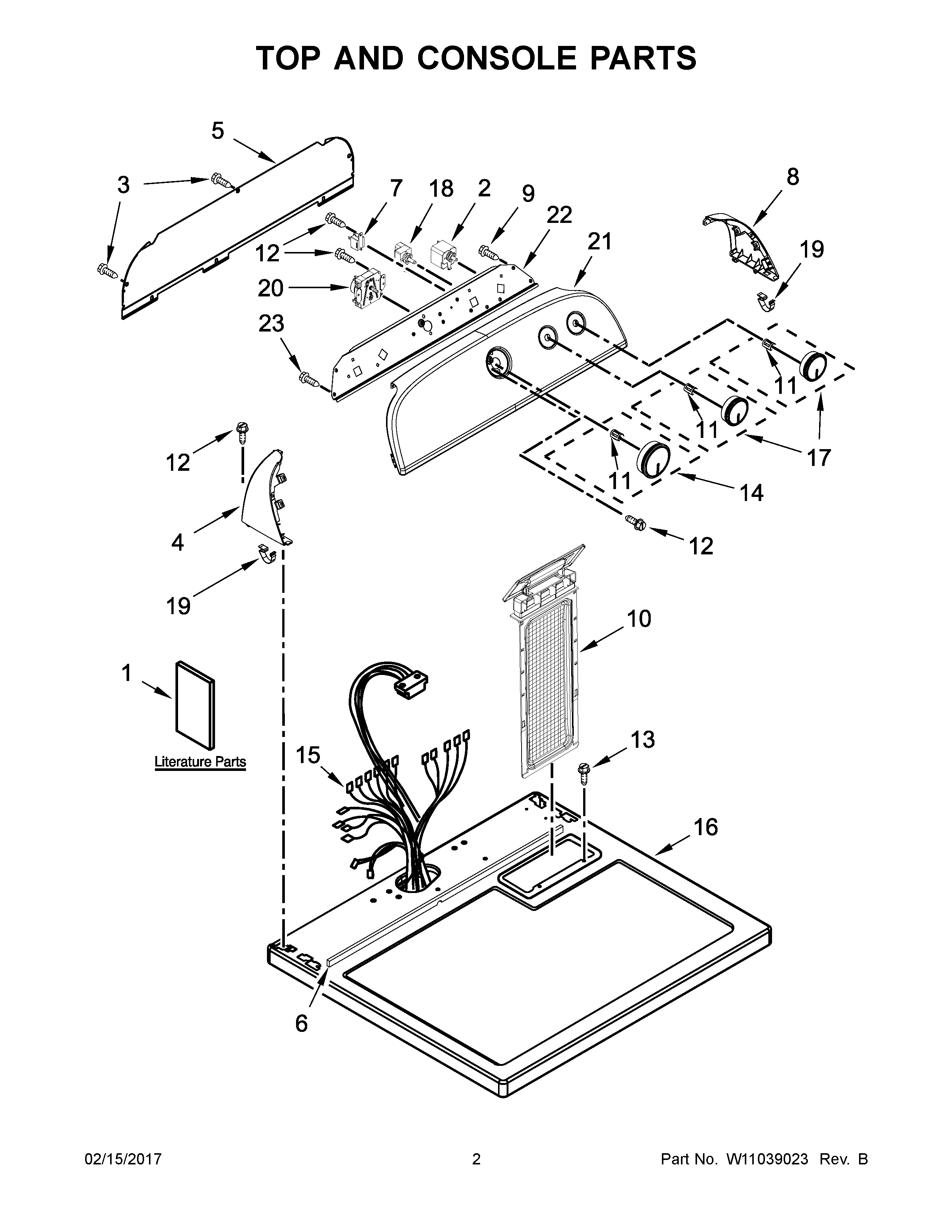

3DWED4815FW0 02 – TOP AND CONSOLE PARTS

3DWED4815FW0 02 – TOP AND CONSOLE PARTS

Written by

in

3DWED4815FW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AINSTALLATION INSTRUCTIONS
1CENERGY GUIDE
1USE AND CARE GUIDE
1BWIRING DIAGRAM WOD EXPORT WGII
2WPW10117655 Whirlpool Dryer Start Switch
3WP693995 Whirlpool Screw
4WPW10520782 Whirlpool Panel
5W10556829 Whirlpool Rear Panel
6W10316616 Whirlpool Seal
73952439 Whirlpool Buzzer
8WPW10520780 Whirlpool Panel
9WP3400818 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10756270 Whirlpool Dryer Timer Knob
15MAIN, WIRING HARNESS
16TOP (WHITE)
18W11050715 Whirlpool Switch
19WP8312709 Whirlpool Endcap Clip
20WPW10185982 Whirlpool Timer
21ASSEMBLY, PANEL & BRACKET (WHITE)
22BRACKET, CONTROL
23W10850756 Whirlpool Screw
