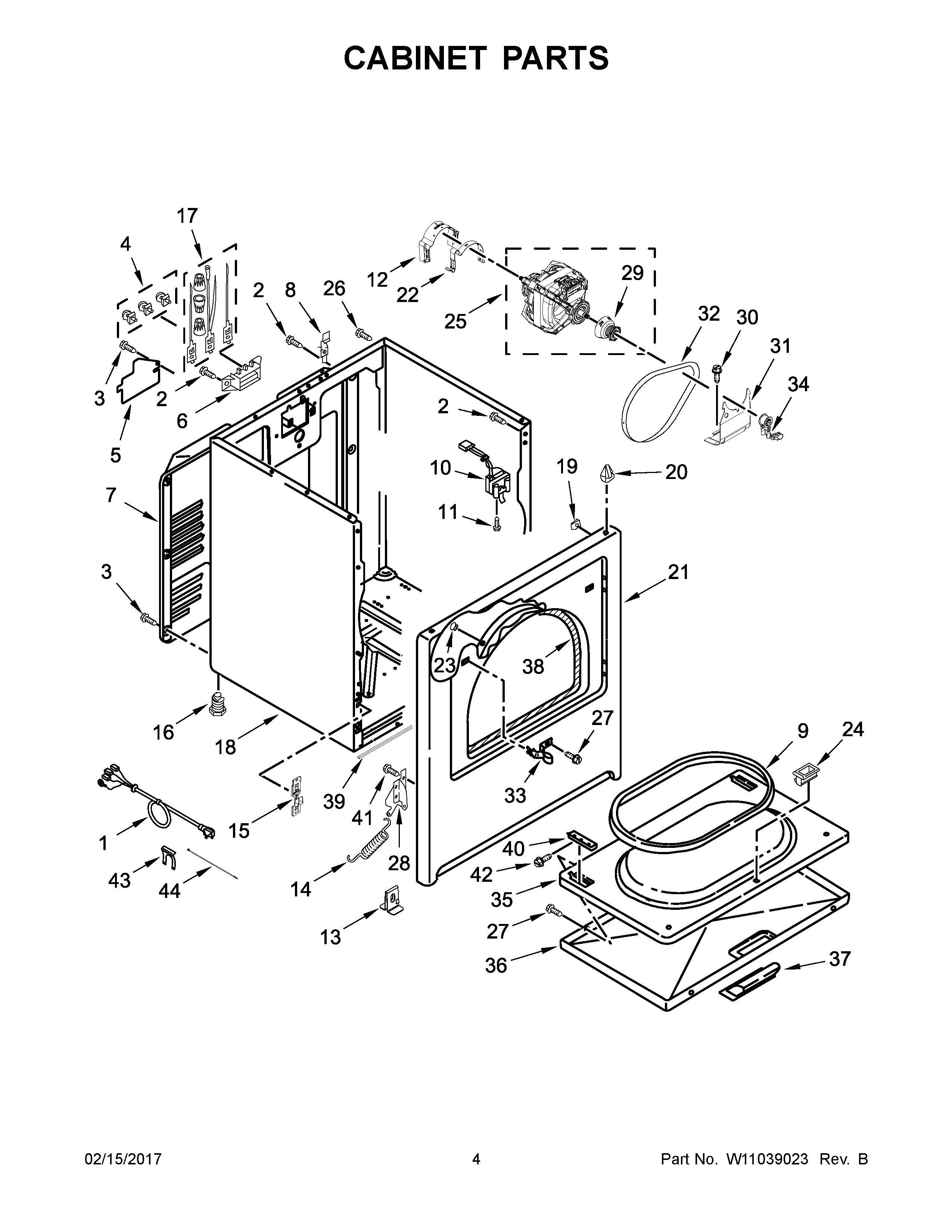

3DWED4815FW0 03 – CABINET PARTS

Products

Position	Product
1	W11710615 Whirlpool Cord-Power
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	279393 Whirlpool Terminal Block Screw and Nut Kit
5	COVER, TERMINAL BLOCK
6	WP3397659 Whirlpool Terminal Block
7	PANEL. REAR
8	WP8066217 Whirlpool Hinge
9	W10906683 Whirlpool Door Seal
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404162 Whirlpool Clamp
13	W10575896 Whirlpool Clip
14	WPW10041960 Whirlpool Door Spring
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	279443 Whirlpool Primary Panel
22	CLAMP
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
26	WP90767 Whirlpool Screw
27	WP488627 Whirlpool Refrigerator Screw
28A	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
29	W11618508 Whirlpool Drive Motor
30	3400500 Whirlpool Screw
31	WP348780 Whirlpool Base
32	341241 Whirlpool Dryer Drum Belt
33	279570 Whirlpool Dryer Door Latch Kit
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	WP695737 Whirlpool Door
36	W10861223 Whirlpool Door Appliance
37	W10861225 Whirlpool Dryer White Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	W11596046 Whirlpool Seal
40	W11252547 Whirlpool Clip Assembly
41	Screw, 10-32 x 1/2
42	WP308685 Whirlpool Microwave Screw
43	W11704629 Whirlpool Clamp
44	WPW10339879 Whirlpool Wire Tie
