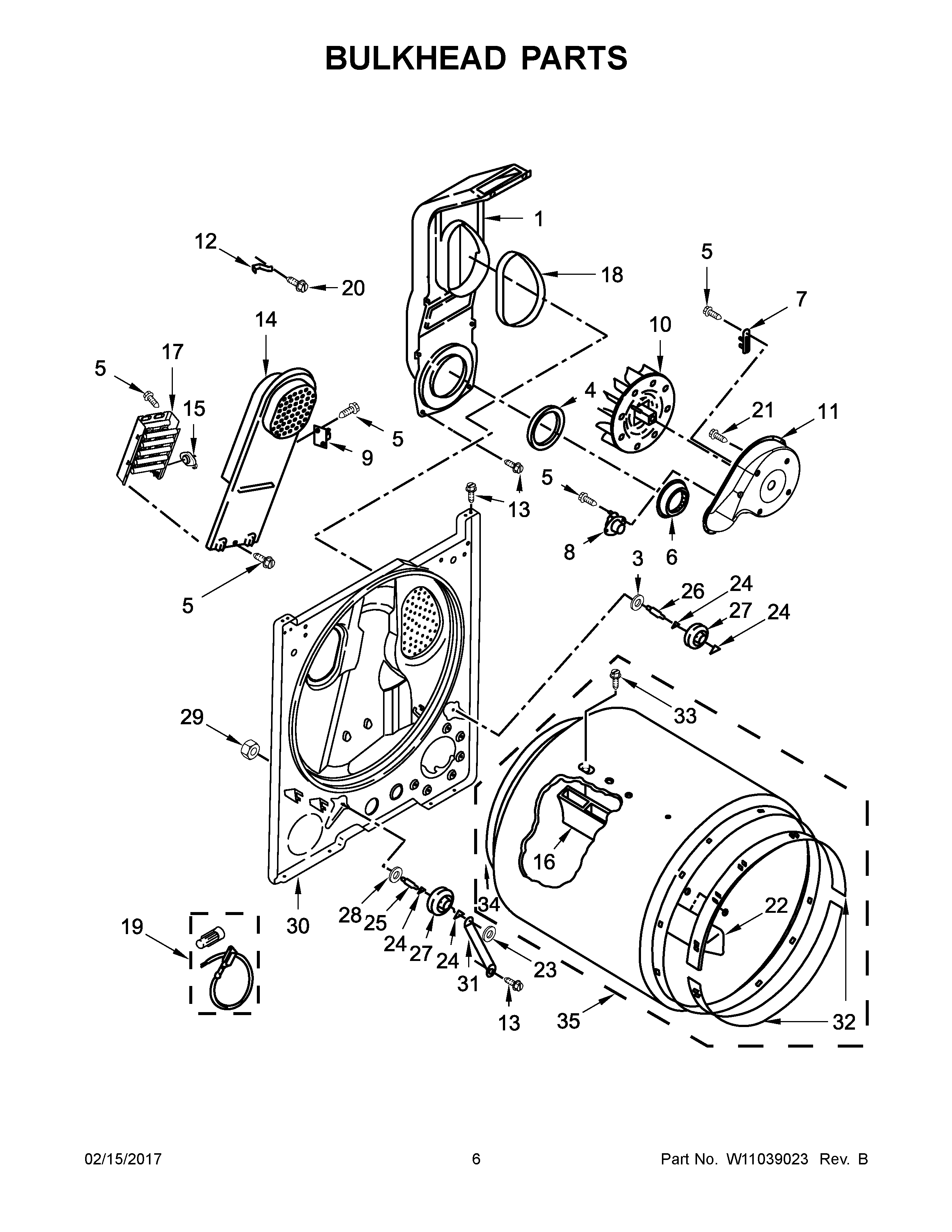

3DWED4815FW0 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387137 Whirlpool Thermostat
9	W11034847 Whirlpool Thermal Cutoff
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	BAFFLE-DRM
17	W11026484 Whirlpool Element
18	SEAL
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WP489463 Whirlpool Refrigerator Screw
21	WP488729 Whirlpool Refrigerator Door Screw
22	WP3403636 Whirlpool Drum Baffle
23	WP90296 Whirlpool Clip
24	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
25	SHAFT SUPPORT ROLLER DRYER
26	SHAFT SUPPORT ROLLER DRYER
27	349241T Whirlpool Dryer Drum Support Roller Kit
28	WP348197 Whirlpool Washer Assembly
29	W11229607 Whirlpool Nut
30	W11178668 Whirlpool Bulkhead
31	W11684613 Whirlpool Bracket
32	279441 Whirlpool Front Bearing Ring
33	W10853898 Whirlpool Screw
34	W11491417 Whirlpool Seal
35	W10899578 Whirlpool Dryer Drum Assembly
