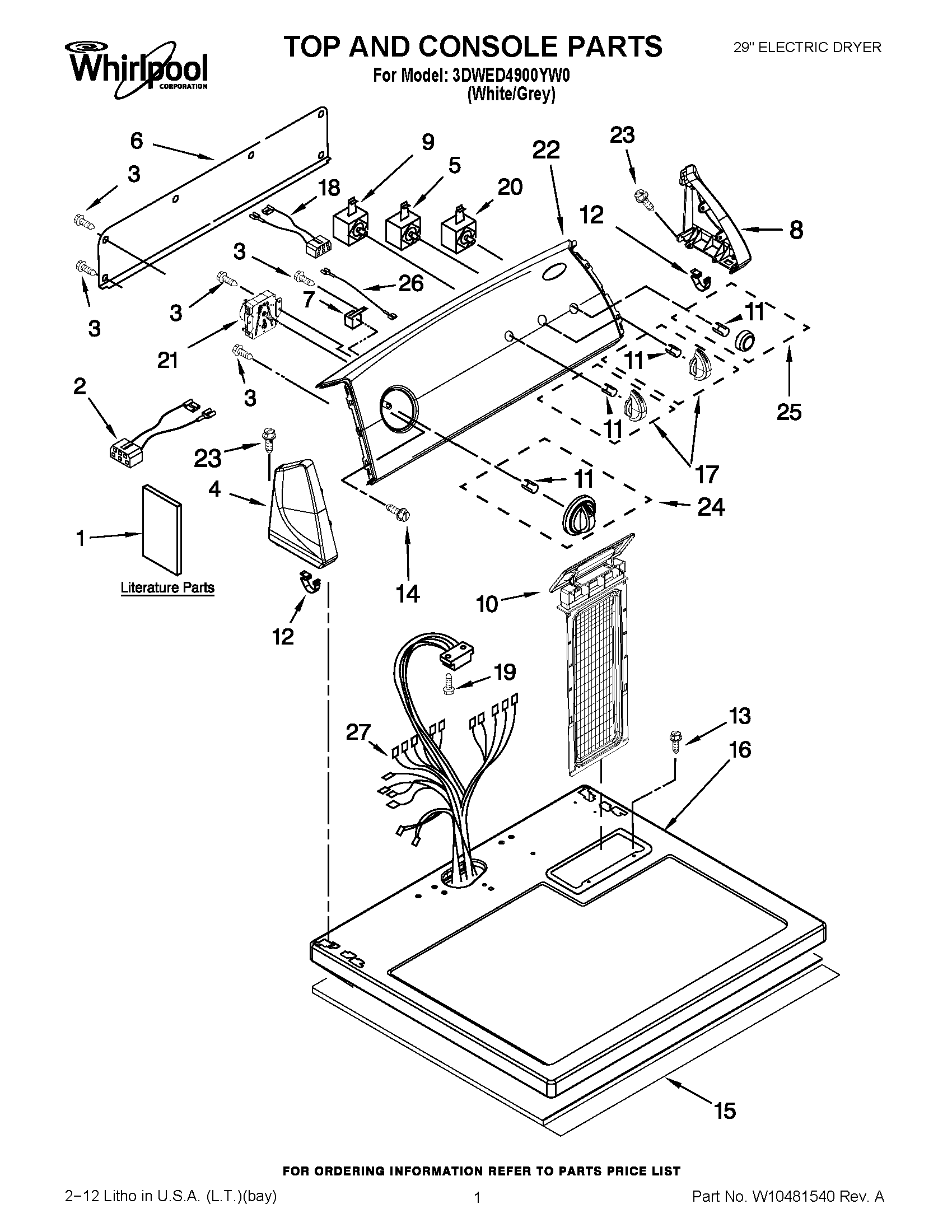

3DWED4900YW0 01 – TOP AND CONSOLE PARTS

3DWED4900YW0 01 – TOP AND CONSOLE PARTS

Written by

in

3DWED4900YW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1USE & CARE GUIDE
1INSTRUCTION INSTALLATION
2W10113080 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
6W10103406 Whirlpool Rear Panel
73952439 Whirlpool Buzzer
8WP8565954 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15W10123956 Whirlpool Sound Absorber
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
188539893 Whirlpool Wire Harness
19SCREW
20WPW10112668 Whirlpool Relay Push to Start
21WPW10116281 Whirlpool Timer
22WPW10464677 Whirlpool Control Panel
23WP90767 Whirlpool Screw
24TIMER KNOB ASSEMBLY
25WPW10034790 Whirlpool Knob
263397695 Whirlpool Wire Harness
27WPW10386312 Whirlpool Wire Harness
