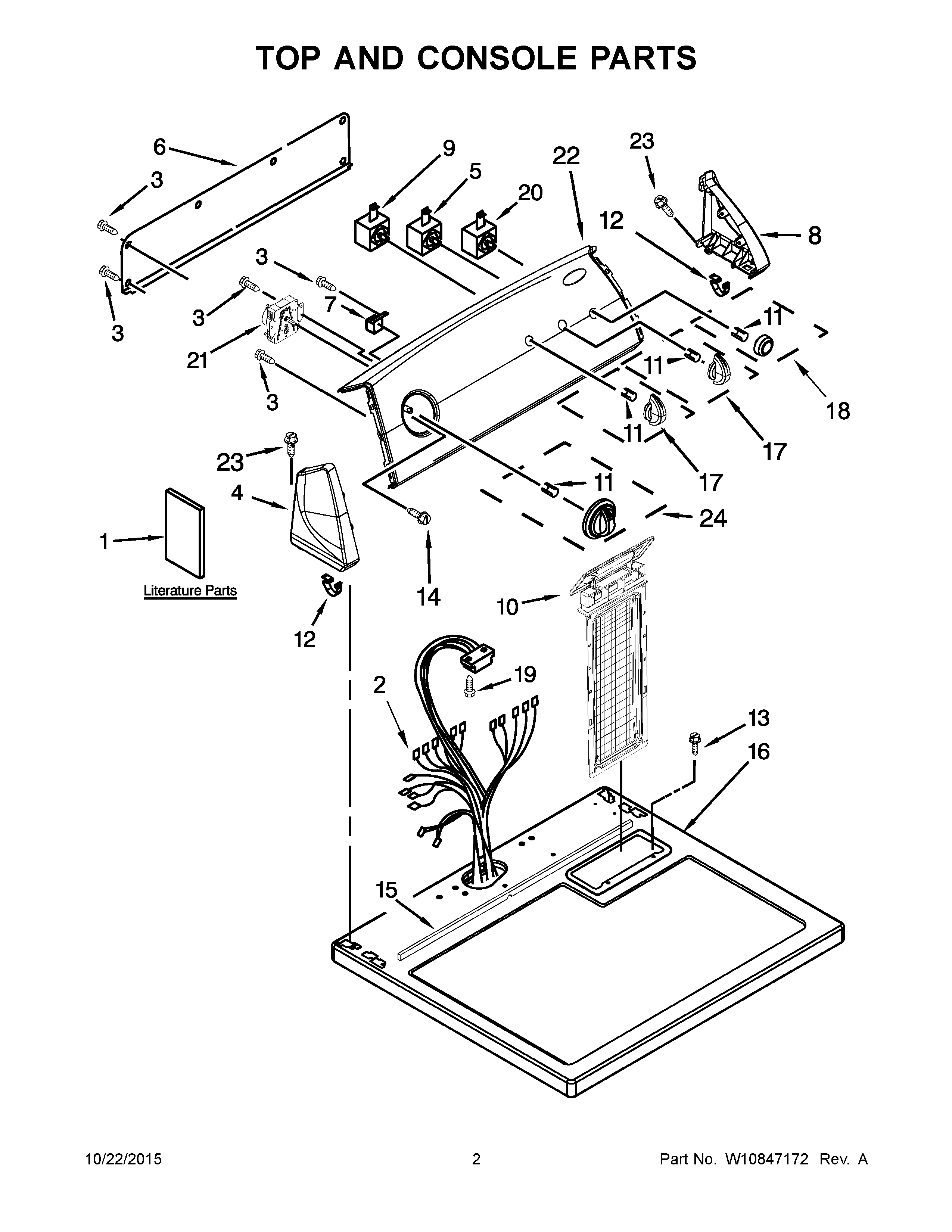

3DWED4900YW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1INSTRUCTIONS, INSTALLATION
1AUSE & CARE GUIDE
2HARNESS, MAIN
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
6W10103406 Whirlpool Rear Panel
73952439 Whirlpool Buzzer
8WP8565954 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14WP3400818 Whirlpool Screw
15W10316616 Whirlpool Seal
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18WPW10034790 Whirlpool Knob
19SCREW
20WPW10112668 Whirlpool Relay Push to Start
21W10642931 Whirlpool Timer Assembly
22WPW10464677 Whirlpool Control Panel
23WP90767 Whirlpool Screw
24TIMER KNOB ASSEMBLY
