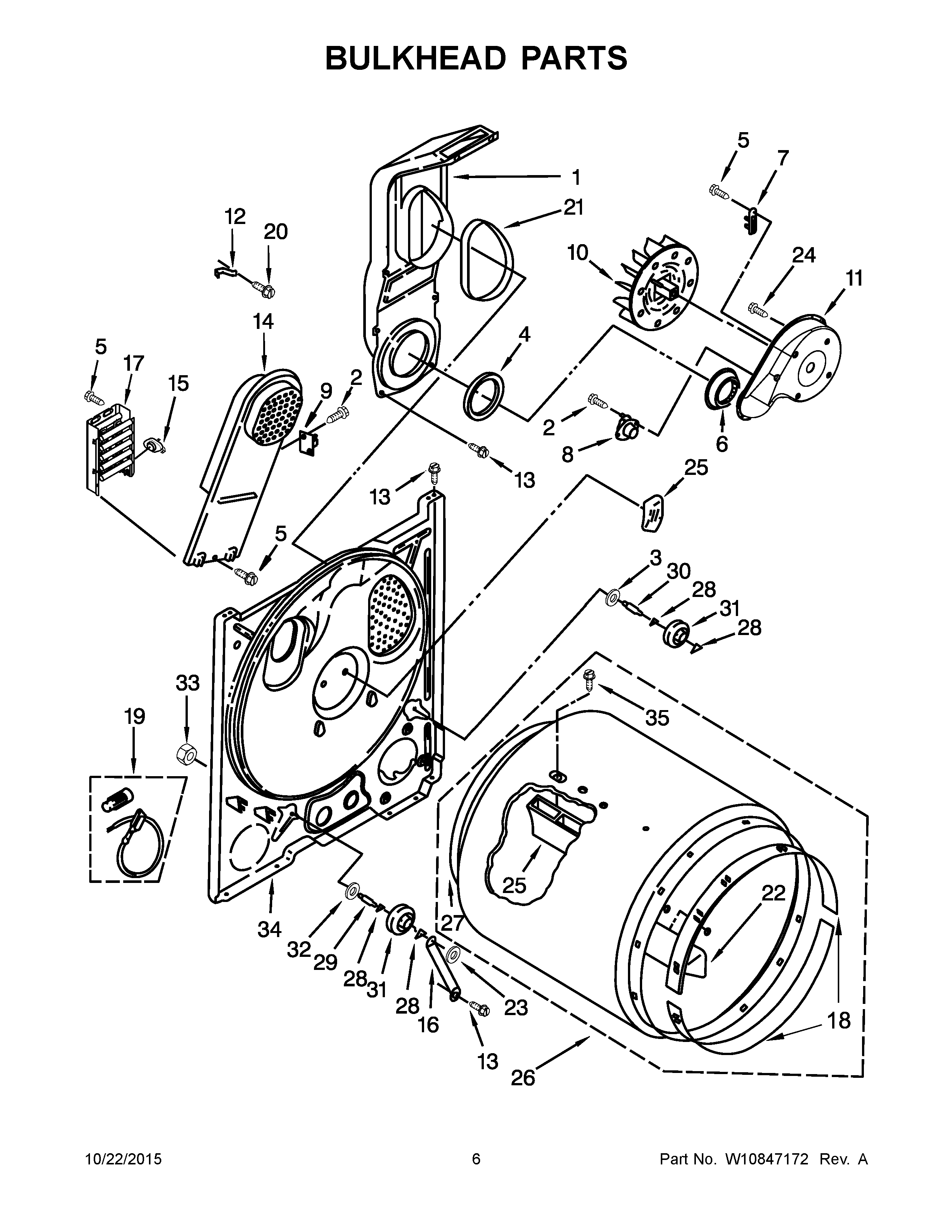

3DWED4900YW2 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387137 Whirlpool Thermostat
9	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	W11684613 Whirlpool Bracket
17	279838 Whirlpool Dryer Heating Element 5400W
18	279441 Whirlpool Front Bearing Ring
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WP489463 Whirlpool Refrigerator Screw
21	SEAL
22	WP3403636 Whirlpool Drum Baffle
23	WP90296 Whirlpool Clip
24	WP488729 Whirlpool Refrigerator Door Screw
25	BAFFLE-DRM
26	W10899578 Whirlpool Dryer Drum Assembly
27	W10612022 Whirlpool Felt Seal
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	SHAFT SUPPORT ROLLER DRYER
30	SHAFT SUPPORT ROLLER DRYER
31	349241T Whirlpool Dryer Drum Support Roller Kit
32	WP348197 Whirlpool Washer Assembly
33	W11229607 Whirlpool Nut
34	W11178668 Whirlpool Bulkhead
35	W10853898 Whirlpool Screw
