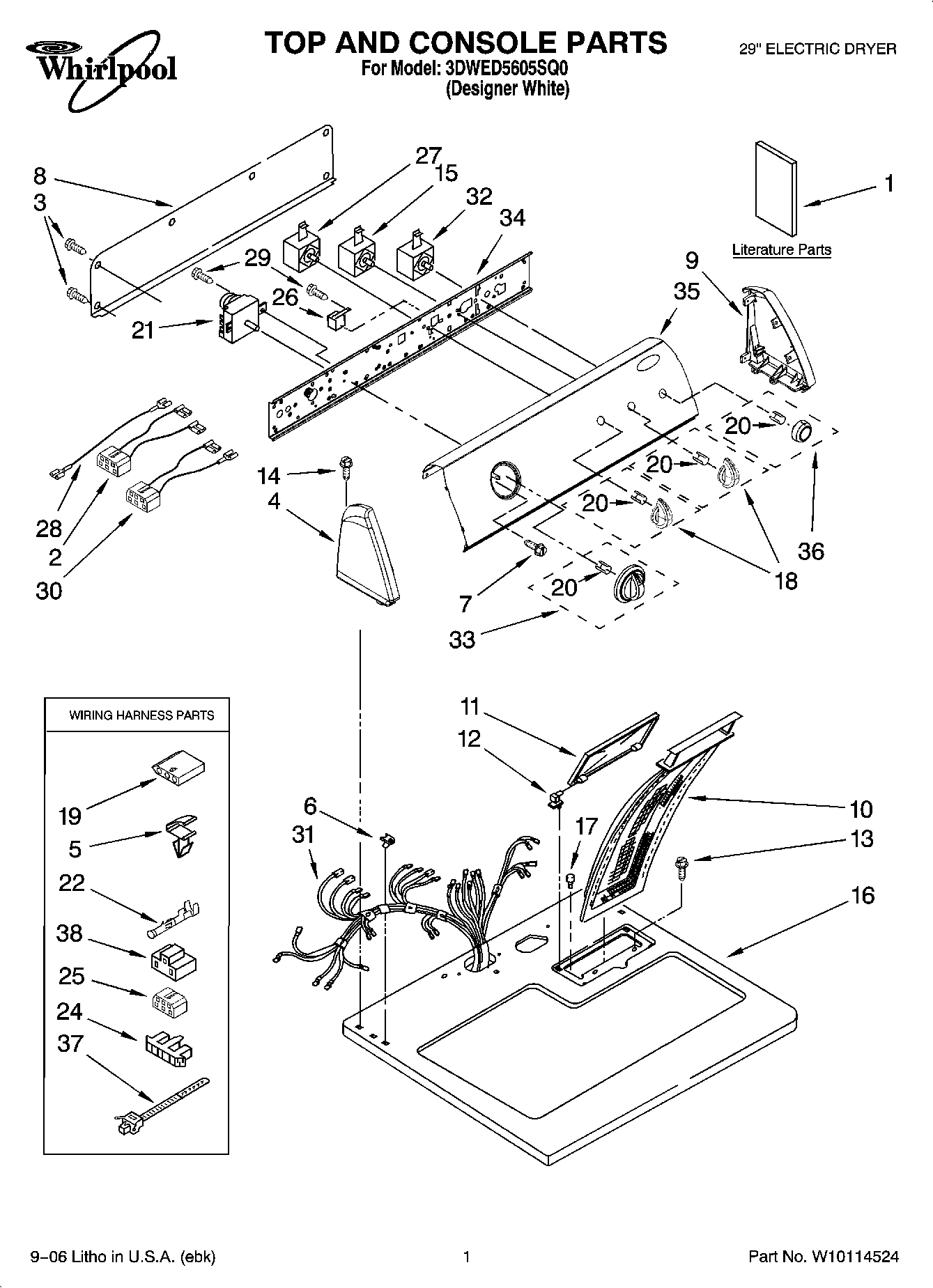

3DWED5605SQ0 01 – TOP AND CONSOLE PARTS

3DWED5605SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

3DWED5605SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WPL 677818
1Use & Care Guide
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1Installation Instructions (Spanish)
1Installation Instructions (English)
28539893 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
5WP3394427 Whirlpool Clip
6WP357213 Whirlpool Hinge Stopper
73400859 Whirlpool Screw
8W10103406 Whirlpool Rear Panel
9W10820038 Whirlpool Endcap
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15W10168170 Whirlpool Switch
16Top
17Bumper, Lint Lid
18Knob, Control
193936144 Whirlpool Connector
20WP8536939 Whirlpool Spring Clip
21WP3406282 Whirlpool Timer
22WP94614 Whirlpool Terminal
24Connector, Timer
25Block, Disconnect
263952439 Whirlpool Buzzer
27W10168169 Whirlpool Switch
28Wire, Jumper (Black)
29WP90767 Whirlpool Screw
303397695 Whirlpool Wire Harness
31Harness, Wiring
32WPW10112633 Whirlpool Relay Parts
33WP8566061 Whirlpool Knob
34Bracket, Control
35Panel, Control
36WP8566065 Whirlpool Knob
37Tie, Cable
383401144 Whirlpool Connector
