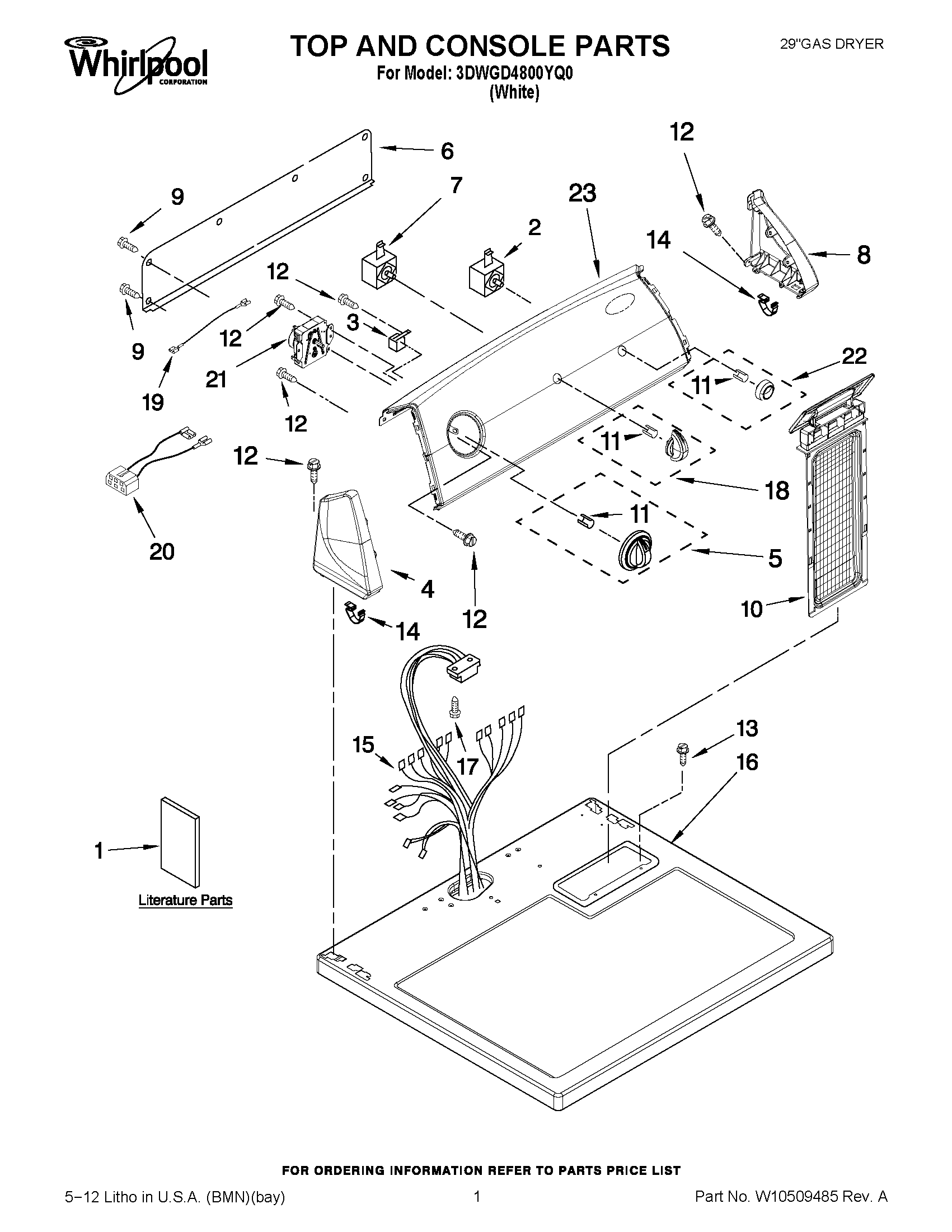

3DWGD4800YQ0 01 – TOP AND CONSOLE PARTS

3DWGD4800YQ0 01 – TOP AND CONSOLE PARTS

Written by

in

3DWGD4800YQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTRUCTION INSTALLATION
1Wiring Diagram
1USE & CARE GUIDE
2WPW10112668 Whirlpool Relay Push to Start
33952439 Whirlpool Buzzer
4WP8565957 Whirlpool Endcap Assembly
5TIMER KNOB ASSEMBLY
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8WP8565954 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
15HARNESS, WIRING
16WP8563663 Whirlpool Top Assembly
17W11693756 Whirlpool Screw Assembly
18Knob, Control (3)
19W10113080 Whirlpool Wire Harness
208539893 Whirlpool Wire Harness
21ASSEMBLY, TIMER (60 HZ.)
22WPW10034790 Whirlpool Knob
23WPW10464658 Whirlpool Control Panel
