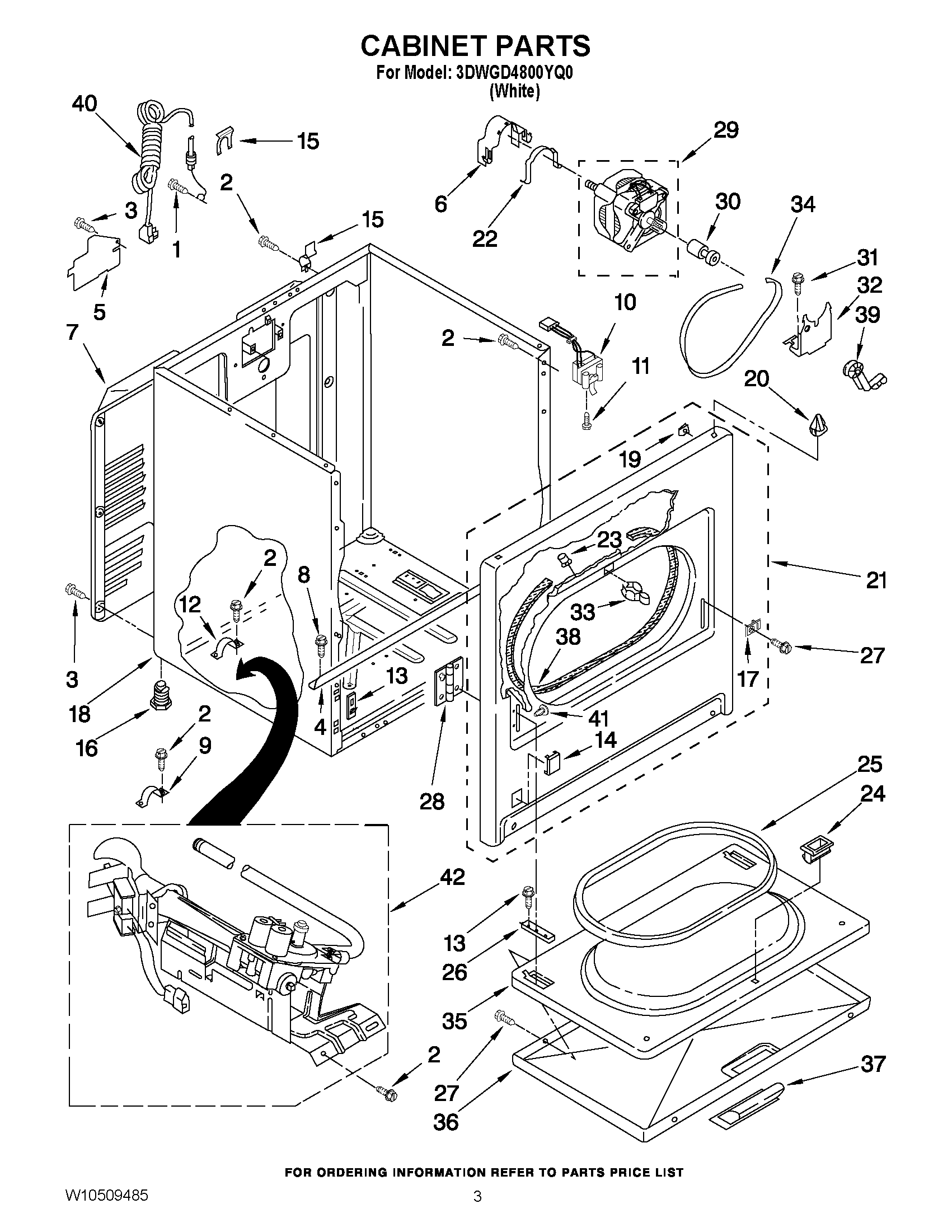

3DWGD4800YQ0 02 – CABINET PARTS

3DWGD4800YQ0 02 – CABINET PARTS

Written by

in

3DWGD4800YQ0 02 – CABINET PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIWPW10476822 Whirlpool Adapter
NI49621 Whirlpool Leveling Feet
NIWPW10476820 Whirlpool Adapter
1W10850756 Whirlpool Screw
2SCREW
3WP693995 Whirlpool Screw
4BRACKET, CABINET
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
8WP3390631 Whirlpool Screw
9341029 Whirlpool Clamp
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
13W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
14W10811916 Whirlpool Plug
15W11712577 Whirlpool Clip
17WP3403630 Whirlpool Plug
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP8066092 Whirlpool Panel Clip
21W10248059 Whirlpool Panel
22CLAMP
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25SEAL-DOOR DRYER
26W11252547 Whirlpool Clip Assembly
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
30W11618508 Whirlpool Drive Motor
313400500 Whirlpool Screw
32WP348780 Whirlpool Base
33W11429589 Whirlpool Strike
34341241 Whirlpool Dryer Drum Belt
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
37WPW10549553 Whirlpool Dryer Door Handle
38W11035878 Whirlpool Bearing and Seal
39WP691366 Whirlpool Dryer Idler Pulley Assembly
40WPW10476824 Whirlpool Power Cord
41WP3404413 Whirlpool Plug
42BURNER ASSEMBLY, 60 HZ. (SEE PAGES 7 & 8 FOR FURTHER BURNER BREAKDOWN)
