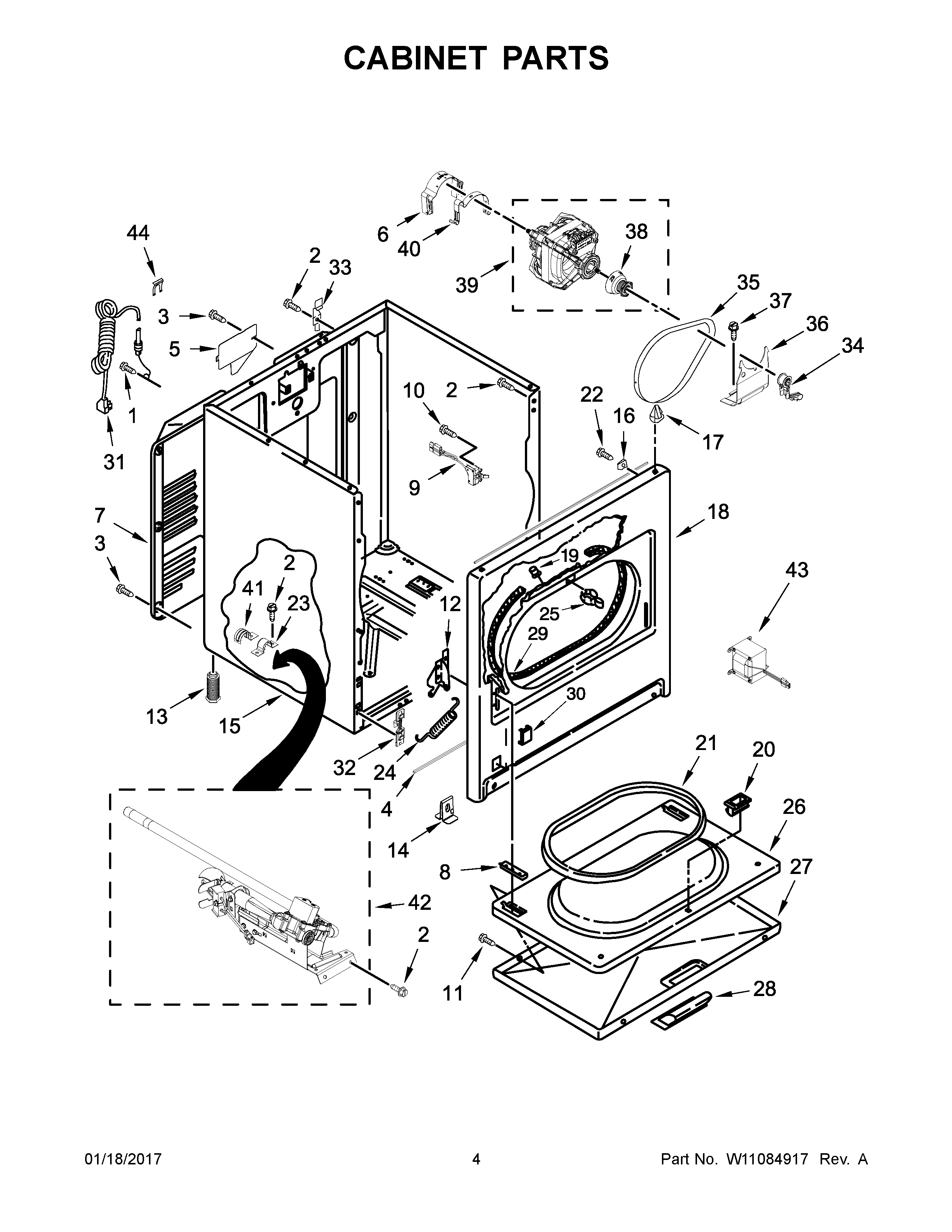

3DWGD4815FW0 03 – CABINET PARTS

Products

Position	Product
NI	WPW10476822 Whirlpool Adapter
NI	10A CORD LOCK
NI	WPW10476820 Whirlpool Adapter
1	Screw, 10-32 x 1/2
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	W11596046 Whirlpool Seal
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	W11252547 Whirlpool Clip Assembly
9	SWITCH-DOOR DRYER
10	WP3395530 Whirlpool Screw
11	WP488627 Whirlpool Refrigerator Screw
12A	WP8066057 Whirlpool Door Hinge
12	WP8066056 Whirlpool Door Hinge
13	49621 Whirlpool Leveling Feet
14	W10575896 Whirlpool Clip
15	8533643 Whirlpool Dryer White Cabinet
16	WP98234 Whirlpool Nut
17	WP8066092 Whirlpool Panel Clip
18	279740 Whirlpool Panel Primary with O/S2
19	279220 Whirlpool Clip
20	WP3389441 Whirlpool Door Catch
21	W10906683 Whirlpool Door Seal
22	WP308685 Whirlpool Microwave Screw
23	341029 Whirlpool Clamp
24	WPW10041960 Whirlpool Door Spring
25	279570 Whirlpool Dryer Door Latch Kit
26	WP695737 Whirlpool Door
27	W10861223 Whirlpool Door Appliance
28	W10861225 Whirlpool Dryer White Door Handle
29	W11035878 Whirlpool Bearing and Seal
30	W10811916 Whirlpool Plug
31	WPW10476824 Whirlpool Power Cord
32	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33	WP8066217 Whirlpool Hinge
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	W11025122 Whirlpool Belt
36	WP348780 Whirlpool Base
37	3400500 Whirlpool Screw
38	W11618508 Whirlpool Drive Motor
40	CLAMP
41	CLAMP, PIPE
42	W10823508 Whirlpool Gas Burner
43	W10851673 Whirlpool Transformer
44	W11712577 Whirlpool Clip
