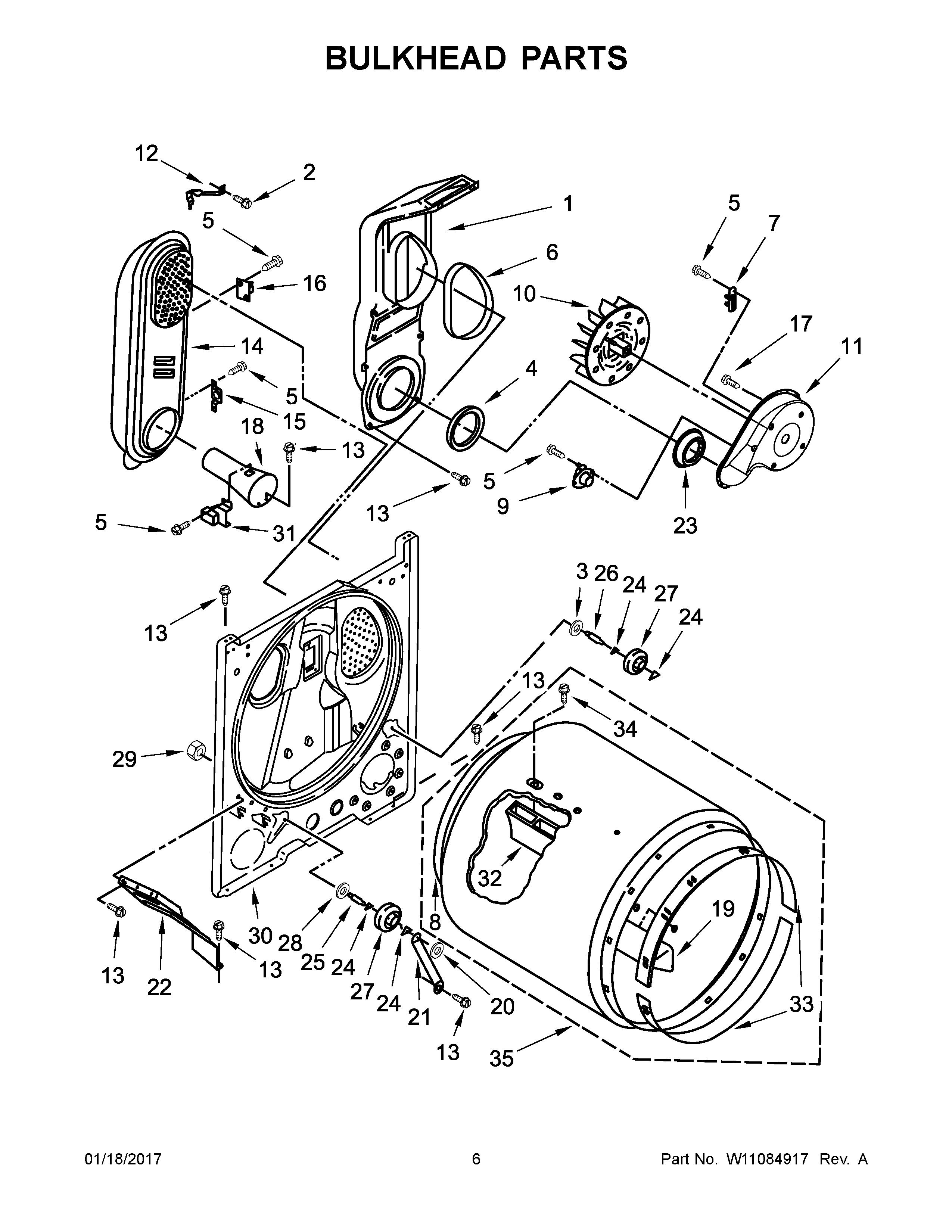

3DWGD4815FW0 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	SEAL
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	W10612022 Whirlpool Felt Seal
9	WP3387137 Whirlpool Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	WP3390631 Whirlpool Screw
14	279980 Whirlpool Box
15	W11050897 Whirlpool Dryer High Limit Thermostat
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP8066049 Whirlpool Funnel Assembly
19	WP3403636 Whirlpool Drum Baffle
20	WP90296 Whirlpool Clip
21	W11684613 Whirlpool Bracket
22	W11398682 Whirlpool Bracket
23	W11233063 Whirlpool Shield Assembly
24	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
25	SHAFT SUPPORT ROLLER DRYER
26	SHAFT SUPPORT ROLLER DRYER
27	349241T Whirlpool Dryer Drum Support Roller Kit
28	WP348197 Whirlpool Washer Assembly
29	W11229607 Whirlpool Nut
30	W11178668 Whirlpool Bulkhead
31	WP338906 Whirlpool Dryer Gas Sensor
32	BAFFLE-DRM
33	279441 Whirlpool Front Bearing Ring
34	W10853898 Whirlpool Screw
35	W10899578 Whirlpool Dryer Drum Assembly
