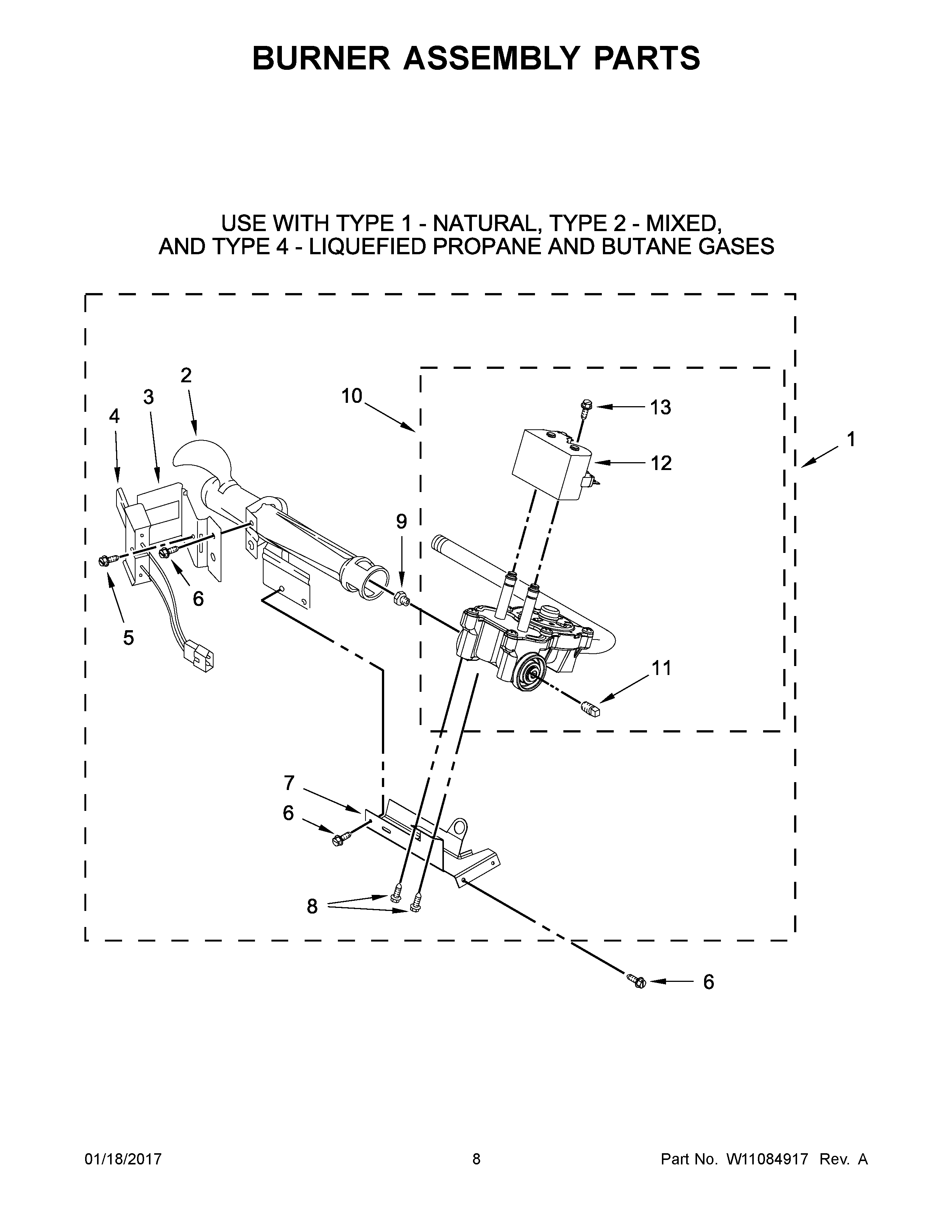

3DWGD4815FW0 05 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	49572A Whirlpool Dryer Propane Gas Conversion Kit
1	BURNER ASSEMBLY (50 HZ) (TYPE 1 AND 2)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP234826 Whirlpool Gas Orifice
10	W11094981 Whirlpool Gas Valve
11	W10295523 Whirlpool Plug
12	COIL, 50 HZ.
13	326049536 Whirlpool Screw
