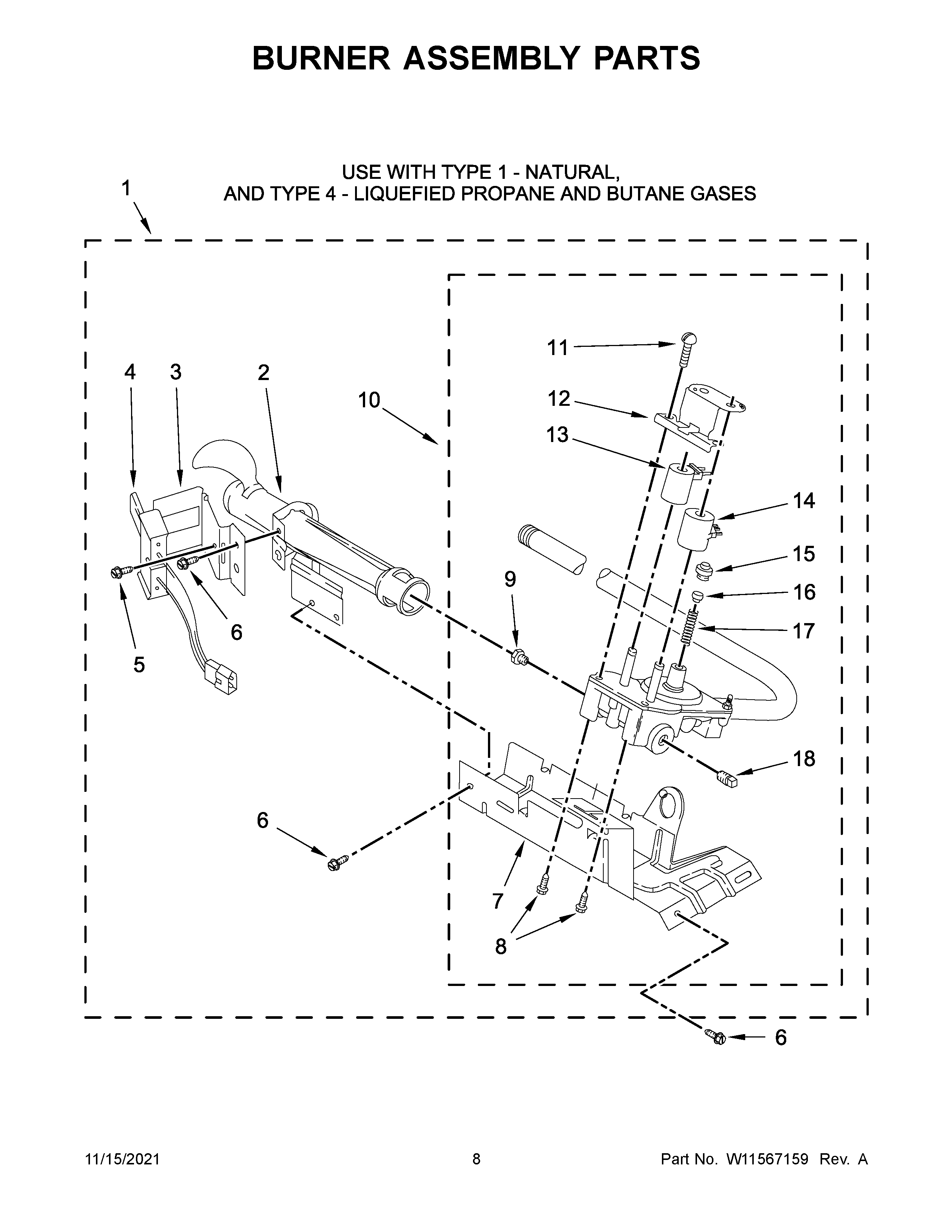

3DWGD4815FW1 05 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	49572A Whirlpool Dryer Propane Gas Conversion Kit
NI	CABINET (NOT A SERVICEABLE PART)
1	BURNER ASSEMBLY (50 HZ) (TYPE 1 AND 2)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	ORIFICE, BURNER TYPE 1
10	WP8281918 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
13	WP307930 Whirlpool Coil Valve
14	WPY307931 Whirlpool Valve Coil
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
18	W10295523 Whirlpool Plug
