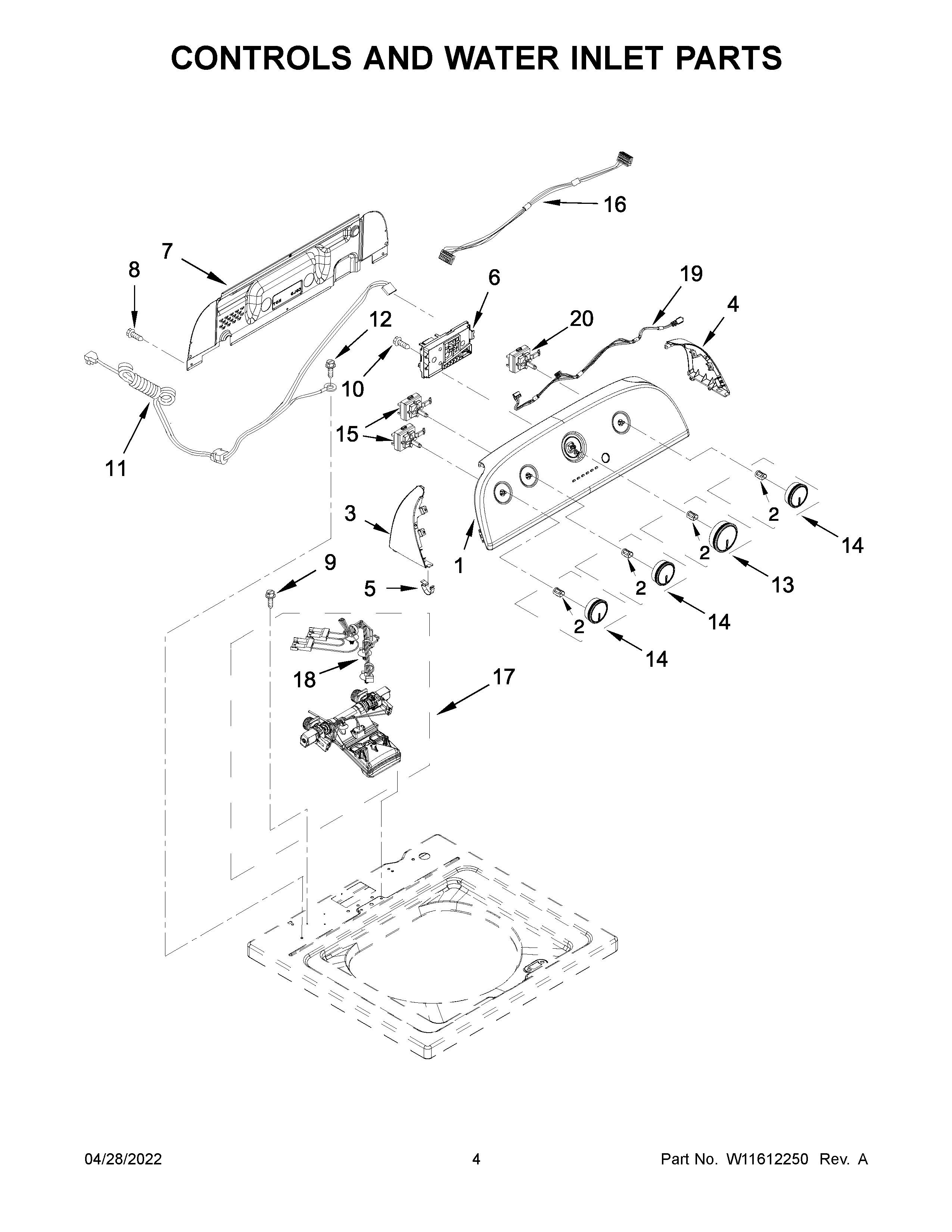

3DWTW3000FW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NI10A CORD LOCK
NICORD ADAPTER, EUROPEAN
NIWPW10476820 Whirlpool Adapter
NIWPW10476822 Whirlpool Adapter
NIWPW10475423 Whirlpool Adapter
1PANEL, CONSOLE
2WP688805 Whirlpool Spring Clip
3END CAP (LEFT) (WHITE)
4END CAP (RIGHT) (WHITE)
5WP8312709 Whirlpool Endcap Clip
6W11608067 Whirlpool Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8W11568617 Whirlpool Screw
9WPW10213953 Whirlpool Screw
10WP90767 Whirlpool Screw
11CORD, UNIVERSAL POWER
12W10846509 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WPW10285512 Whirlpool Cycle Switch
16W10694682 Whirlpool Wire Harness
17W11038628 Whirlpool Valve Assembly
18W10868094 Whirlpool Wire Harness
19W10786100 Whirlpool Wire Harness
20WPW10285511 Whirlpool Cycle Switch
