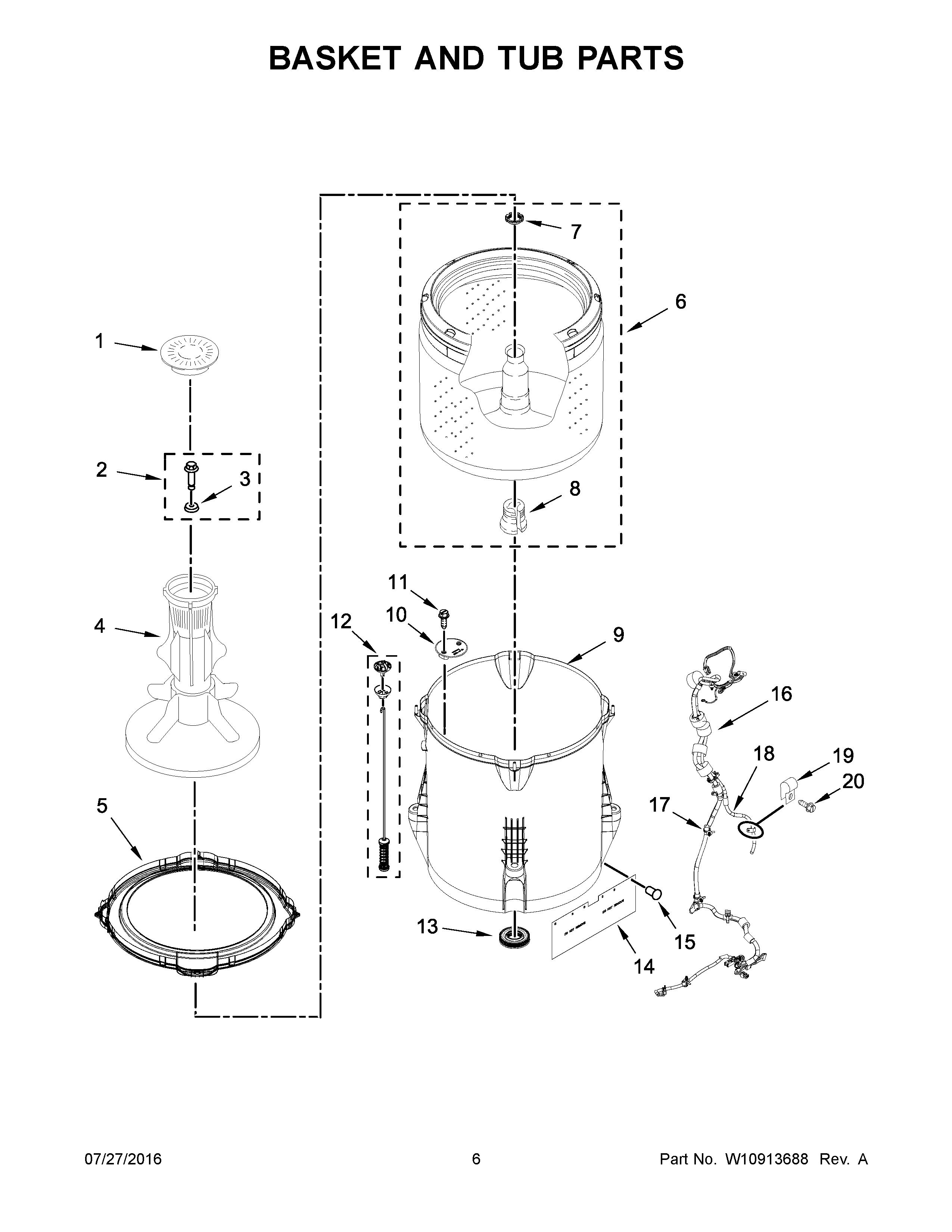

3DWTW4740YQ1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	WP3352483 Whirlpool Cap
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	AGITATOR
5	RING-TUB
6	W10738339 Whirlpool Basket Assembly
7	WP21366 Whirlpool Spanner Nut
8	WP389140 Whirlpool Drive Block or Bell
9	W10371566 Whirlpool Outer Tub
10	WPW10215093 Whirlpool Filter
11	WP8533928 Whirlpool Refrigerator Screw
12	W10780048 Whirlpool Washer Suspension Rod Assembly
13	W10324647 Whirlpool Seal Tub
14	W10339098 Whirlpool Shield
15	W10429200 Whirlpool Retainer
16	HARNESS, LOWER
17	WPW10298887 Whirlpool Wire Tie Assembly
18	WP353244 Whirlpool Hose
19	W10005430 Whirlpool Clamp
20	WPW10109200 Whirlpool Screw
