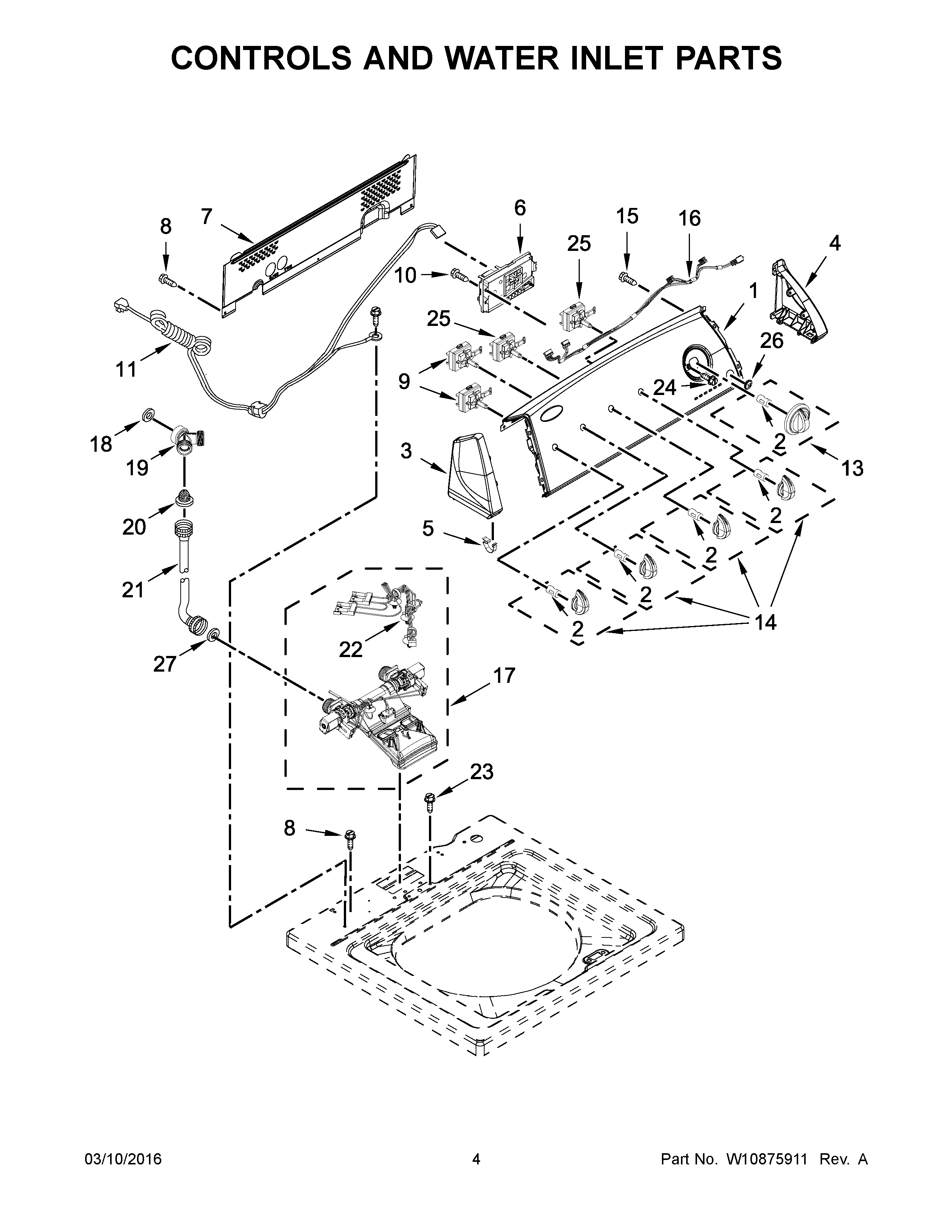

3DWTW4840YW1 03 – CONTROLS AND WATER INLET PARTS

3DWTW4840YW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

3DWTW4840YW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NI10A CORD LOCK
NI10A CORD ADAPTER (SOUTH AFRICA)
NICABINET (NOT A SERVICEABLE PART)
NIWPW10476820 Whirlpool Adapter
NIWPW10476822 Whirlpool Adapter
1WPW10365093 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10754630 Whirlpool Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285512 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11W10422755 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
153400073 Whirlpool Screw
16WPW10291176 Whirlpool Wire Harness
17WPW10683676 Whirlpool Valve
18WP3357450 Whirlpool Washer Assembly
19WPW10269488 Whirlpool Connector
20285452A Whirlpool Hose Seal and Screen
21WP89503 Whirlpool Washer Fill Hose
22W10876654 Whirlpool Wire Harness
23WP8281163 Whirlpool Refrigerator Screw
24WP3400818 Whirlpool Screw
25WPW10285511 Whirlpool Cycle Switch
26WPW10251309 Whirlpool Push Button
27WP16123 Whirlpool Washer
←ACQ052XJ0 03 – CABINET
DU1015XTXD0 12 – OPTIONAL PARTS (NOT INCLUDED)→
