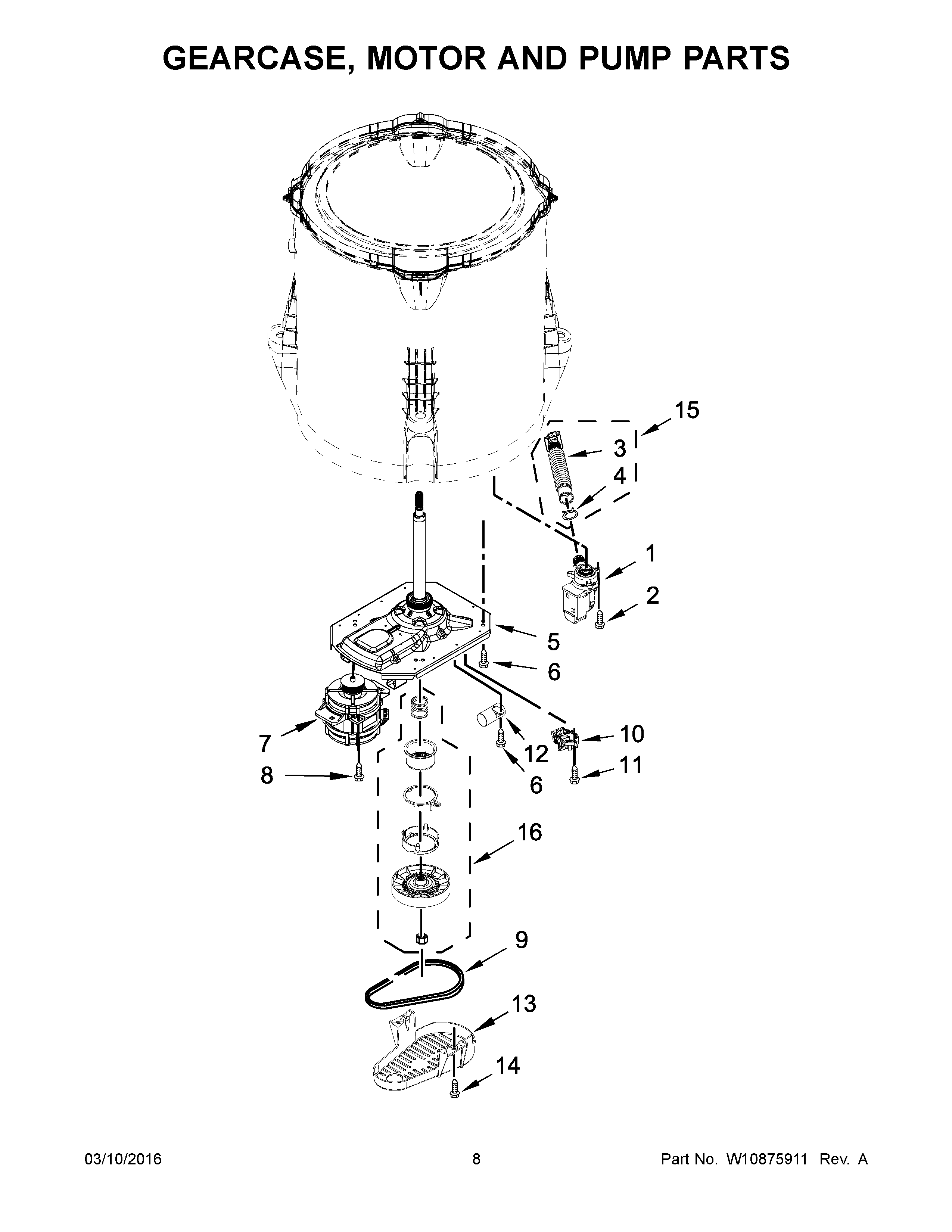

3DWTW4840YW1 05 – GEARCASE, MOTOR AND PUMP PARTS

3DWTW4840YW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

3DWTW4840YW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10292579 Whirlpool Water Pump
2WPW10004910 Whirlpool Screw
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W11039788 Whirlpool Motor Drive
8W11685857 Whirlpool Screw Assembly
9WPW10006388 Whirlpool Belt
10W11511138 Whirlpool Actuator
11W11596033 Whirlpool Microwave Screw
12W11205047 Whirlpool Capacitor Assembly
13WPW10427633 Whirlpool Belt Shield
14W11573574 Whirlpool Screw
15W10899966 Whirlpool Hose Assembly
16W10759993 Whirlpool Cam
