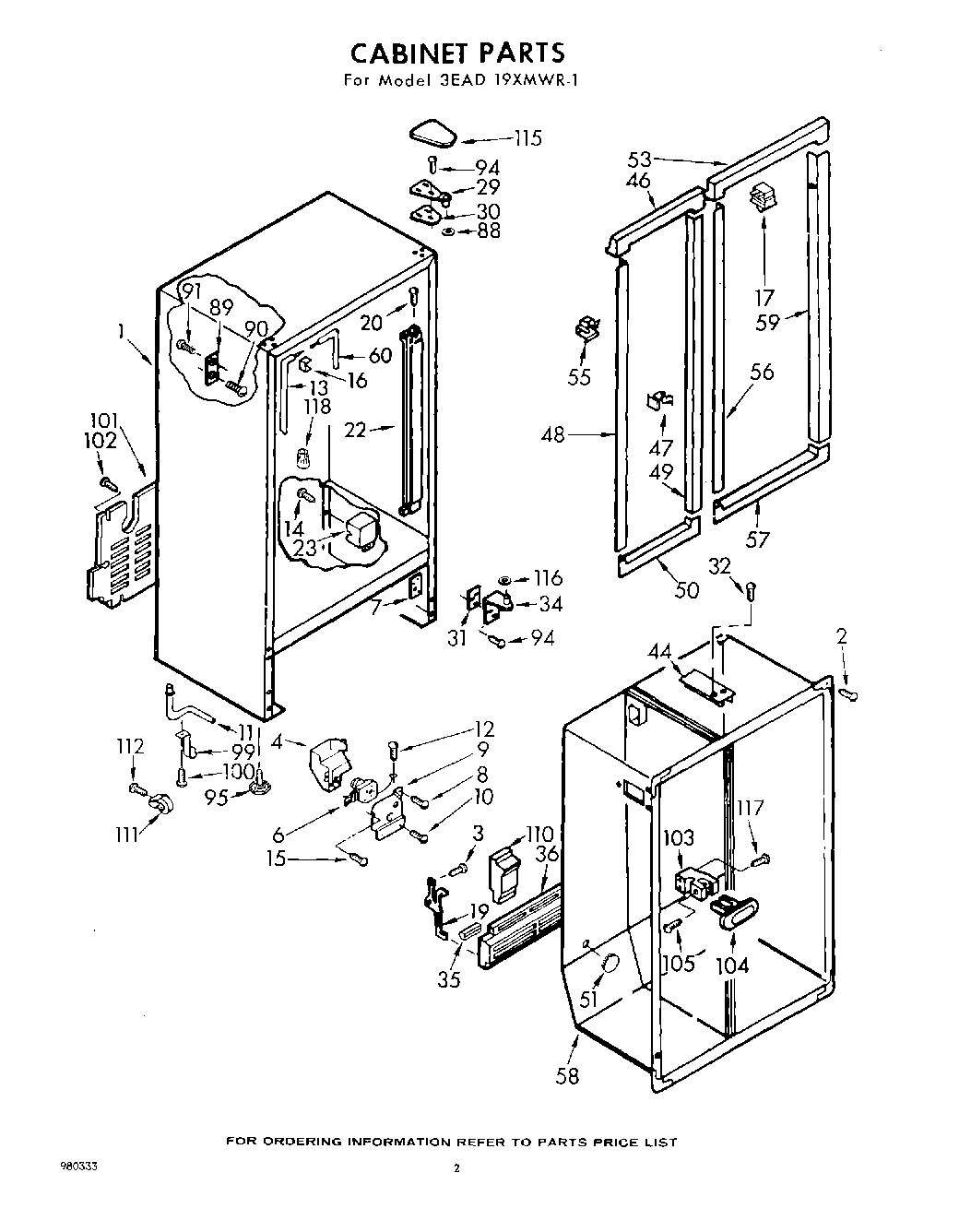

3EAD19XMWR1 02 – CABINET

3EAD19XMWR1 02 – CABINET

Written by

in

3EAD19XMWR1 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP488163 Whirlpool Refrigerator Screw
4	Guard, Timer
6	DEFROST, TIMER (8 HR.)
7	Tap Plate
8	Screw, 6-20 x 3/8
9	Plate, Timer
11	Extension, Drain Fitting
13	HEATER, STILE
14	WP488729 Whirlpool Refrigerator Door Screw
15	WP965173 Whirlpool Dishwasher Screw
16	Clip, Heater (2)
17	W11384469 Whirlpool Door Switch
19	WPL 844614
20	Screw, 8 x 3/8
20	WP308685 Whirlpool Microwave Screw
22	Center Rail & Bracket Assembly (Almond)
22	Center Rail & Bracket Assembly (Coffee)
22	Center Rail & Bracket Assembly (New Avocado)
22	Center Rail & Bracket Assembly (White)
22	CENTER RAIL & BRACKET (COPPERTONE)
22	CENTER RAIL & BRACKET (AVOCADO)
22	CENTER RAIL & BRACKET (HARVEST GOLD)
22	Center Rail & Bracket Assembly (Golden Harvest)
23	WPL 549947
29	Hinge, Top (2)
30	WPL 836151
31	Shim, Bottom Hinge
32	WP489069 Whirlpool Compactor Screw
34	Hinge (Bottom)
34	WPL 836687
35	Bumper, Grille
36	GRILLE, EXTERIOR (COPPERTONE)
36	GRILLE, EXTERIOR (AVOCADO)
36	GRILLE, EXTERIOR (HARVEST GOLD)
36	Exterior Grille (New Avocado)
36	Exterior Grille (Almond)
36	Exterior Grille (Golden Harvest)
36	Exterior Grille (Coffee)
36	Exterior Grille (White)
44	WPL 842435
46	WPL 843334
47	Clip, Wrapper (23)
48	WPL 836174
49	WPL 836108
50	WPL 836447
51	Hole, Plug
53	WPL 843335
55	Breaker, Clip
56	WPL 836213
57	WPL 836446
58	WPL ARI11745A4
59	WPL 842178
60	WPL 987220
88	WP487576 Whirlpool Washer
89	Strap, Ground
90	WP489128 Whirlpool Refrigerator Screw
91	SCREW
94	Screw (Repair)
94	WP999367 Whirlpool Refrigerator Screw
95	Leveler (2)
99	Cup, Drain Extension
100	Screw, 8-32 x 1/2
101	WPL 850457
103	WPL 836079
104	WPL 836080
105	Screw (2)
110	WPL 836372
111	WPW10250570 Whirlpool Refrigerator Cabinet Roller
112	WPL 488849
115	1119787 Whirlpool Refrigerator Hinge Cover
115	Hinge Cover (New Avocado)
115	Hinge, Cover (Coffee)
115	Hinge Cover (Golden Harvest)
115	COVER, HINGE (GOLD)
115	Cover, Hinge (Copper)
115	Cover, Hinge (Avocado)
116	WP487802 Whirlpool Refrigerator Washer
117	W11624204 Whirlpool Screw
118	Wire Connector
