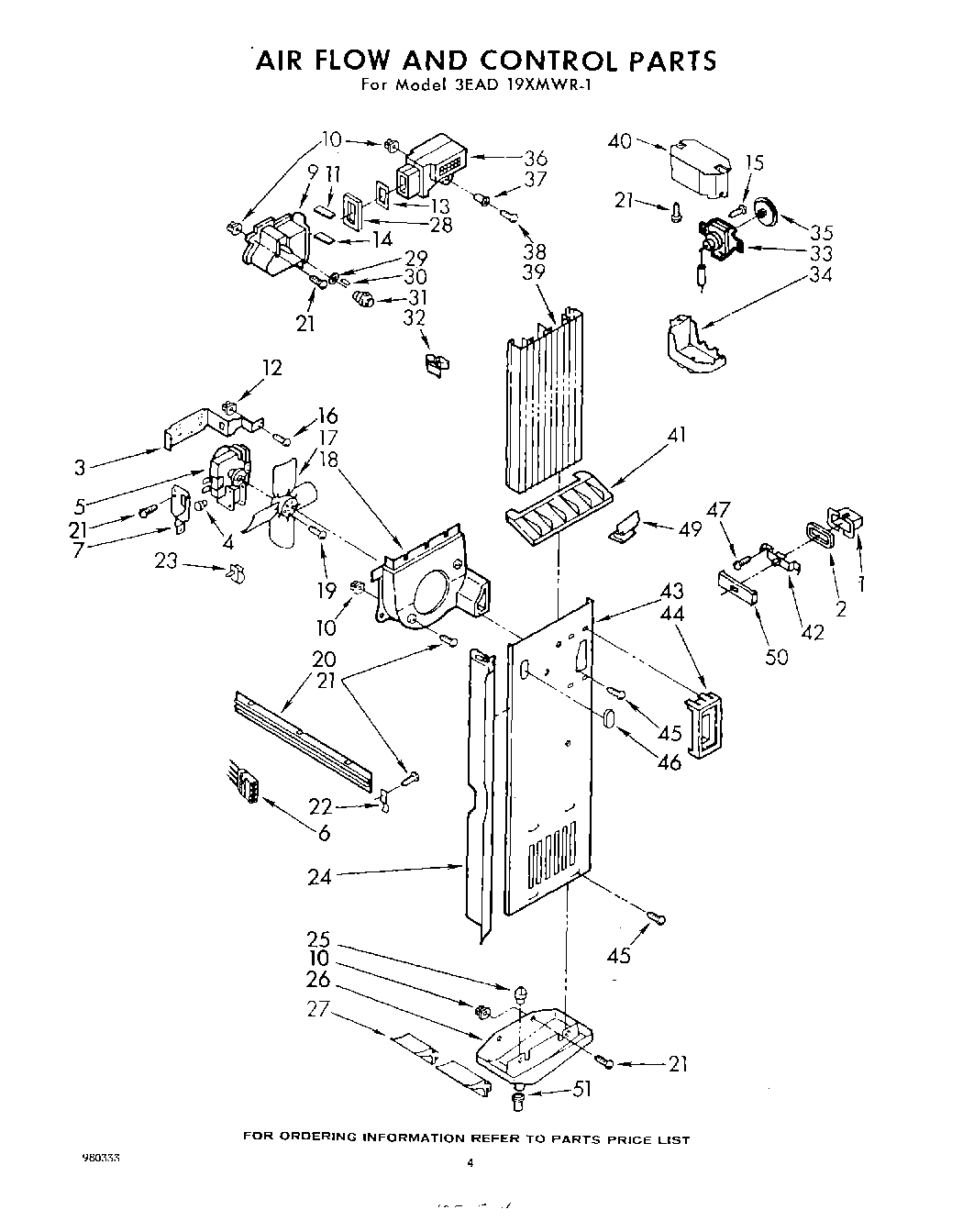

3EAD19XMWR1 03 – AIRFLOW AND CONTROL

Products

Position	Product
1	Container, Switch
2	Gasket, Container
3	Bracket, Fan Mounting (Single)
4	Grommet (3)
5	FAN MOTOR
6	Liner Wiring (Defrost Timer)
7	Fan, Bracket Double
9	Air Scoop Assembly
10	Grommet
11	GASKET, SHUT-OFF (TOP)
12	Screw Grommet
13	Gasket, Air Diffuser
14	GASKET, SHUT-OFF (BOTTOM)
15	Screw, 8-32 x 3/8
16	WP489069 Whirlpool Compactor Screw
17	FAN BLADE
18	SCROLL, FAN
19	WP487887 Whirlpool Refrigerator Screw
20	Cover, Exchanger
21	W11624204 Whirlpool Screw
22	WPL 836077
23	Fastener, Wire
24	Gasket (2)
25	Cap, Drain
26	Drain Pan
27	Gasket, Drain Pan
28	Gasket, Air Scoop
29	Retainer, Damper
30	Knob, Retainer
31	Control Knob
32	2215823 Whirlpool Refrigerator Clip
33	THERMOSTAT & BARRIER
34	COVER, THERMOSTAT
35	KNOB, THERMOSTAT
36	AIR DIFFUSER
37	836667 Whirlpool Refrigerator Spacer
38	Screw, 8 x 3/8 (2)
39	Duct, Air
40	BOX, THERMOSTAT
41	End Cap, Evaporator
42	BRACKET & SWITCH
43	Cover, Evaporator
44	Grille, Freezer
45	Screw, 8-15 x 1/2 (4)
46	Hole Plug
47	WP489128 Whirlpool Refrigerator Screw
49	BAFFLE, AIR
50	ESCUTCHEON, POWER SAVER
51	Fitting, Drain Pan
