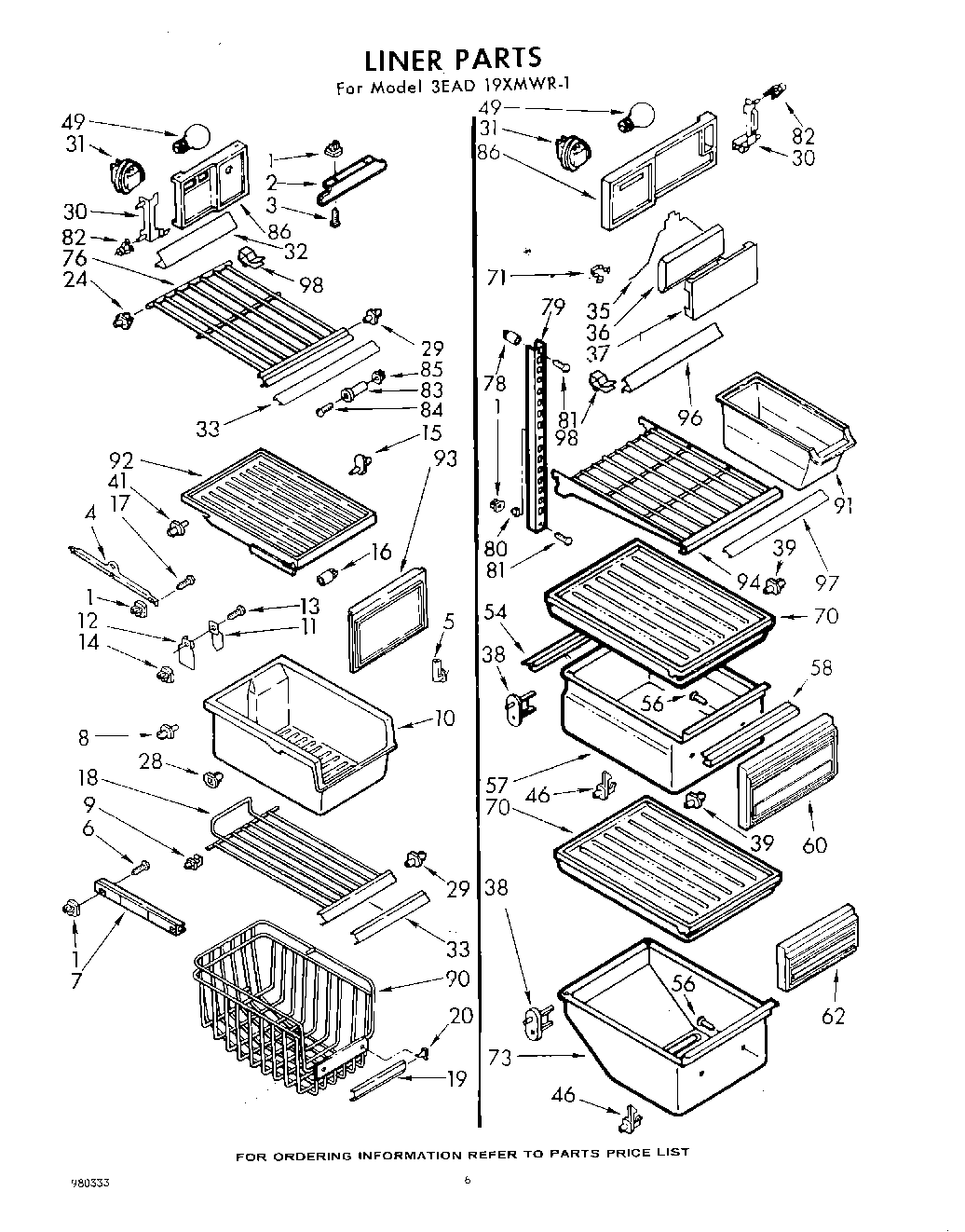

3EAD19XMWR1 04 – LINER

3EAD19XMWR1 04 – LINER

Written by

in

3EAD19XMWR1 04 – LINER

Products

Position	Product
1	Grommet
2	Baffle, Liner Top
3	WP489069 Whirlpool Compactor Screw
4	Slide, Freezer Bin
5	STUD, HOOK (2)
6	W11693756 Whirlpool Screw Assembly
7	Track, Shelf (R.S.)
7	Track, Shelf (L.S.)
8	Shelf, Stud
9	Shelf Support
10	PAN, ICE CUBE ((WHITE, AVOCADO, & NEW AVOCADO))
10	PAN, ICE CUBE ((COPPERTONE, COFFEE, ALMOND, HARVEST GOLD & GOLDEN HARV EST))
11	Support Clip
12	Screw Grommet
13	SCREW
14	xGrommet, Screw (2)
15	Shelf, Stud
16	Grommet
17	Screw, 8 x 1
18	SHELF, ICE CUBE PAN
19	TRIM, BASKET
20	CAP, BASKET TRIM (L.S.)
20	CAP, BASKET TRIM (R.S.)
24	Shelf Stud, Saddle
24	Shelf Stud Saddle (R.S.)
28	Retainer Stud
29	Shelf, Stud (2)
30	Support, Light Lens (R.S.)
30	Support, Light Lens (L.S.)
31	4387478 Whirlpool Refrigerator Light Socket
32	REFLECTOR, SHELF
33	TRIM, SHELF FRONT
35	RETAINER, FILTER
36	FILTER
37	COVER, FILTER
38	Shelf Stud (2)
39	Stud (2)
41	Stud, Shelf (2)
46	STUD, SHELF (2)
49	WP67002552 Whirlpool Refrigerator Light Bulb
54	GASKET, CRISPER (REAR)
56	Screw (Repair)
56	WP488729 Whirlpool Refrigerator Door Screw
57	Pan, Crisper
58	GASKET, CRISPER (FRONT)
60	COVER, PAN ((WHITE, AVOCADO & NEW AVOCADO))
60	COVER, PAN ((COPPERTONE, COFFEE, ALMOND, HARVEST GOLD & GOLDEN HARV EST))
62	WPL 849046
62	COVER, PAN ((COPPERTONE, COFFEE, ALMOND, HARVEST GOLD & GOLDEN HARV ES
70	WPL 836463
71	Speed Clip, Light Lens (3)
73	Pan (Meat)
76	WPL 843793
78	Screw, Grommet
79	WPL 653335
80	520965 Whirlpool Refrigerator Support
81	Screw, 8 x 1-1/4 (3)
82	Clip, Tubular
83	Stud
84	Screw
85	Screw Grommet
86	WPL 842392
86	WPL 844922
90	WPL 837247
91	WP982704 Whirlpool Refrigerator Container
92	WPL 848618
93	WPL 848617
93	WPL 849104
94	WPL 843778
96	WPL 843922
97	WPL 839577
98	WPL 843960
