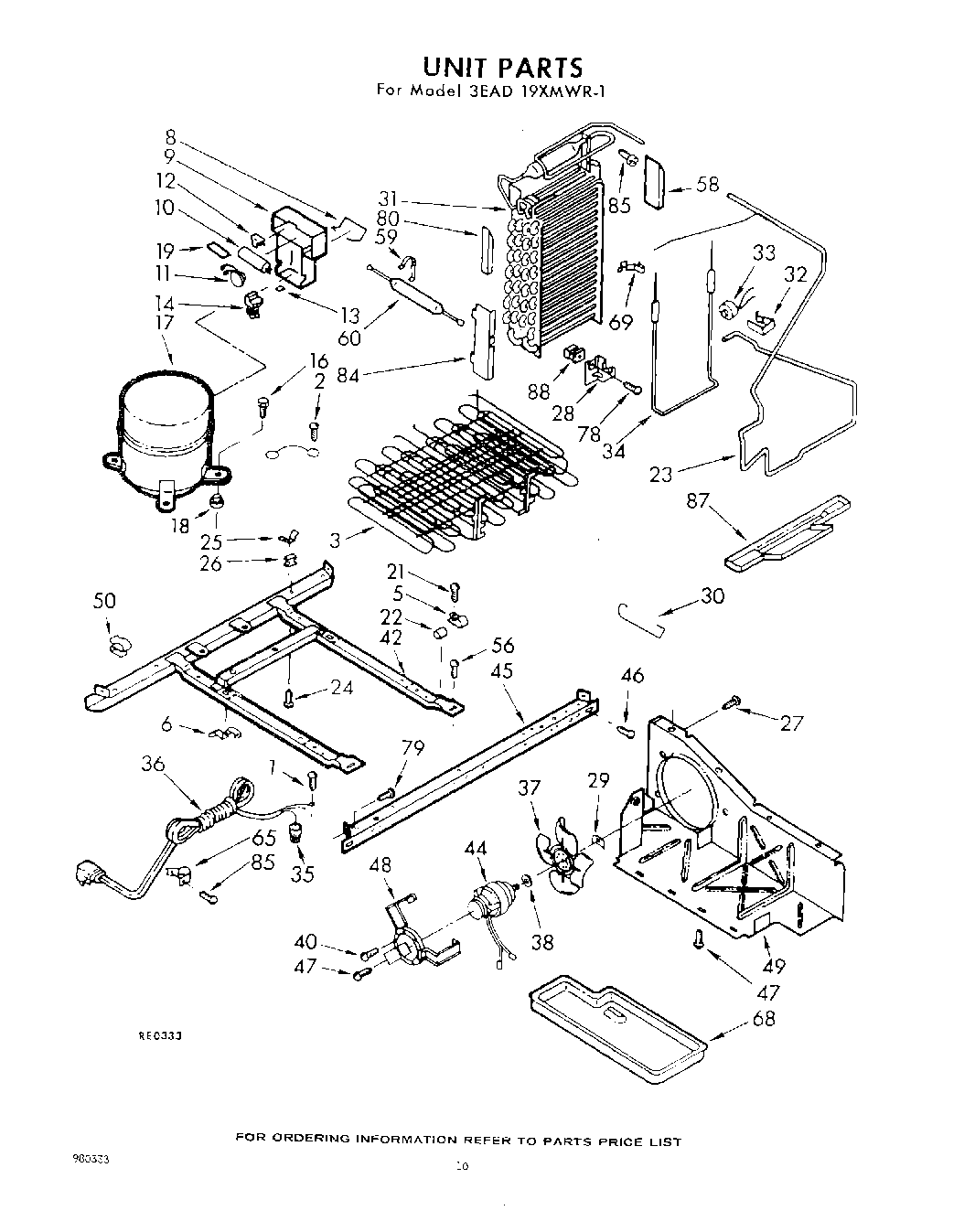

3EAD19XMWR1 06 – UNIT

Products

Position	Product
1	WP489128 Whirlpool Refrigerator Screw
2	303776 Whirlpool Dishwasher Screw
3	Condenser & Precooler Assembly
5	Clamp Tube
6	Clip (2)
8	Spring
9	CASE, RELAY
10	CAPACITOR
11	OVERLOAD
12	CLIP, CAPACITOR
13	Bumper
14	RELAY
16	Screw, 1/4-28 x 1“ (4)
17	COMPRESSOR (PRODUCTION NO. 994030)
18	Grommet (4)
19	PAD, RUBBER
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Dampener (2)
23	HEAT EXCHANGER
24	W11693756 Whirlpool Screw Assembly
25	Clamp (4)
26	Grommet (4)
27	Screw, 8-32 x 1/2
28	Support, Evaporator
29	WP486692 Whirlpool Refrigerator Nut
30	Guard, Fan
31	Evaporator
32	Clamp
33	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	HEATER
35	Wire Connector
36	CORD, SERVICE
37	Fan, Blade
38	WASHER
40	Screw, 8-36 x 3/8 (3)
42	Frame
44	MOTOR, FAN (ALTERNATE)
44	MOTOR, FAN
45	Rail, Front
46	489340 Whirlpool Refrigerator Screw
47	Screw, 8 x 3/8
48	Bracket, Motor
49	Baffle
50	Clip, Wire (2)
56	Screw, 1/4-28 x 1/2 (2)
58	Air Baffle, Evaporator
59	Clamp
60	W10843121 Whirlpool Refrigerator Tube
65	549193 Whirlpool Refrigerator Power Clamp
68	WPL 842041
69	Heater, Clamp (4)
78	SCREW
79	WP488729 Whirlpool Refrigerator Door Screw
80	Baffle, Air
84	Shield, Heat (2)
85	W11624204 Whirlpool Screw
87	PAN, DRIP
88	978027 Whirlpool Refrigerator Primary Valve
88	VALVE, ACCESS (1/2“)
88	VALVE, ACCESS (5/8“)
88	WP978025 Whirlpool Refrigerator Valve
88	Screw Grommet
88	978030 Whirlpool Refrigerator Valve
88	978026 Whirlpool Refrigerator Primary Valve
