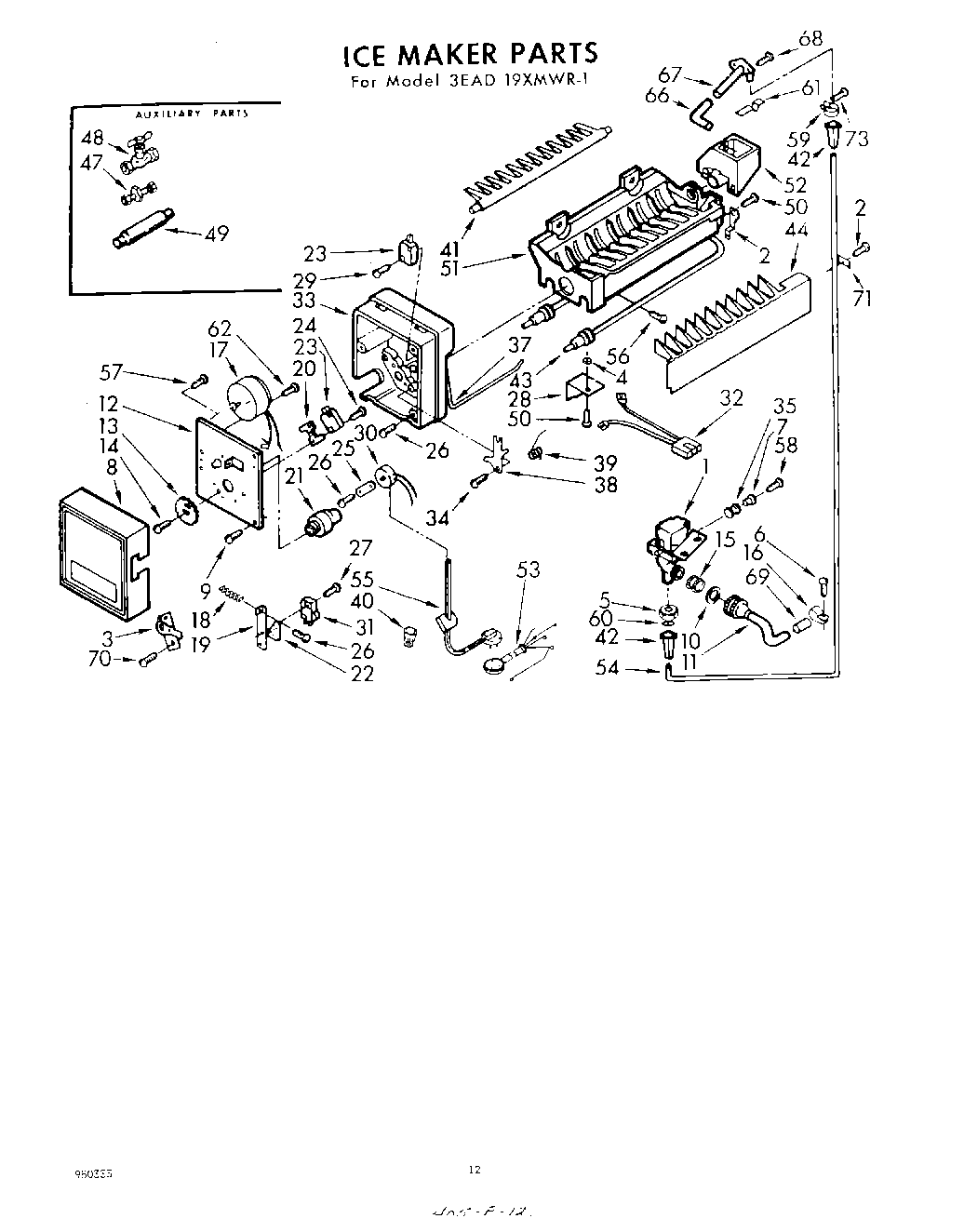

3EAD19XMWR1 07 – ICE MAKER

Products

Position	Product
1	Valve
2	Bracket, Shut-Off Arm
3	LEVER & PLATE ASSEMBLY
4	F
5	WP627018 Whirlpool Refrigerator Nut
6	W11624204 Whirlpool Screw
7	Spacer (2)
8	COVER
9	WP488787 Whirlpool Refrigerator Screw
10	WP16123 Whirlpool Washer
11	Tube, Inlet
12	Plate, Mounting
13	Gear
14	SCREW
15	Nut, Valve
16	Clamp Tube
17	Motor
18	Spring
19	Plate, Valve Switch
20	Spacer, Switch (2)
21	Cam
22	Insulator
23	SWITCH, S.P.D.T. (ALTERNATE)
23	Switch, S.P.D.T. (2)
25	Clamp, Thermostat
26	Screw, 8-32 x 1
27	Screw
28	WP2256087 Whirlpool Refrigerator Bracket
29	Screw, 4-24 x 3/4
30	THERMOSTAT (ALTERNATE)
30	Thermostat
31	Switch, S.P.S.T.
31	SWITCH, S.P.S.T. (ALTERNATE)
32	WPL 548734
33	Support
34	Screw, Shoulder
35	Grommet (2)
37	Arm, Shut-Off
38	Lever, Arm
39	Spring, Shut-Off Arm
40	Wire Connector
41	Ejector
42	4387491 Whirlpool Refrigerator Insert
43	Heater, Mold
44	Stripper, Ice
47	Union, 1/4“ x 3/16“
48	Valve, Shut-Off
49	Filter Kit
50	WP489128 Whirlpool Refrigerator Screw
51	Mold & Heater Assembly (Includes Illus. 43)
52	Bearing & Inlet
53	Wiring, Ice Maker
54	W10823511 Whirlpool Refrigerator Water Tube
55	Wire Harness
56	SCREW
57	Screw, Ground
58	SCREW
59	WP488878 Whirlpool Refrigerator Tube Clamp
60	“O“ Ring Seal (4)
61	Clip
62	Screw, 4-40 x 1
66	xWater Inlet Tube
67	Fitting, Water Tube
68	WP98165 Whirlpool Screw
69	WP2158826 Whirlpool Refrigerator Dampener
70	Screw (Use W/Motor 627106)
71	Clamp, Water Line (2)
73	WP965173 Whirlpool Dishwasher Screw
